Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZXA10 F643 ONU |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | Fiber Fusion Splicer, ZTE OUN | Product Name: | ZTE F643 GPON ONT ONU Device |
|---|---|---|---|
| Application: | FTTH FTTB FTTX FTTC Network Access Equiment | Model Name: | ZXA10 F643 ONU |
| Brand Name:: | ZTE | Port: | Shenzhen |

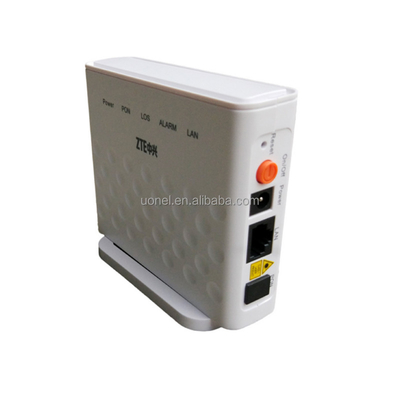

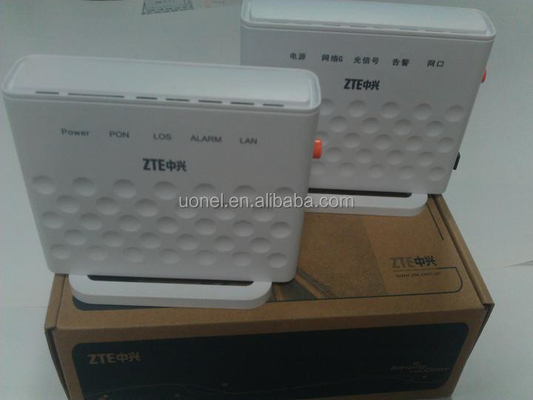

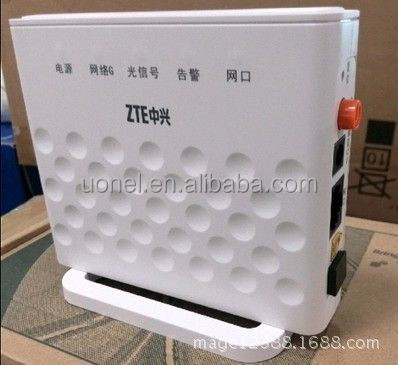

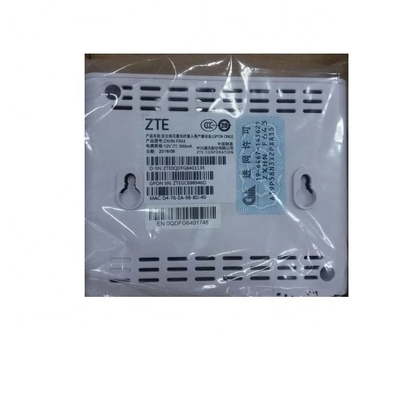

ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
| Model | Configuration | Dimension/pcs | ||||
| LAN | Telephone | Wifi | PPPOE | Firmware | ||
| F643(v6.0) | 1GE | no | no | no | English | 167*140*58mm/0.28kgs |
| Remarks | Replace F601(v6.0) | |||||
Application and Advantage:
| ZXHN F643 is a GPON Optical Network Terminal designed for FTTH. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage. |
The specification of F643 (v6.0):
| GPON Interface | Optical port: 1 x GPON interface (SC/PC) Transmission Distance: 0 ~ 20km Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream |
| User Network Interface | 1 x10/100/1000Base-T Half/full duplex; Auto MDI/MDIX; Auto negotiation |
| Optical Module | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm Receiving Sensitivity: -28dBm Transmitting Optical Power: 0.5~5dBm |
| Main Function | Supported service: Internet, IPTV VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 256 Multicast: IGMP v1/v2/v3 Snooping Multicast group: 256 QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;egress shaping Management: local web management, OMCI |
| Physical Performance | Power consumption: <3W Working temperature: 0℃ ~ 40℃ Working humidity: 5% ~ 95% Power supply: 12V DC Mounting mode: Desktop/Wall mounting The setup interface is in English language. |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
