Name: ZXDU68 B301 ZXEPS R4850F1 CSU602A ZXDU68 B301 V6.0
Brand: Uonel Co.Limtied
SKU: CSU602A
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Application: ZXEPS R4850F1 CSU602A

Model Name: ZXDU68 B301

Brand Name:: ZTE

Port: Shenzhen

Basic Infomation

Place of Origin: China

Brand Name: ZTE

Certification: 0

Model Number: CSU602A

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union,

Supply Ability: 200 Piece/Pieces per Week

Gallery

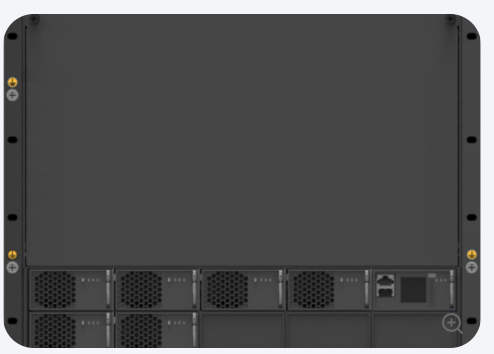

ZXDU68 B301 ZXEPS R4850F1 CSU602A ZXDU68 B301 V6.0

Product Description

Model	Parameter(Operator)	Parameter(Enterprise)
Model Type	ZXDU68 B301 V6.0
Rectifier module	ZXEPS R4850F1
CSU module	CSU602A
AC input
Input type	220/380VAC, three-phase five-wire (L1/L2/L3/N/PE)
Input voltage range	80VAC~300VAC
Frequency	45~66Hz, 50/60Hz
Input power factor	≥0.99 (50%-100% load)
AC input	1 × 63 A/3P
AC output
Option 1	including one AC output circuit breaker and one three-hole socket
Option 2	including one AC output circuit breaker and Neutral wire connection terminal
AC SPD	Class C, Imax=40kA(8/20μS)
DC output
Output power	Maximum 18kW
Output voltage	-53.5 V (-42V ~ -59.5V adjustable)
Module capacity	6 PCS
Module efficiency	Rectifier: ≥95.5% (under rated Load), Peak efficiency is 97%
Load distribution	Standard configuration 12P, maximum 20P
Battery distribution	4×125A/1P MCBs
Operation environment
Operation temperature	-40℃~+70℃,
Storage temperature	-45℃~+75℃
Humidity	5% ~ 95%
Altitude	0 to 2000 m: 100% output power; 2000 to 3000 m: The power derating percentage is 1% when the altitude increases by 100 m. Customer shall use system under derating consideration.
Structure
Dimension	3mm × 482 mm × 360 mm(H × W × D)
Weight	Chassis weight: 20.5kg (not including rectifiers)
Standard
Safety	IEC62368; GB4943
EMC	IEC61000
