HG8245 Huawei Access Network

Original GPON English Version Firmware FTTH HG8245

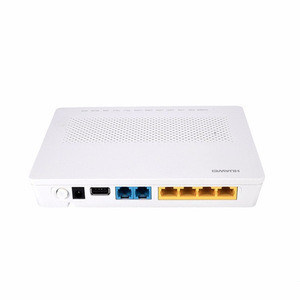

The HG8240/HG8245/HG8247 is an indoor optical network terminal (ONT) designed for home users and small office and home office (SOHO) users. Its upper shell adopts the natural heat dissipation material, and its optical port adopts the dust-proof design with a rubber plug. The HG8240/HG8245/HG8247 is eye-pleasing and energy-efficient. It can be deployed on a workbench or mounted on a wall, meeting users' deployment requirements in different scenarios.
By using the gigabit-capable passive optical network (GPON) technology, the HG8240/HG8245/HG8247 provides a high-speed data channel through a single optical fiber with an upstream rate of 1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. In this way, you can enjoy quality high-speed data service, voice service, and video service. In addition, the HG8245 and HG8247 provide reliable wireless access service, and convenient storage and file sharing services within a home network.
As an ONT, the HG8240/HG8245/HG8247 provides convenient and efficient remote management functions. The HG8240/HG8245/HG8247 supports the TR-069 and ONT Management and Control Interface (OMCI) protocols and manages all home terminals in a unified manner, thus implementing remote fault diagnosis, service provisioning, and performance statistics measurement.

Huawei GPON ONT HG8245 GPON features
Class B+ optical module
Security authentication mode: SN, password or SN+password
Upstream/downstream FEC

Voice features

SIP and H.248 protocols

Media stream and signaling stream separation

Multicast features
IGMP V2&V3 snooping/IGMP proxy;

Wi-Fi features
802.11b/g/n, certified by the Wi-Fi Alliance

Routing features
NAT function
Internet, IPTV and VoIP services are automatically bound to ONT ports
Virtual server, port trigger, DMZ, and DDNS

Maintenance features
Local management using Web and  remote management using TR069
and OMCI
Optical power monitoring
802.1ag Ethernet OAM
Loop-line test of POTS ports, call emulation and PPPoE dialup emulation

Reliability features
Dual systems for software z protection
Type B protection and rogue ONT detection
Lithium battery backup and backup battery monitoring
