ZTE ZXDU68T301. ZTE indoor switch power supply, ZTE communication power supply, ZTE integrated power cabinet 48V 300A
Product Description
ZTE ZXDU68T301. ZTE indoor switch power supply, ZTE communication power supply, ZTE integrated power cabinet 48V 300A
Operating temperature: -40℃ ~ +55℃;
Storage temperature: -40℃ ~ +70℃;
Relative humidity: 10%~90%;
Atmospheric pressure: 70 kPa ~ 106 kPa;
Site requirements: free of conductive dust and corrosive gas, free of hazards, vibration and jolting, with floor inclination ≤5°;
Waterproof and dustproof rating: IP55;
ZTE ZXDU68 T301 High-Efficiency Communication Power Supply In-Stock Usage Instructions
The AC input adopts a three-phase five-wire system (L1/L2/L3/N/PE), with a rated phase voltage of 220V
The rated DC output voltage is –53.5V, with an adjustable range of –42V to –58V.
Equipped with six ZX D2400 rectifiers in full configuration, the system delivers a maximum output power of 34,800W
The indoor cabinet measures 1600mm*600mm*400mm. A top cover or base with a height of 400mm can be optionally added. A dust cover component is installed on the cabinet's top
Rectifier ZXD2400 Switching Rectifier 2-6 units
1 monitoring unit
AC Surge Protection Level C
DC emergency lighting is an optional configuration, with a 1*16A/1P circuit breaker
DC Surge Protection 15kA DC Surge Protector
Overall Configuration of ZTE ZXDU68 T301 System
The ZXDU68T301 system consists of an AC power distribution unit, a DC power distribution unit, a monitoring unit, a ZXD2400 switch rectifier, and a battery. Except for the battery, all other system components are integrated within the ZXDU68T601 system cabinet.

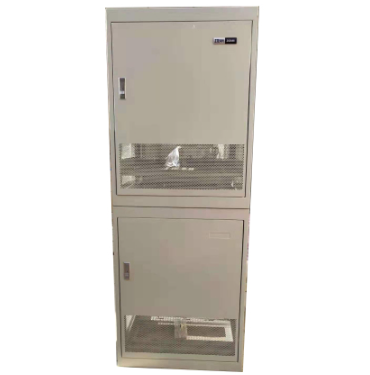

ZTE ZXDU68 T301, ZTE T301 System Cabinet
The cabinet height is 1600mm. With the addition of a 400mm-high top cover or base, the total height reaches 2000mm (the top cover and base are optional accessories).
The top of the cabinet is equipped with a dust cover, which is assembled from multiple dust cover units.
Four cover plates are installed at the rear of the cabinet. Heat dissipation vents are distributed on both the cover plates and the front door of the cabinet.
