Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZXA10 F600 ONU |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZXA10 F600 GPON ONU | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Model Name: | ZXA10 F600 ONU | Type: | ZTE OUN |
| Brand Name:: | ZTE | Port: | Shenzhen |

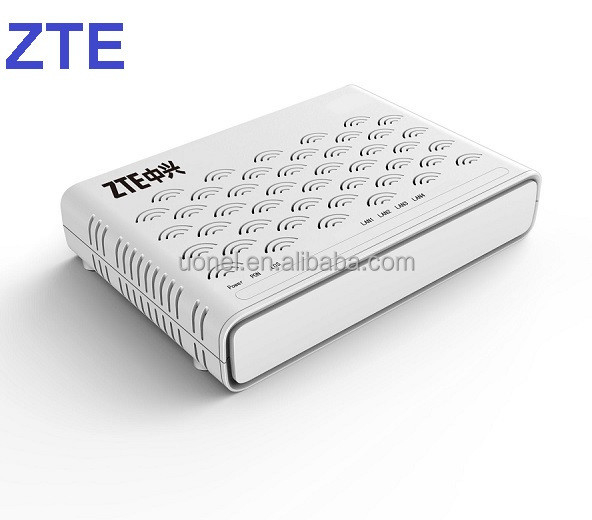

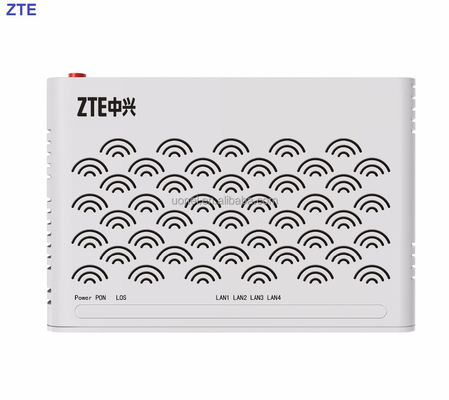

ZXHN F600 is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colorful, individualized, convenient and comfortable services including video (IPTV) and high speed internet access. It has a small, smart appearance and green, energy-saving advantage.
| GPON Interface | Optical port: 1 x GPON interface (SC/PC) |
| Transmission Distance: 0 ~ 20km | |
| Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream | |

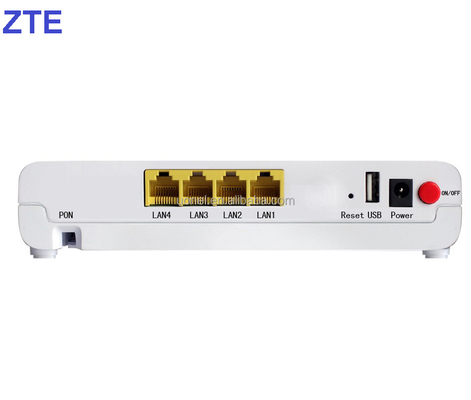

| User Network Interface | 4 x10/100/1000Base-T |
| Half/full duplex; Auto MDI/MDIX; Auto negotiation | |
| Optical Module | Receiving: 1480~1500 nm |
| Transmitting: 1290~1330 nm | |
| Receiving Sensitivity: -28dBm | |
| Transmitting Optical Power: 0.5~5dBm | |
| Main Function | Supported service: Internet, IPTV |
| GPON: 8 T-CONTs, 32 GEM Ports | |
| VLAN: 802.1Q, 802.1P, 802.1ad | |
| MAC address table: 256 | |
| Multicast: IGMP v1/v2/v3 Snooping | |
| Multicast group: 256 | |
| QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;egress shaping | |
| Management: local web management, OMCI | |
| Physical Performance | Power consumption: <6W |
| Dimensions: 199mm(W) x 35mm(H) x150mm(D) | |
| Working temperature: 0℃ ~ 40℃ | |
| Working humidity: 5% ~ 95% | |
| Weight: about 260g | |
| Power supply: 12V DC | |
| Mounting mode: Desktop/Wall mounting | |
| Supports hidden and coiled fiber |
