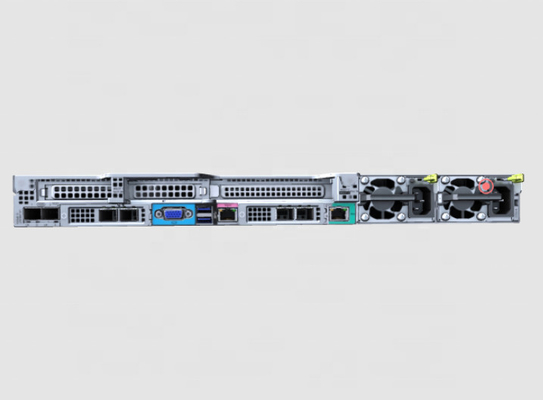

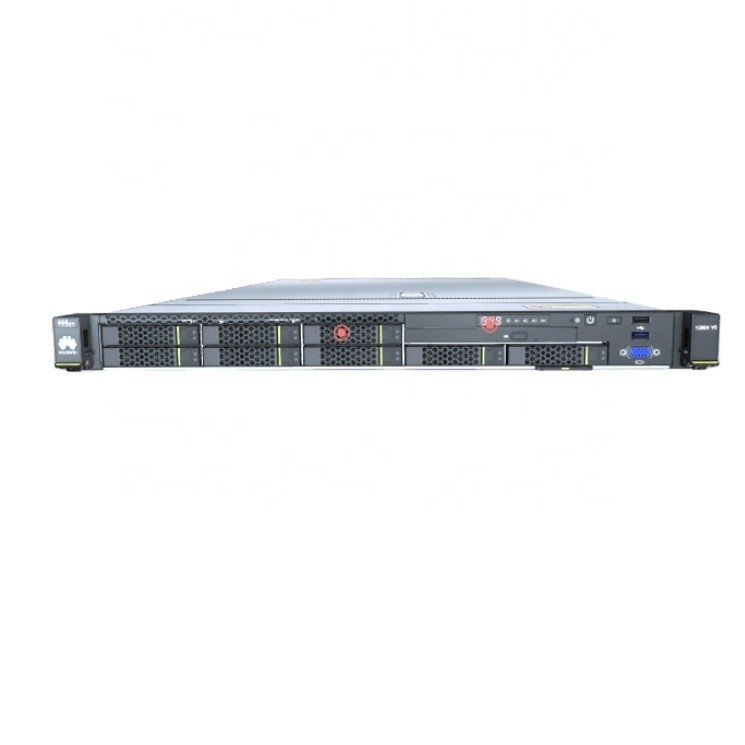

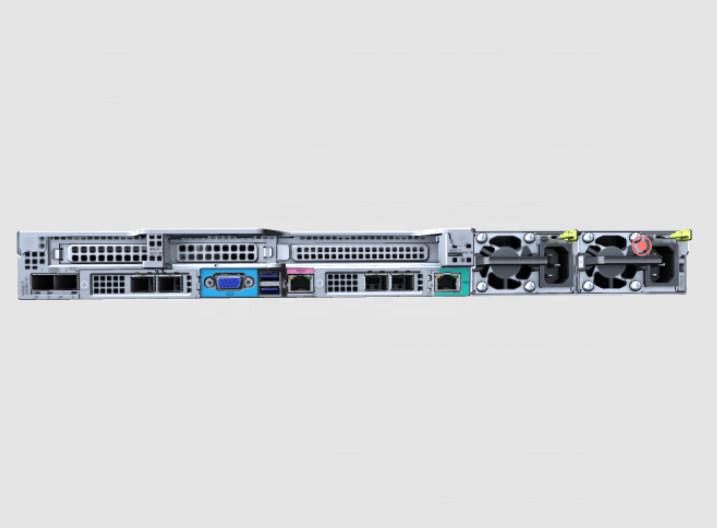

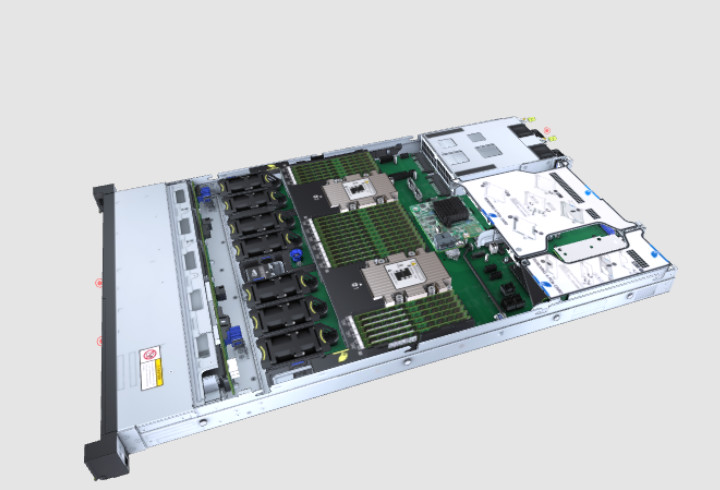

FusionServer Pro 1288X V5 Rack Server

Name: FusionServer Pro 1288X V5 Rack Server
Brand: Huawei
SKU: 1288X V5
Availability: InStock
ISBN: 14200601

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	1288X V5

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Application:	Enterprise Network	Product Name:	1288X V5
Port:	HongKong

FusionServer Pro 1288X V5 Rack Server

Specifications

Model	FusionServer Pro 1288X V5
Form Factor	1U rack server
Processors	1 or 2 x 1st Generation Intel® Xeon® Scalable Processors (3100/4100/5100/6100/8100 series), up to 205 W 1 or 2 x 2nd Generation Intel® Xeon® Scalable Processors (3200/4200/5200/6200/8200 series), up to 205 W
Memory	24 DDR4 DIMM slots, up to 2933 MT/s
Local storage	• 8 x 2.5'' SAS/SATA HDDs or SSDs • Flash storage: 2 M.2 SSDs
RAID support	• RAID 0, 1, 10, 1E, 5, 50, 6, or 60 • Configured with a supercapacitor for cache power-off protection • Supports RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network	LOM: 2 x 10GE and one OCP 2.0 slot
PCIe Expansion	Up to 5 PCIe 3.0 slots, including 1 for RAID controller card and 1 for OCP 2.0 mezzanine card
Heterogeneous accelerator cards	2 single-slot HHHL GPU heterogeneous accelerator cards
Fan Modules	7 hot-swappable counter-rotating fan modules, supporting N+1 redundancy
Power supply unit	2 hot-swappable PSUs supporting 1+1 redundancy and the following configuration options: • 550 W AC Platinum PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs: 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC); 1000 W (input: 100 V to 127 V AC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
Management	• Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features, including fault diagnosis, automated O&M, and hardware security hardening. • iBMC supports standard interfaces, such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports CD-free deployment and the Agentless feature to simplify management. • Huawei's management software, such as eSight and FusionDirector, is configurable on the 1288X V5 to provide advanced management features, including stateless computing, batch OS deployment, and automatic firmware upgrade, enabling intelligent and automated management throughout the lifecycle.
Operation Systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and security front panel
Operating Temperature	5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE A3 and A4
Certification	CE, UL, FCC, CCC, and RoHS, etc.
Installation suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 2.5'' hard drives: 43 mm x 447 mm x 708 mm (1.70 in. x 17.60 in. x 29.45 in.)
