02310KPU Blade Server System

02310KPU Blade Server System

  • 02310KPU Blade Server System
02310KPU Blade Server System
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: E6000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Blade Max Memory Capacity: 12GB
Max Processors: 2 Processor Type: Xeon
Dimensions (H X W X D): 447 X 810 X 353 Mm (8 U)
High Light:

02310KPU Blade Server System


02310KPU Huawei Blade Server


02310KPU Blade Server

02310KPU Blade server E6000 Universal Hard Disk N0SASHD07


N0SASHD07 02310KPU General-purpose hard disk -600GB-SAS 6.0Gb / s-10000rpm-2.5 "-16MB and above - Hot Swap - Built-in - handle

More Items:

BC1MSRSCR803 02310LBB Universal Hard Disk - 500GB-SATA-7200rpm-2.5 "-64M- Hot Swap - Built-In - Handle

BC1MSRSCR804 02310LAY Universal Hard Disk - 1000GB-SATA-7200rpm-2.5 "-64M-Hot Swap-Built-In-Handle

BC1MSRSCR807 02310LHE Universal hard disk -146GB-SAS-15000rpm-2.5 "-64MB-Hot-swappable-built-in-handle

N0SASHD06 02310KPR Universal hard disk -300GB-SAS-10000rpm-2.5 "-16M-hot swap - built-in - handle

BC1MSRSCR821 02310MMV General-purpose hard disk-300GB-SAS 6Gb / s-15000rpm-2.5 "-64M-Hot Swap-Built-in-handle

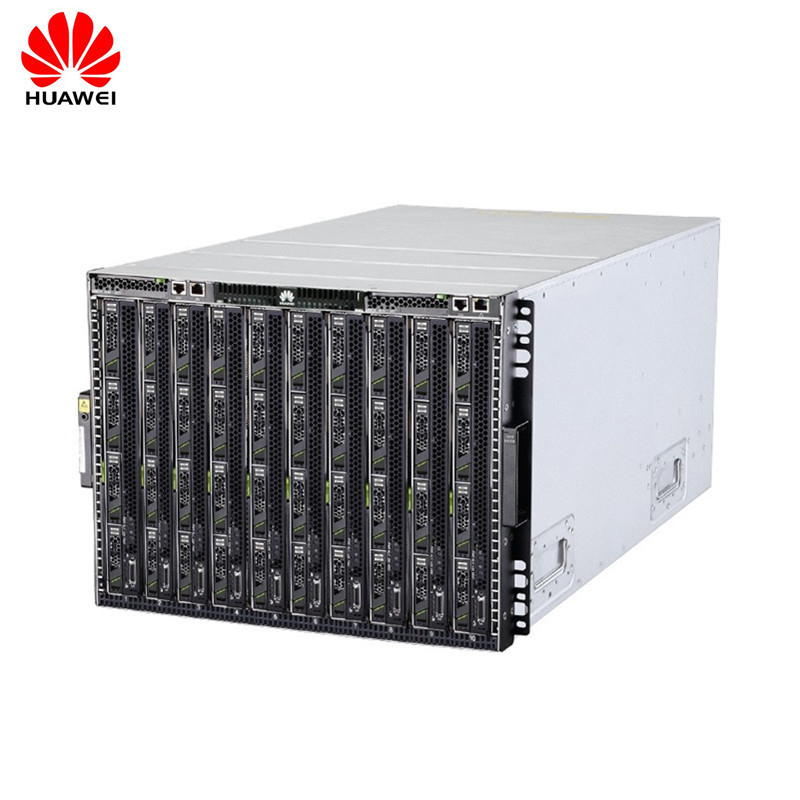

The E6000 chassis is 8 U high and features an optimized layout structure to maximally use space. It houses 10 blade servers and redundant PSUs, heat dissipation modules, management modules, and switch modules. The E6000 chassis can be installed in a standard 19-inch cabinet at a depth of at least 1000 mm. Two types of E6000 chassises are provided: AC and DC.



Dimensions (W x D x H)

447 mm x 810 mm x 353 mm (8 U) (17.60 in. x 31.89 in. x 13.90 in.)

Number of blade slots

10 slots for Huawei's BH series blade servers

Number of switch module slots

6 slots for Huawei switch modules. Modules supported as follows:

NX910 GE straight through module

NX120 4Gb FC switching module

NX112 10GE upstream switching module

NX113 10GE upstream switching module

Number of PSU slots

6 slots for 1600 W AC PSUs or 1300 W -48 V DC PSUs for hot swap

Supports N+N and N+M redundancy modes

Number of fan module slots

9 slots for hot-swappable fan modules in N+1 redundancy mode

Number of management module slots

2 slots for independent management modules

Supports IPMI 2.0, SOL, SSL, and SSH protocols

Supports CLI, IPMITools, RMCP+, and web for management

Power supply

110 V AC/220 V AC, or -48 V DC


CE, FCC, GOST, RoHS, etc.



Optimized Architecture and Outstanding Performance
*  Provides 8 U space for 10 blade servers and optimized layout for fans, PSUs, switch modules, and management modules. The architecture meets single-node computing density and power consumption balance requirements, and maintains an excellent space balance in a fully-configured 42 U cabinet.
*  Supports the BH620 blade server, and the BH620 V2, BH621 V2, and BH622 V2 blade servers with Intel® Xeon® E5 series CPUs to meet low-end, mid-range, and high-end customer requirements.
*  Supports up to six GE, FC switch or straight through modules.

High Efficiency and Energy-Saving
*  Uses a cost-effective AC/DC or DC/DC converter to supply 12 V DC power and achieve a power conversion efficiency of up to 92% to reduce losses from power conversion.
*  Supports energy-saving technologies, such as power capping, power alternate hibernation, and intelligent fan speed adjustment by area.
*  Adopts dedicated system air ducts and centralized heat dissipation design to improve dissipation efficiency.

Stable Operation Thanks to High Reliability
*  Uses N+1 redundant fans and N+N redundant management modules, PSUs, and switch modules; supports load balancing; provides seamless failover.
*  Prevents single point failures and uses a passive backplane to improve system reliability.
*  Uses carrier-class design, manufacturing process, and components to ensure high reliability.

Easy Maintenance and Management
*  Supports hot swap for all FRUs.
*  Supports IPMI 2.0 specifications to monitor hardware operations and record and query alarms and logs.
*  Supports SOL, KVM over IP, Web UI, and virtual media.
*  Supports a variety of protocols including the SNMP v3, SNMP Trap v1, SSL, SSH, RMCP, and RMCP+.
*  Uses Zero Touch-based remote maintenance for startup, shutdown, and reset to reduce O&M costs.
