FusionServer Pro 5288 V5 Rack Server

Name: FusionServer Pro 5288 V5 Rack Server
Brand: Huawei
SKU: 5288 V5
Availability: InStock
ISBN: 14200600

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	5288 V5

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Application:	Enterprise Network	Product Name:	5288 V5
Port:	HongKong

UONEL CO LIMITED

Contact person:Natasha

Mobile/Whatsapp/Skype/Wechat:+86 13798264392

Website:www.uonel.com

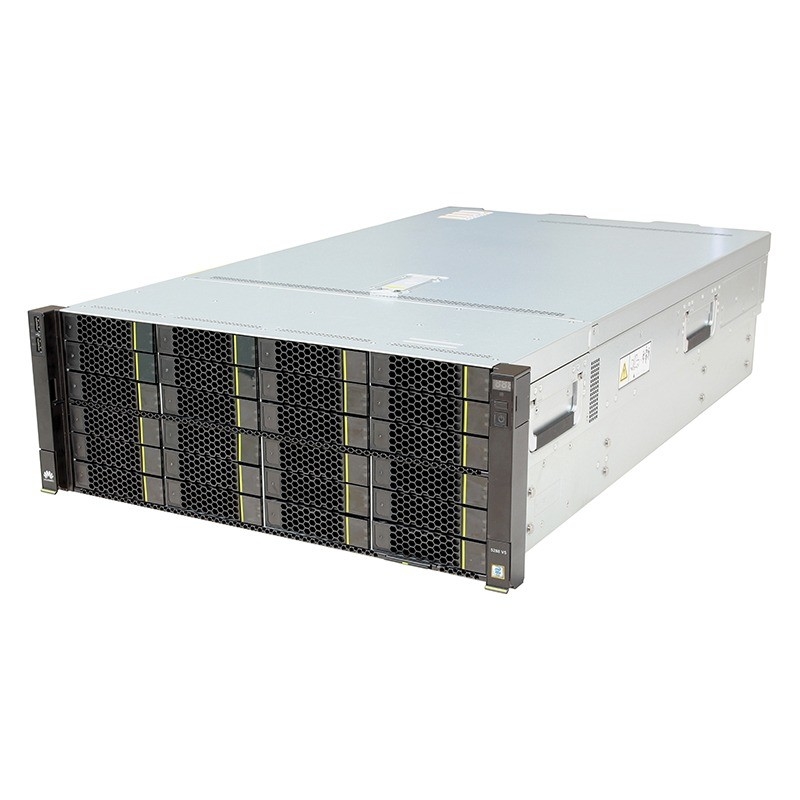

FusionServer Pro 5288 V5 Rack Server

FusionServer Pro 5288 V5 is a 4U, 2-socket rack server, applicable to services such as tiered storage of hot, warm, and cold data, and historical data archiving. With high efficiency design, the server ensures excellent computing performance and provides flexible and ultra-large local storage scalability to reduce data storage costs.

The 4U server can be configured with two Intel^® Xeon^® Scalable processors, 24 DDR4 DIMMs , and 44 x 3.5-inch plus 4 x 2.5-inch SAS/SATA disks for local storage, the FusionServer Pro 5288 V5 supports a maximum of eight NVMe SSDs. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates ’s eSight software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

Packaging & Shipping

Our Services

100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Specifications

Model	FusionServer Pro 5288 V5
Form Factor	4U rack server
Processors	1 or 2 1st Generation Intel^® Xeon^® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel^® Xeon^® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory	24 DDR4 DIMM slots, 2,933 MT/s; up to 12 DCPMMs, 2,666 MT/s
Internal Storage	Front: • 24 x 3.5-inch SAS/SATA hard drives Embedded: • 4 x 3.5-inch SAS/SATA hard drives Rear: • 16 x 3.5-inch SAS/SATA hard drives • 16 x 3.5-inch SAS/SATA hard drives + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs • 14 x 3.5-inch SAS/SATA hard drives (or 4 NVMe SSDs for the NVMe model) + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs (this configuration does not support internal hard disk and I/O module 1) Flash storage: • Two M.2 SSDs
RAID	RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	• LOM: 2 x 10 GE + 2 x GE ports • Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules	4 hot-swappable fan modules with optional N+1 redundancy
Power Supply	2 hot-swappable PSUs with optional 1+1 redundancy. Supported options include: • 900W AC Platinum PSU • 1,500W AC Platinum PSU
Management	• iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. • (Optional) Configured with the eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Certifications	CE, UL, FCC, CCC, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	175 mm x 447 mm x 748 mm (6.89 in. x 17.60 in. x 29.45 in.)
Operating Temperature	5°C to 40°C (41°F to 104°F) (ASHRAE Class A3 compliant)
