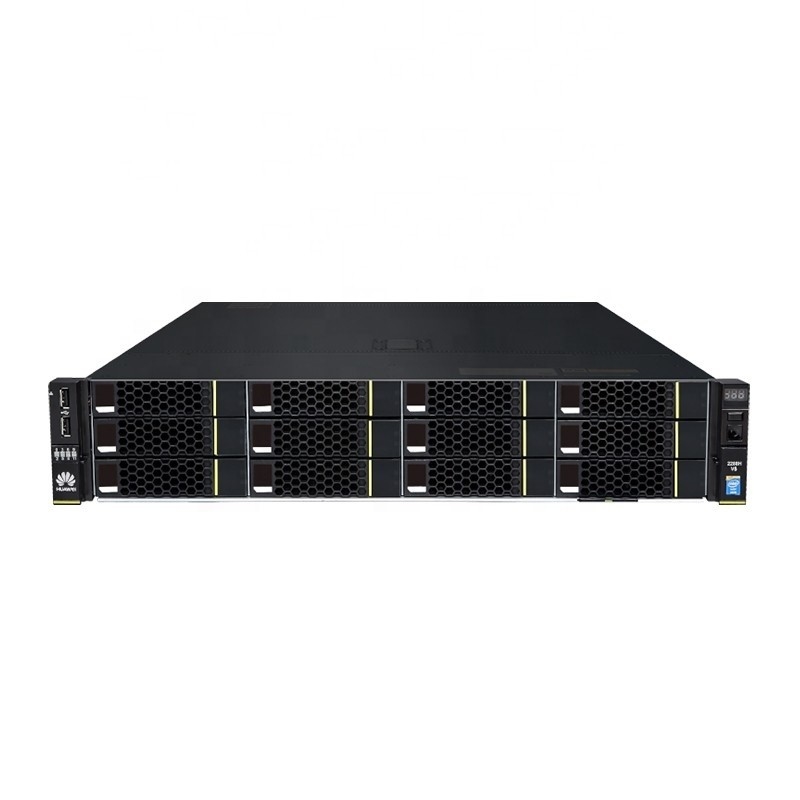

2288H V5 Server with 5118 Processor, 16GB DDR4, 600GB 10K SAS, SR450C Raid Card, 550W PS

2288H V5 Server with 5118 Processor, 16GB DDR4, 600GB 10K SAS, SR450C Raid Card, 550W PS

  • 2288H V5 Server with 5118 Processor, 16GB DDR4, 600GB 10K SAS, SR450C Raid Card, 550W PS
  • 2288H V5 Server with 5118 Processor, 16GB DDR4, 600GB 10K SAS, SR450C Raid Card, 550W PS
  • 2288H V5 Server with 5118 Processor, 16GB DDR4, 600GB 10K SAS, SR450C Raid Card, 550W PS
2288H V5 Server with 5118 Processor, 16GB DDR4, 600GB 10K SAS, SR450C Raid Card, 550W PS
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: 2288H V5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Application: Enterprise Network Product Name: 2288H V5
Port: HongKong

 UONEL CO LIMITED

Contact person:Natasha

Mobile/Whatsapp/Skype/Wechat:+86 13798264392

Website:www.uonel.com



2288H V5 Server with 1*5118 (2.3GHz/12-core/16.5MB/105W), 1*16GB DDR4, 2*600GB 10k SAS, SR450C Raid Card and 1*550W Power Supply

Specifications

Model FusionServer Pro 2288H V5
Form Factor 2U, 2-socket rack server
Processors 1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory 24 DDR4 DIMM slots, 2,933 MT/s; up to 12 DCPMMs, 2,666 MT/s
Internal Storage Supports the following hard drive configuration options:
  • 8 x 2.5-inch SAS/SATA HDDs or SSDs
  • 12/16/20 x 3.5-inch SAS/SATA HDDs
  • 4, 8, 12, 24, or 28 NVMe SSDs
  • 31 x 2.5-inch SAS/SATA HDDs or SSDs
Flash storage:
  • 2 M.2 SSDs
RAID Support RAID 0, 1, 10, 1E, 5, 50, 6, or 60
Configured with a supercapacitor for cache power-off protection (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports LOM: 2 x 10 GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
Fan Modules 4 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
  • 550W AC Platinum PSUs
  • 900W AC Platinum/Titanium PSUs
  • 1,500W AC Platinum PSUs
  • 1,500W 380V HVDC PSUs
  • 1,200W -48V to -60V DC PSUs
Management
  • iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
  • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
  • (Optional) Configured with the eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
Certifications CE, UL, FCC, CCC, and RoHS
Installation suite L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions
(H x W x D)		 Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)

Packaging & Shipping
