Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | E9000 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Type: | Rack |
|---|---|---|---|
| Max Memory Capacity: | 240TB | Max Processors: | 2 |
| Processor Main Frequency: | 2.5Ghz | Processor Type: | Intel Xeon E5-2600 V3 Series |
| Form Factor: | Full-width 2-socket Compute Node | Number Of Processors: | 1 Or 2 |
| Processor Model: | Intel Xeon E5-2600 V3 Series | Number Of DIMMs: | 24 DDR4 DIMMs, Providing A Maximum Memory Capacity Of 1.5 TB |
| Number Of Hard Disks: | One 2.5-inch SSD/SATA For Each 2-socket Compute Node | Operating Temperature: | 5°C To 40°C |
| Dimensions: | 60.46 Mm*423 Mm *537.2 Mm | PCIe Expansion: | 2 PCIe X16 Mezz Modules |
| RAID Surpport: | RAID 0, 1, 10, 5, 50, 6, And 60 With A 1 GB/2 GB RAID Cache | Port: | Shenzhen/Guangzhou/Shanghai Etc. |

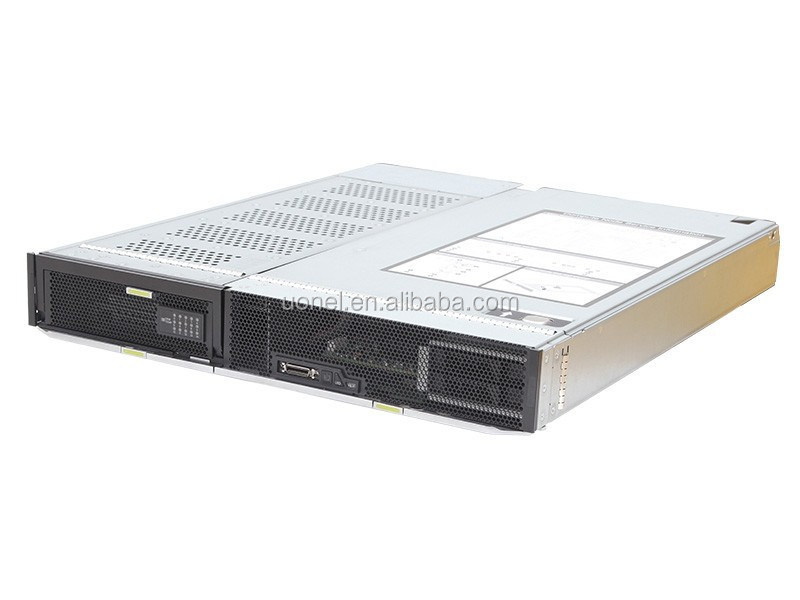

Huawei new generation FusionServer CH222 V3 Storage Compute Node for E9000 can be used for Big Data analysis, server SAN, videos, searches, and the biological sciences — all processing applications that require large storage capacity and high computing performance.
It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.
Item | Huawei FusionServer CH222 V3 Storage Compute Node |
Form Factor | Full-width 2-socket compute node |
Number of Processors | 1 or 2 |
Processor Model | Intel Xeon E5-2600 V3 Series |
Number of DIMMs | 24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB |
Number of Hard Disks | 15 x 2.5-inch SAS/SATA HDDs or SSDs |
RAID Support | RAID 0, 1, 10, 5, 50, 6, and 60 with a 1 GB/2 GB RAID cache |
PCIe Expansion | 2 PCIe x16 Mezz modules |
OS Support | Microsoft Windows Server 2008/2012 |
Operating Temperature | 5ºC to 40ºC |
Dimensions | Height: 60.46 mm (2.38 in) |
