CH140 Compute Node for E9000

Negotiable
MOQ
Negotiable
Price
CH140 Compute Node for E9000
Features Gallery Product Description Request A Quote
Features
Specifications
Products Status: Stock
Type: Rack
Processor Main Frequency: 2.5Ghz
Processor Type: Intel Xeon E5-2600 And E5-2600 V2 Series
Form Factor: Two 2-socket Twin Compute Nodes In A Half-width Slot
Power Supply: 110V/220V AC Or 48V DC
Number Of Processors: 1 Or 2 In Each 2-socket Compute Node
RAID Support: RAID 0 And 1
Processor Model: Intel Xeon E5-2600 And E5-2600 V2 Series
Number Of DIMMs: 24 DDR3 DIMMs, Providing A Maximum Memory Capacity Of 1.5 TB
Operating Temperature: 5°C To 40°C
Dimensions: 60.46 Mm*210 Mm*537.2 Mm
Number Of Hard Disks: One 2.5-inch SSD/SAS/SATA For Each 2-socket Compute Node
Port: Shenzhen/Guangzhou/Shanghai Etc.
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: CH121 Compute Node
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description

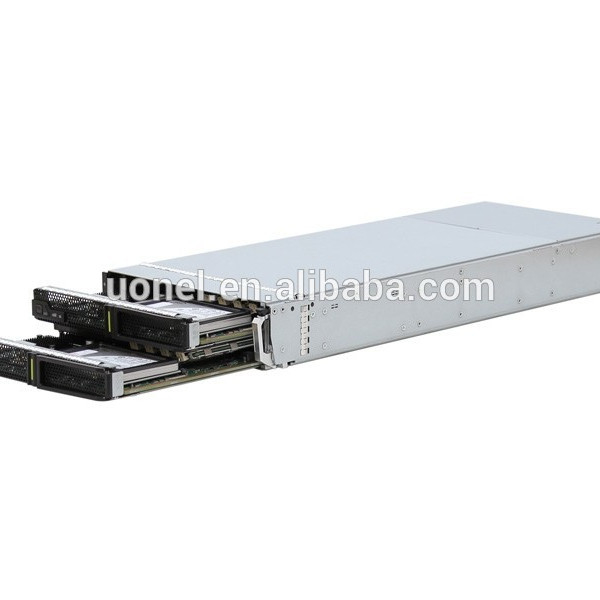

CH140 Compute Node for E9000

CH140 Compute Node for E9000 Combines ultra-high-density computing with a large memory. It is optimized for enterprise service applications such as virtualization, cloud computing, and HPC. It’s powered by Intel Xeon E5-2600 and E5-2600 v2 family processors and Eight DIMM slots on a 2-socket compute node support a DDR3 memory capacity of up to 512 GB on a 2-socket compute node.

This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

Specification

Item

CH140 Compute Node

Form Factor

Two 2-socket twin compute nodes in a half-width slot

Number of Processors

1 or 2 in each 2-socket compute node

Processor Model

Intel Xeon E5-2600 and E5-2600 v2 series

Number of DIMMs

8 DDR3 DIMMs for each 2-socket compute node

Number of Hard Disks

One 2.5-inch SSD/SAS/SATA for each 2-socket compute node

RAID Support

N/A

PCIe Expansion

2 twin nodes share 2 PCIe x 8 Mezz modules

OS Support

Microsoft Windows Server 2008/2012
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Oracle Linux
CentOS
Citrix XenServer
Vmware

Operating Temperature

5°C to 40°C

Dimensions

Height: 60.46 mm (2.38 in)
Width: 210 mm (8.27 in)
Depth: 537.2 mm (21.15 in)
