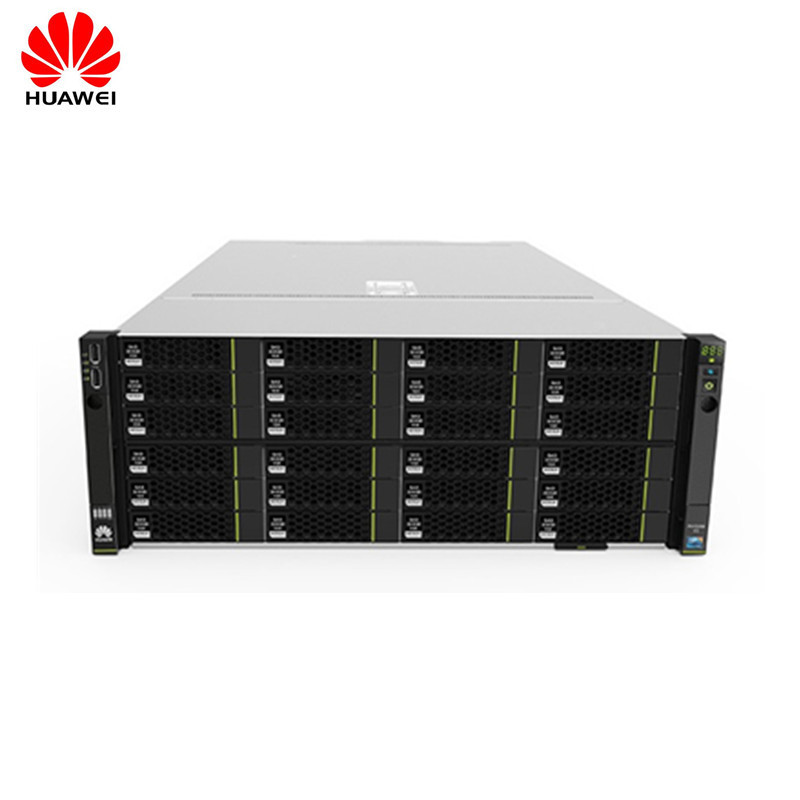

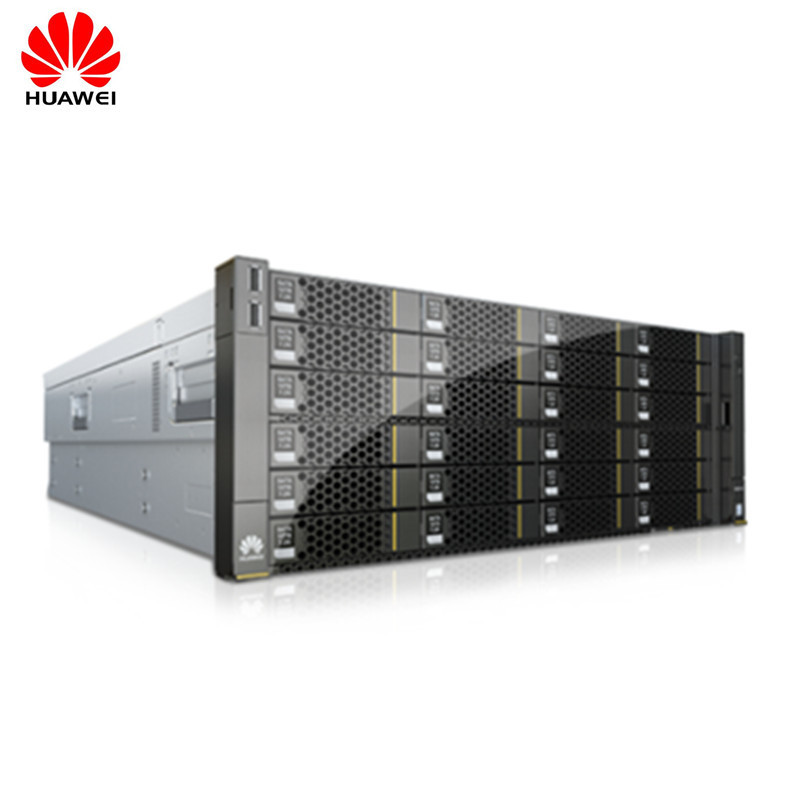

FusionServer Pro 5288 V5 Huawei Rack Server 4U 2 Socket RH5288 V5

FusionServer Pro 5288 V5 Huawei Rack Server 4U 2 Socket RH5288 V5

  • FusionServer Pro 5288 V5 Huawei Rack Server 4U 2 Socket RH5288 V5
  • FusionServer Pro 5288 V5 Huawei Rack Server 4U 2 Socket RH5288 V5
FusionServer Pro 5288 V5 Huawei Rack Server 4U 2 Socket RH5288 V5
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: FusionServer Pro 5288 V5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Rack Processor Type: Xeon
Model Number: 5288 V5 Form Factor: 4U Rack Server
DDR4 DIMM Slots: 24 Flash Storage: Two M.2 SSDs
LOM: 2 X 10 GE + 2 X GE Ports Flexible NIC 1: 2 X GE, 4 X GE, 2 X 10 GE
Flexible NIC 2: 1/2 X 56G FDR IB Ports PCIe 3.0 Slots: Up To 10
Power Supply: 900W/1,500W AC Platinum PSU Dimensions (H X W X D): 175 Mm X 447 Mm X 748 Mm
High Light:

5288 V5 Huawei Rack Server

,

4U Huawei Rack Server

,

FusionServer Pro 5288 V5

FusionServer Pro 5288 V5 Rack Server 4U 2-socket RH5288 V5



FusionServer Pro 5288 V5 Rack Server
Huawei FusionServer Pro 5288 V5 is a 4U, 2-socket rack server, applicable to services such as tiered storage of hot, warm, and cold data, and historical data archiving. With high efficiency design, the server ensures excellent computing performance and provides flexible and ultra-large local storage scalability to reduce data storage costs.

Ultra-Large Capacity, Tiered Storage
Powered by the Intel® Xeon® Scalable Processors, supports 24 DDR4 DIMMs, up to 44 x 3.5-inch + 4 x 2.5-inch local hard drives, 8 PCIe slots, and two GE and two 10 GE LAN On Motherboard (LOM) ports.



Smart Power Savings and Better Energy Efficiency
Leverages patented DEMT for smart power management, slashes power consumption by up to 15% without affecting performance; uses 80 Plus® Platinum PSUs for better energy utilization.



Unmatched Intelligent Manageability and Openness
Supports smart O&M across the lifecycle and FDM for in-depth diagnosis with accuracy up to 93%; provides standardized and open interfaces, facilitating integration with third-party management software.

Specifications
Model
FusionServer Pro 5288 V5
Form Factor
4U rack server
Processors
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W
Memory
24 DDR4 DIMM slots, 2,933 MT/s; up to 12 DCPMMs, 2,666 MT/s
Internal Storage
Front:
• 24 x 3.5-inch SAS/SATA hard drives
Embedded:
• 4 x 3.5-inch SAS/SATA hard drives
Rear:
• 16 x 3.5-inch SAS/SATA hard drives
• 16 x 3.5-inch SAS/SATA hard drives + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs
• 14 x 3.5-inch SAS/SATA hard drives (or 4 NVMe SSDs for the NVMe model) + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs (this configuration does not support internal hard disk and I/O module 1)
Flash storage
• Two M.2 SSDs
RAID
RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports
 LOM: 2 x 10 GE + 2 x GE ports
• Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion
Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules
4 hot-swappable fan modules with optional N+1 redundancy
Power Supply
2 hot-swappable PSUs with optional 1+1 redundancy. Supported options include:
• 900W AC Platinum PSU
• 1,500W AC Platinum PSU
Management
Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
• (Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Certifications
CE, UL, FCC, CCC, and RoHS
Installation Suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
175 mm x 447 mm x 748 mm (6.89 in. x 17.60 in. x 29.45 in.)
Operating Temperature
5°C to 40°C (41°F to 104°F) (ASHRAE Class A3 compliant)
