Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZXA10 F601 ONU |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZTE F601 GPON ONT ONU Device | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Model Name: | ZXA10 F61 ONU | Type: | ZTE OUN |
| Brand Name:: | ZTE | Port: | Shenzhen |

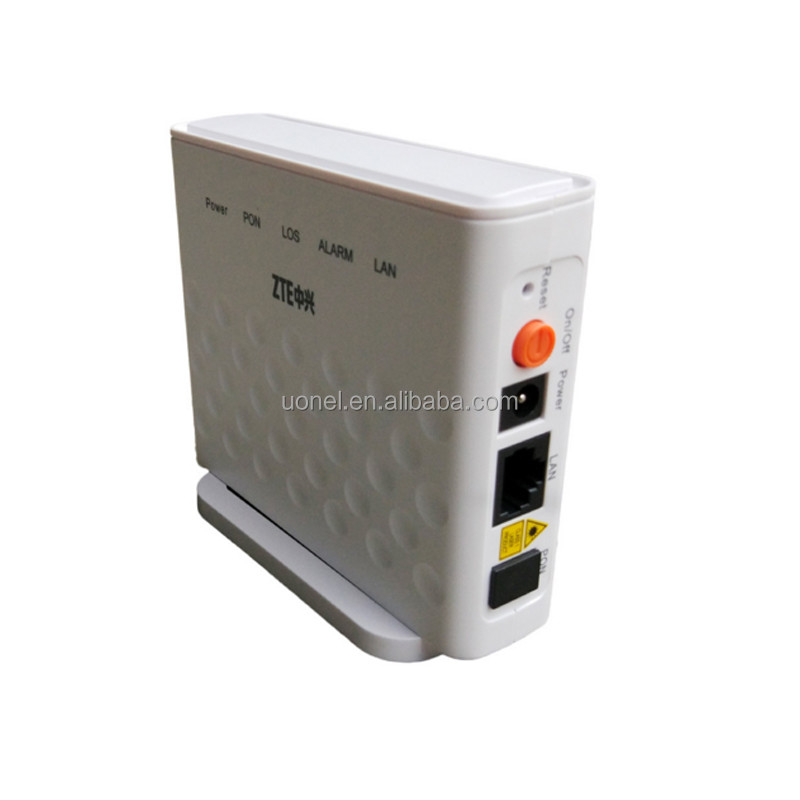

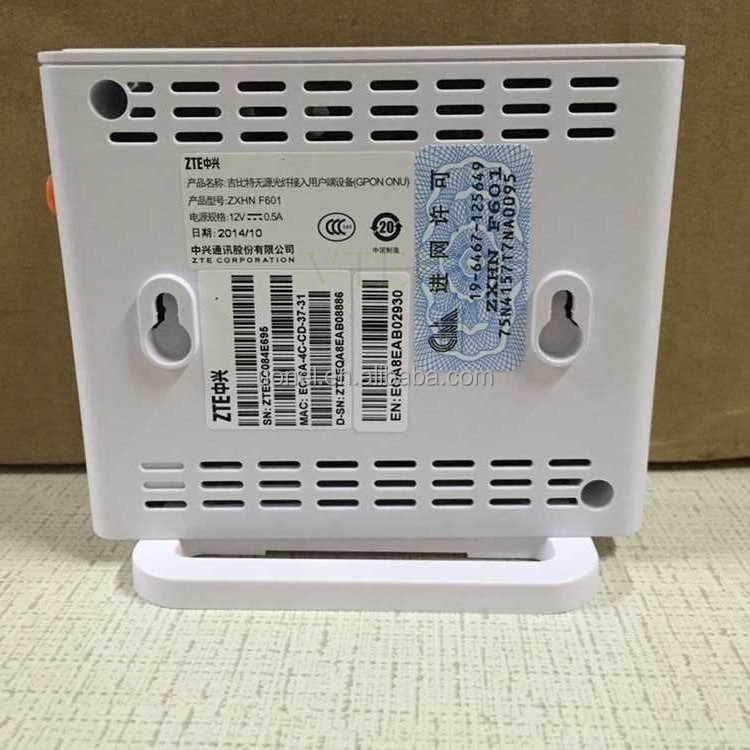

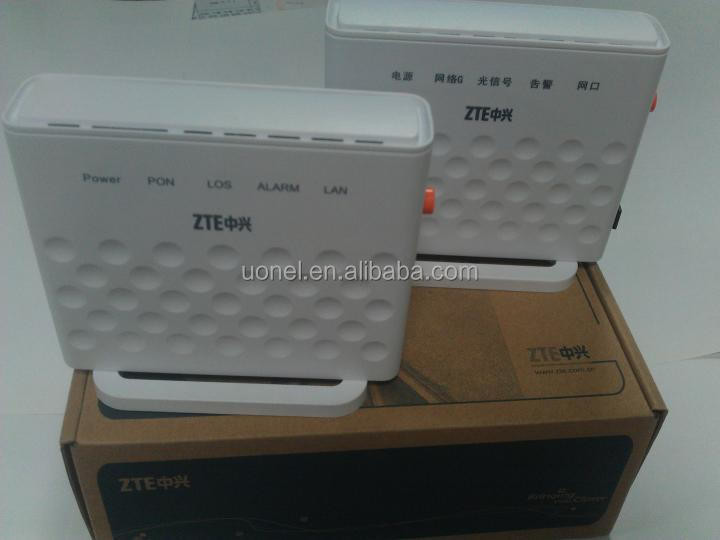

ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
GPON Interface
Optical port: 1 x GPON interface (SC/PC or SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
1 x10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module
Wavelength:
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance
Power consumption: <6W
Dimensions: 110mm(W) x 90mm(H) x 53mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 190g
Power supply: 12V DC
Mounting mode: Desktop/Wall mounting
Main Function
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 256
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping
Management: local web management, OMCI
High Reliability
It provides full-service access, high bandwidth, high performance, high reliability,
easy operation and maintenance, to meet customers evolving requirements, fully
protect the investment and enhance the value of fixed network for operators.
It has many thoughts in heat dissipation. This designation can ensure the stable
running of device.
It uses double software versions which are redundant for each other to contribute to
the system reliability. To make sure that service would not be interrupted by
software bugs, the backup version will be activated while the active software version
is broken.
Reliable lighteningprotection design with a 4KV power, and a 1.5KV Ethernet
interface protect the equipment.
Confidential & Proprietary 7
Green Design
Green design for ZXHN F601 is showed by many thoughts for saving energy. The main aspects are:
While few data frames are switching and ONT is on a relative idle status, the power component will be in dozing mode to save power.
The materials comply with RoHS.
Easy Operation and Maintenance
ZXHN F601 supports batch-update, fault diagnosis and loop routes checking remotely by OMCI.
ZXHN F601 can also be updated and managed in batches through OLT or EMS.
ZXHN F601 supports off-line configuration and Batch configuration, Zero touch configuration in field and automatic release and opening of service.
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
