Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE F600w zxhn f600w gpon ont onu |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZTE F600w Zxhn F600w Gpon Ont Onu | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Model Name: | ZXA10 F600W GPON | Type: | ZTE OUN |
| Brand Name:: | ZTE | Port: | Shenzhen |

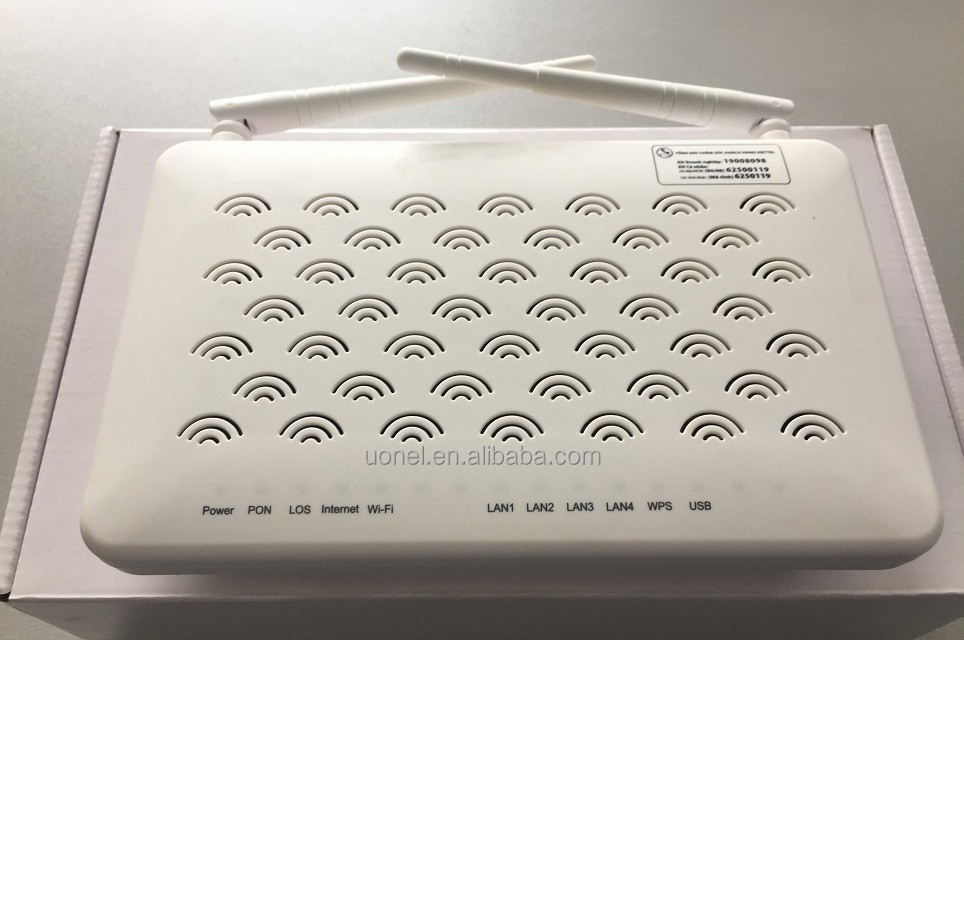

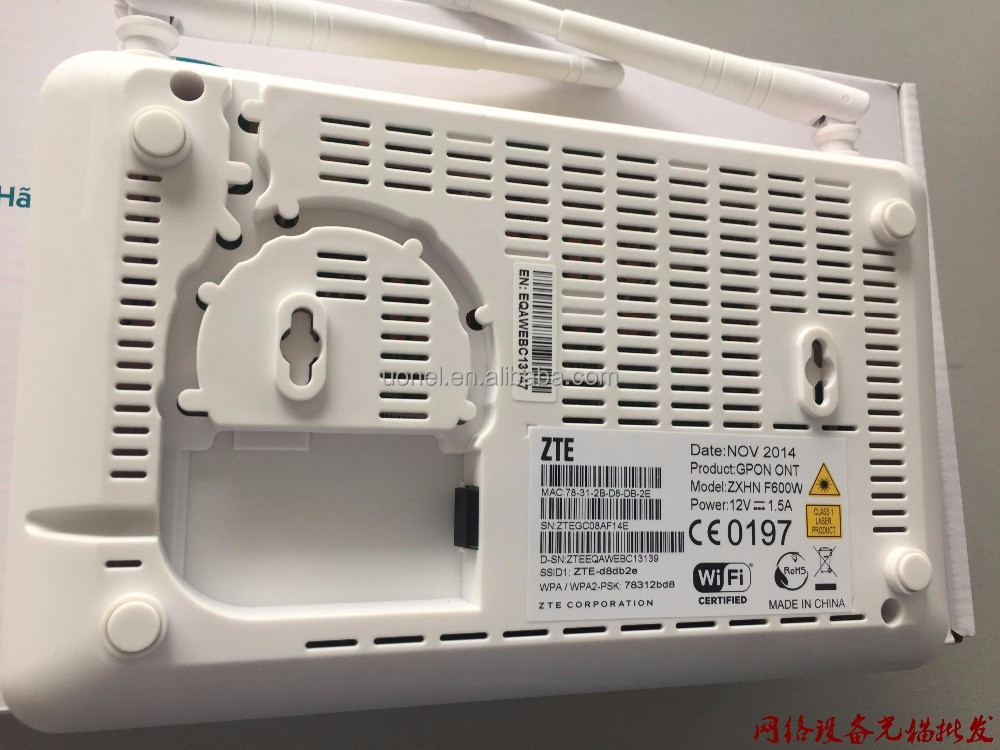

ZXHN F600W is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colorful, individualized, convenient and comfortable services including video (IPTV) and high speed internet access. It has a small, smart appearance and green, energy-saving advantage.
ZTE original GPON ONU F600W v5.2 unlock version

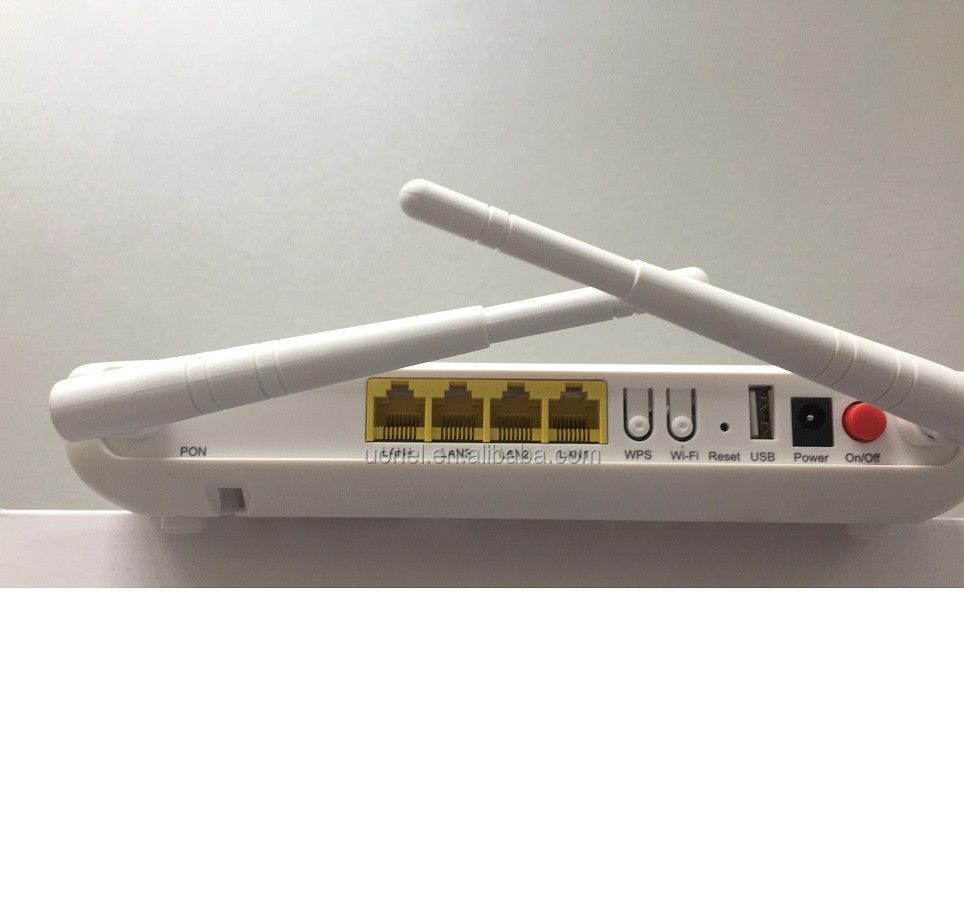

The F600W is an indoor optical network unit(ONu) in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F600W provides two POTS ports,four GE/FE auto-adapting Ethernet ports and one CATV port. The F600W features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
2. Product parameter of the F600 v5.0:
*Dimensions(W x D x H):180 mm x 127mm x 38 mm
*Port:4FE
*Average power consumption:11 W
*Operating environment:Temperature: -5℃~45℃;
*Humidity: 5%–95%, non-condensing
*Power supply:Adapter input: 100–240 V AC, 50–60Hz;
*Adapter output: 12 V DC, 1 A
*Weight:About 600g (including the power adapter)
3. Product feature and application of the F600 v5.0:
GPON Interface
Optical port: 1 x GPON interface
Transmission Distance: 0 ~ 20km
Transmission rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
4 x 10/100Base-T; Half/full duplex; Auto MDI/MDIX; Auto negotiation
1 x WiFi Interface: IEEE 802.11B/G/N @2.4G Hz
1 x USB host interface
Optical Module
Wavelength: Receiving: 1480~1500 nm, Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
| GPON Interface | Optical port: 1 x GPON interface (SC/PC) |
| Transmission Distance: 0 ~ 20km | |
| Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream | |
| User Network Interface | 4 x10/100/1000Base-T |
| Half/full duplex; Auto MDI/MDIX; Auto negotiation | |
| Optical Module | Receiving: 1480~1500 nm |
| Transmitting: 1290~1330 nm | |
| Receiving Sensitivity: -28dBm | |
| Transmitting Optical Power: 0.5~5dBm | |
| Main Function | Supported service: Internet, IPTV |
| GPON: 8 T-CONTs, 32 GEM Ports | |
| VLAN: 802.1Q, 802.1P, 802.1ad | |
| MAC address table: 256 | |
| Multicast: IGMP v1/v2/v3 Snooping | |
| Multicast group: 256 | |
| QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;egress shaping | |
| Management: local web management, OMCI | |
| Physical Performance | Power consumption: <6W |
| Dimensions: 199mm(W) x 35mm(H) x150mm(D) | |
| Working temperature: 0℃ ~ 40℃ | |
| Working humidity: 5% ~ 95% | |
| Weight: about 260g | |
| Power supply: 12V DC | |
| Mounting mode: Desktop/Wall mounting | |
| Supports hidden and coiled fiber |
