02312BEC BC1M02MSMA Huawei Storage Server SR230-M Avago3004 M.2 RAID PCIE Card

02312BEC BC1M02MSMA Huawei Storage Server SR230-M Avago3004 M.2 RAID PCIE Card

  • 02312BEC BC1M02MSMA Huawei Storage Server SR230-M Avago3004 M.2 RAID PCIE Card
02312BEC BC1M02MSMA Huawei Storage Server SR230-M Avago3004 M.2 RAID PCIE Card
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: FusionServer Pro 5885H V5, BC1M02MSMA
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Rack Processor Type: Intel Xeon
FusionServer Pro 5885H V5: 4U, 4-socket Server Dimensions (H X W X D): 175 Mm X 447 Mm X 790 Mm
Memory Slots: 48 DDR4 DIMM LOM Network Ports: 2 X 10 GE + 2 X GE LOM Ports
Fan Modules: 5 Hot-swappable Flash Storage: Two M.2 SSDs
RAID Support: RAID 0, 1, 5, 50, 6, Or 60
High Light:

BC1M02MSMA Huawei Storage Server


02312BEC Huawei Storage Server


SR230-M 1288h v5 huawei

02312BEC BC1M02MSMA SR230-M,Avago3004,M.2 RAID PCIE card

Device Attributes

Skylake CPU
Intel Xeon Gold 5122(3.6GHz/4-core/16.5MB/105W) Processor (with heatsink)
Intel Xeon Gold 5115(2.4GHz/10-core/13.75MB/85W) Processor (with heatsink)
Intel Xeon Gold 5118(2.3GHz/12-core/16.5MB/105W) Processor (with heatsink)
Intel Xeon Gold 5120(2.2GHz/14-core/19.25MB/105W) Processor (with heatsink)
Intel Xeon Gold 6128(3.4GHz/6-core/19.25MB/115W) Processor (with heatsink)
Hard Disk(with 2.5-inch; Front Panel)-SAS
HDD,300GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,300GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,600GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,600GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,900GB,SAS 12Gb/s,15K rpm,256MB or above,2.5inch(2.5inch Drive Bay)
HDD,1200GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)

Technical Specifications

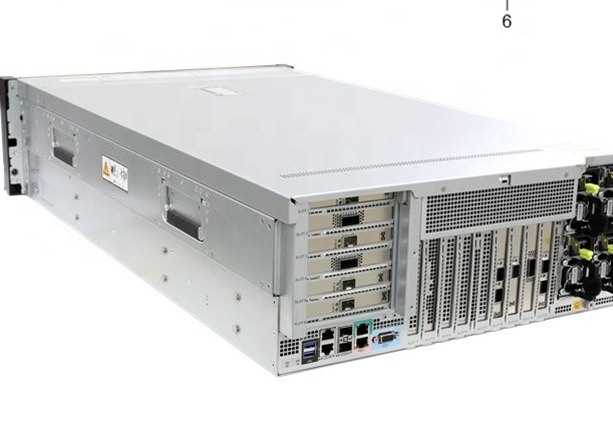

FusionServer Pro 5885H V5 Rack Server
Huawei FusionServer Pro 5885H V5 is a 4U, 4-socket rack server. It applies to mission-critical applications that demand high reliability and performance, and is ideal for compute-intensive services, such as virtualization, High-Performance Computing (HPC), and databases. The 4U server can be configured with four Intel® Xeon® Scalable processors, 48 DDR4 DIMMs , and 25 x 2.5-in. hard drives for local storage and supports a maximum of eight NVMe SSDs. It incorporates patented technologies such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates Huawei's eSight software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

FusionServer Pro 5885H V5
Form Factor
4U rack server
2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W
2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W
48 DDR4 DIMM slots, 2933MT/s; up to 24 DCPMMs, 2666 MT/s
Internal Storage
Supports hot-swappable hard drives with the following configuration options:
• 8 x 2.5-inch SAS/SATA hard drives (front)
• 24 x 2.5-inch SAS/SATA hard drives (front)
• 25 x 2.5-inch SAS/SATA hard drives (front)
• 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front)

Flash storage:
• Two M.2 SSDs
RAID Support
RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
LOM Network Ports
2 x 10 GE + 2 x GE LOM ports
PCIe Expansion
• Up to 15 PCIe slots for 15 PCIe 3.0 slots
• 2 dual-width full-height full-length GPU cards (x16)
Fan Modules
5 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units
4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include:
• 1,500W AC Platinum PSUs
• 900W AC PSUs
• 1,200W DC PSUs
• Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.

• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.

• (Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature
5ºC to 45ºC (41ºF to 113ºF) (ASHRAE A3 and A4 compliant)
CE, UL, FCC, CCC, and RoHS
Installation suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)
