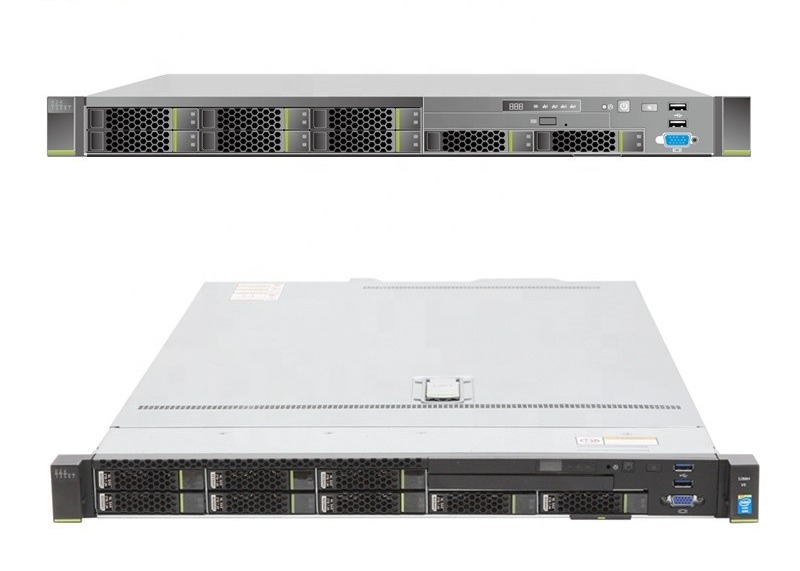

02311XDA H12H-05-S8AEF FusionServer Pro 1288H V5 1U 2 Socket

02311XDA H12H-05-S8AEF FusionServer Pro 1288H V5 1U 2 Socket

  • 02311XDA H12H-05-S8AEF FusionServer Pro 1288H V5 1U 2 Socket
02311XDA H12H-05-S8AEF FusionServer Pro 1288H V5 1U 2 Socket
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: FusionServer Pro 1288H V5, H12H-05-S8AEF
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Rack Processor Type: Intel Xeon
FusionServer Pro 1288H V5: 1U, 2-socket Dimensions 3.5-inch Drives: 43 Mm X 447 Mm X 748 Mm
Dimensions 2.5-inch Drives: 43 Mm X 447 Mm X 708 Mm Memory Slots: 24 DDR4 DIMM
Power Supply: 2 Hot-swappable LOM Network Ports: 2 X 10GE + 2 X GE Ports
RAID Support: RAID 0, 1, 10, 5, 50, 6, Or 60 Flash Storage: 2 M.2 SSDs
High Light:

H12H-05-S8AEF FusionServer Pro 1288H V5


02311XDA FusionServer Pro 1288H V5


H12H-05-S8AEF 1U rack server

Product Overview

02311XDA H12H-05-S8AEF 1288H V5 (8*2.5 inch HDD Chassis, With 2*GE and 2*10GE Electrical Ports) H12H-05(For oversea)

Device Attributes

DDR4 RDIMM Memory,8GB,2666MT/s,1Rank(1G*8bit),1.2V,ECC
DDR4 RDIMM Memory,16GB,2666MT/s,2Rank(1G*8bit),1.2V,ECC
DDR4 RDIMM Memory,32GB,2666MT/s,2Rank(2G*4bit),1.2V,ECC
DDR4 LRDIMM Memory,64GB,2666MT/s,4Rank(2G*4bit),1.2V,ECC
DDR4 LRDIMM Memory,128GB,2666MT/s,8Rank(2G*4bit),1.2V,ECC,TSV
Hard Disk(with 2.5" Front Panel)-SAS
HDD,300GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,300GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,600GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,600GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,900GB,SAS 12Gb/s,15K rpm,256MB or above,2.5inch(2.5inch Drive Bay)
HDD,1200GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,1800GB,SAS 12Gb/s,10K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,2400GB,SAS 12Gb/s,10K rpm,256MB,2.5inch(2.5inch Drive Bay)
HDD,1000GB,NL SAS 12Gb/s,7.2K rpm,128MB,2.5inch(2.5inch Drive Bay)

Technical Specifications


FusionServer Pro 1288H V5 Rack Server
The Huawei FusionServer Pro 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, High-Performance Computing (HPC), and Big Data processing. It delivers superior performance and excellent scalability while improving space utilization in data centers, driving down the overall expenditure.

FusionServer Pro 1288H V5
Form Factor
1U, 2-socket rack server
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W

1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W
24 DDR4 DIMM slots, 2933 MT/s; up to 12 DCPMMs, 2666 MT/s
Internal Storage
Supports hot-plug hard drives and the following configuration options:
10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less)
10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less)
10 x 2.5-inch SAS/SATA/SSDs
8 x 2.5-inch SAS/SATA hard drives
4 x 3.5-inch SAS/SATA hard drives

Flash storage:
2 M.2 SSDs
RAID Support
RAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports
LOM: 2 x 10GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports
PCIe Expansion
Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules
7 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
550W AC Platinum PSUs
900W AC Platinum/Titanium PSUs
1,500W AC Platinum PSUs
1,500W 380V HVDC PSUs
1,200W -48V to -60V DC PSUs
Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.

iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.

(Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
CE, UL, FCC, CCC, and RoHS
Installation suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
