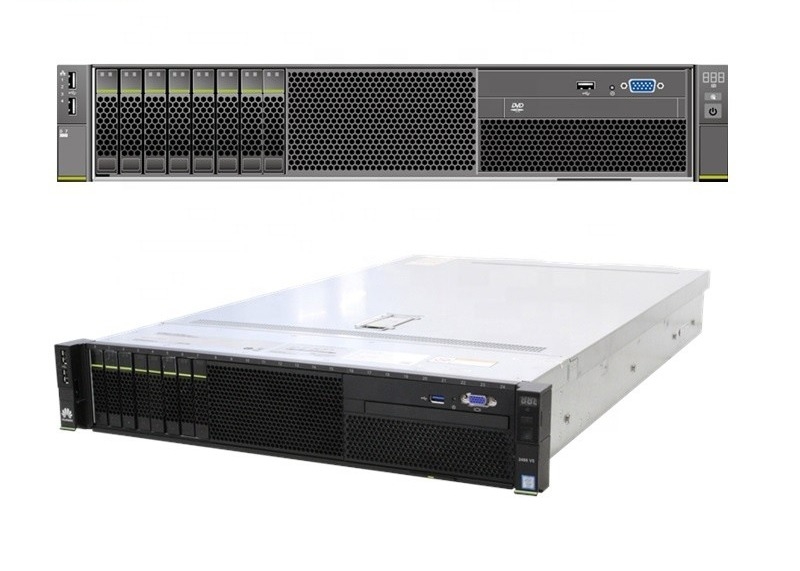

02311XBH H22H-05-S8AEF FusionServer Pro 2288H V5 Server HDD Chassis

02311XBH H22H-05-S8AEF FusionServer Pro 2288H V5 Server HDD Chassis

  • 02311XBH H22H-05-S8AEF FusionServer Pro 2288H V5 Server HDD Chassis
02311XBH H22H-05-S8AEF FusionServer Pro 2288H V5 Server HDD Chassis
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: FusionServer Pro 2288H V5, H22H-05-S8AEF
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Rack Processor Type: Intel Xeon
FusionServer Pro 2288H V5: 2U, 2-socket 2288H V5 Configuration 1: 8-drive,2.5''
2288H V5 Configuration 2: 12-drive,3.5'' 2288H V5 Configuration 3: 24-drive,2.5''
2288H V5 Configuration 4: 25-drive,2.5'' Dimensions (2.5'' Disk): 86.1 Mm X 447 Mm X 708 Mm
Dimensions (3.5'' Disk): 86.1 Mm X 447 Mm X 748 Mm Memory Slots: 24 DDR4 DIMM
PCIe Expansion: Up To 10 PCIe 3.0 Slots
High Light:

02311XBH FusionServer Pro 2288H V5


FusionServer Pro 2288H V5 Server



FusionServer Pro 2288H V5 server 8*2.5inch HDD Chassis 02311XBH H22H-05-S8AEF

Device Attributes

DDR4 RDIMM Memory,8GB,2666MT/s,1Rank(1G*8bit),1.2V,ECC
DDR4 RDIMM Memory,16GB,2666MT/s,2Rank(1G*8bit),1.2V,ECC
DDR4 RDIMM Memory,32GB,2666MT/s,2Rank(2G*4bit),1.2V,ECC
DDR4 LRDIMM Memory,64GB,2666MT/s,4Rank(2G*4bit),1.2V,ECC
DDR4 LRDIMM Memory,128GB,2666MT/s,8Rank(2G*4bit),1.2V,ECC,TSV
Hard Disk(with 2.5" Front Panel)-SAS
HDD,300GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,300GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,600GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
HDD,600GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
HDD,900GB,SAS 12Gb/s,15K rpm,256MB or above,2.5inch(2.5inch Drive Bay)

Technical Specifications


FusionServer Pro 2288H V5 Rack Server
The Huawei FusionServer Pro 2288H V5 is an a 2U, 2-socket rack server. FusionServer Pro 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing virtualization, databases, High-Performance Computing (HPC), and big data processing.

FusionServer Pro 2288H V5
Form Factor
2U, 2-socket rack server
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
24 DDR4 DIMM slots, 2,933 MT/s; up to 12 DCPMMs, 2,666 MT/s
Internal Storage
Supports the following hard drive configuration options:
8 x 2.5-inch SAS/SATA HDDs or SSDs
12/16/20 x 3.5-inch SAS/SATA HDDs
4, 8, 12, 24, or 28 NVMe SSDs
31 x 2.5-inch SAS/SATA HDDs or SSDs
Flash storage:
2 M.2 SSDs
RAID Support
RAID 0, 1, 10, 1E, 5, 50, 6, or 60
Configured with a supercapacitor for cache power-off protection (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports
LOM: 2 x 10 GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion
Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
Fan Modules
4 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
550W AC Platinum PSUs
900W AC Platinum/Titanium PSUs
1,500W AC Platinum PSUs
1,500W 380V HVDC PSUs
1,200W -48V to -60V DC PSUs
Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
(Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
CE, UL, FCC, CCC, and RoHS
Installation suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
