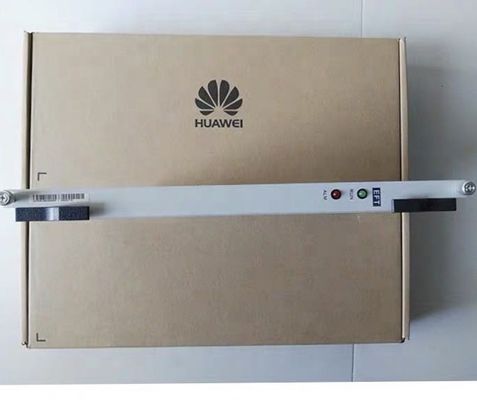

ZXONE 8300 Huawei DWDM System Offering EDFA Erbium-Doped Fiber Amplifier and Power Supply -48 V -60 V DC Supporting Scalable Optical Networks

Product Description:

The Huawei DWDM product is a cutting-edge solution designed to meet the growing demands of high-capacity optical networks. With a TDM capacity ranging from 20 to 60 Gbit/s, this product ensures efficient and reliable data transmission, making it an ideal choice for telecommunications providers and enterprises seeking to expand their network bandwidth while maintaining low latency and high stability.

One of the standout features of the Huawei DWDM system is its support for both C-band and L-band wavelengths. This dual-band capability allows for greater flexibility in wavelength allocation and network design, enabling operators to maximize the utilization of their fiber infrastructure. By leveraging the broad spectrum of wavelengths available, the Huawei DWDM solution significantly enhances network capacity and scalability, accommodating future growth and evolving service requirements.

The system operates optimally within an air pressure range of 70 KPa to 106 KPa, ensuring stable performance in diverse environmental conditions. This robustness is critical for deployment in various geographic locations and installation scenarios, providing consistent operation without compromising the quality of signal transmission.

Amplification within the Huawei DWDM product is achieved using EDFA (Erbium-Doped Fiber Amplifier) technology. EDFAs are renowned for their high gain, low noise, and ability to amplify optical signals directly without the need for electrical conversion. This amplification type plays a vital role in extending transmission distances and maintaining signal integrity across long-haul fiber links, which is essential for metropolitan and regional network deployments.

Management and control of the Huawei DWDM system are facilitated through advanced protocols including SNMP (Simple Network Management Protocol), NETCONF (Network Configuration Protocol), and TL1 (Transaction Language 1). These protocols provide comprehensive network management capabilities, enabling operators to monitor system status, configure network elements, and automate fault detection and recovery processes efficiently. The integration of these protocols ensures seamless interoperability with existing network management systems and supports streamlined operational workflows.

In addition to the core DWDM functionalities, the Huawei DWDM product ecosystem includes complementary components such as the Huawei SFP Module and the Fiber Optic CWDM DWDM AAWG Module. The Huawei SFP Module offers reliable optical transceiver solutions that enhance the overall performance and compatibility of the DWDM system. Meanwhile, the Fiber Optic CWDM DWDM AAWG Module delivers precise wavelength multiplexing and demultiplexing capabilities, essential for managing multiple wavelengths in dense optical networks. These modules are designed to work synergistically with the Huawei DWDM platform, ensuring optimal signal quality and network efficiency.

Overall, the Huawei DWDM product represents a comprehensive and scalable optical transport solution tailored to meet the stringent requirements of modern high-speed networks. Its combination of high TDM capacity, dual-band wavelength support, EDFA amplification, and robust management protocols makes it a versatile choice for operators seeking to future-proof their optical infrastructure. The inclusion of Huawei SFP Modules and Fiber Optic CWDM DWDM AAWG Modules further enhances the system’s adaptability and performance, solidifying Huawei’s position as a leader in the optical communications industry.

Features:

• Product Name: Huawei DWDM
• Network Topology: Point-to-point, Ring, Mesh
• Maximum Capacity: Up To 400 Gbps Per Wavelength
• TDM Capacity: 20-60 Gbit/s
• Channel Spacing: 50 GHz, 100 GHz
• Power Supply: -48 V / -60 V DC
• Compatible with Huawei SFP Module for enhanced connectivity
• Seamless integration with Huawei NE40 Router for optimized network performance
• Supports HUAWEI Storage Server for reliable data storage solutions

Technical Parameters:

Applications:

The Huawei DWDM product is designed to meet the demanding requirements of modern high-capacity optical networks, making it an ideal choice for various application occasions and scenarios. Its robust power supply options of -48 V and -60 V DC ensure reliable operation in diverse environments, including telecommunications central offices and data centers where stable and continuous power is critical.

In metropolitan and long-haul network deployments, the Huawei DWDM system supports key fiber optic technologies such as CWDM and DWDM, enabling efficient wavelength multiplexing to maximize fiber capacity. The integration of the Fiber Optic CWDM DWDM AAWG Module further enhances wavelength management and spectral efficiency, allowing network operators to scale bandwidth up to 400 Gbps per wavelength. This capability is particularly beneficial for backbone networks and high-traffic data corridors connecting major hubs like the HONGKONG Port and Shenzhen Port, where massive data transmission and low latency are paramount.

Protection mechanisms such as 1+1, 1:1, and shared protection are incorporated into the Huawei DWDM product, ensuring high network availability and rapid recovery in case of failures. These protection schemes provide resilient optical paths, crucial for mission-critical applications in financial services, cloud computing, and government networks. Additionally, compatibility with Huawei NE40 Router and HUAWEI Storage Server allows seamless integration into existing network infrastructures, enhancing overall system performance and management.

Network administrators benefit from comprehensive management protocol support, including SNMP, NETCONF, and TL1, which facilitate efficient monitoring, configuration, and fault management. This versatility enables deployment in diverse operational environments, from enterprise campus networks to large-scale carrier-grade networks, ensuring easy maintenance and scalability.

Overall, the Huawei DWDM product excels in scenarios requiring ultra-high bandwidth, secure data transmission, and reliable network operation. Whether deployed in undersea cable systems connecting international ports or in data center interconnects supporting cloud services, its advanced features and robust design make it an indispensable solution for next-generation optical networks.

Customization:

Huawei DWDM products offer flexible product customization services to meet diverse network requirements. Our solutions support various network topologies including point-to-point, ring, and mesh, providing robust and efficient connectivity options.

The channel spacing can be customized to either 50 GHz or 100 GHz, allowing optimal bandwidth allocation and spectral efficiency tailored to your network needs. Our DWDM systems operate effectively within an air pressure range of 70 KPa to 106 KPa, ensuring reliable performance in different environmental conditions.

We support a wide range of wavelengths including both C-band and L-band, enabling extended transmission distances and higher capacity. The amplification type used is EDFA (Erbium-Doped Fiber Amplifier), which guarantees high-quality signal amplification and low noise figure for superior optical performance.

Our DWDM solutions seamlessly integrate with Huawei NE40 Router, Huawei SFP Module, and HUAWEI Storage Server, providing a comprehensive and scalable network infrastructure that enhances data transmission and storage capabilities.

Support and Services:

Huawei provides comprehensive technical support and services for its DWDM (Dense Wavelength Division Multiplexing) products to ensure optimal performance and reliability for your optical network solutions.

Our technical support includes product installation guidance, configuration assistance, troubleshooting, and maintenance services. Huawei’s expert support team is dedicated to helping you resolve any issues promptly and efficiently, minimizing downtime and maximizing network availability.

Huawei also offers regular software updates and patches to improve system functionality and security. Our services extend to network planning and optimization, helping you design scalable and flexible DWDM solutions tailored to your specific requirements.

With Huawei’s DWDM technical support, you gain access to detailed documentation, training programs, and best practice recommendations to empower your technical staff and enhance operational knowledge.

We are committed to delivering high-quality support and services that align with your business goals, ensuring your optical transport network remains robust, scalable, and future-ready.

Packing and Shipping:

Product Packaging:

The Huawei DWDM product is securely packaged using high-quality, anti-static materials to protect sensitive optical components from damage during transit. Each unit is enclosed in a sturdy, custom-designed box that provides cushioning and shock absorption. The packaging includes clear labeling with product information, handling instructions, and safety warnings to ensure proper care throughout the shipping process.

Shipping:

Huawei DWDM products are shipped using reliable logistics partners to guarantee timely and safe delivery. Each package is tracked with a unique shipment ID, allowing customers to monitor their order status in real-time. The shipping process complies with international transportation standards, ensuring the products arrive in optimal condition. Special care is taken to handle the packages with precision during loading and unloading to avoid any potential damage.

FAQ:

Q1: What is Huawei DWDM and what applications is it best suited for?

A1: Huawei DWDM (Dense Wavelength Division Multiplexing) is a high-capacity optical transmission technology that enables multiple data signals to be transmitted simultaneously over a single fiber by using different wavelengths of light. It is best suited for long-haul, metro, and data center interconnect networks requiring high bandwidth and low latency.

Q2: How does Huawei DWDM ensure high reliability and network stability?

A2: Huawei DWDM systems incorporate advanced technologies such as automatic optical power control, forward error correction (FEC), and intelligent network management to ensure high reliability and stability. These features help minimize signal degradation and quickly detect and resolve faults.

Q3: What are the key features of Huawei DWDM regarding scalability and capacity?

A3: Huawei DWDM supports a large number of wavelengths per fiber (up to 96 or more) and offers flexible channel spacing (e.g., 50GHz, 25GHz), enabling scalable bandwidth expansion. This makes it easy to upgrade network capacity as demands grow without needing additional fibers.

Q4: Can Huawei DWDM integrate with existing network infrastructure?

A4: Yes, Huawei DWDM is designed to be compatible with various network protocols such as Ethernet, OTN, and SDH/SONET, allowing seamless integration with existing network equipment. It supports multi-service transmission and can be managed via unified network management platforms.

Q5: What security features does Huawei DWDM offer to protect optical transmission?

A5: Huawei DWDM includes encryption capabilities for data confidentiality, as well as network monitoring tools to detect and prevent unauthorized access or signal interception. Additionally, the system supports secure management protocols to safeguard network operations.
