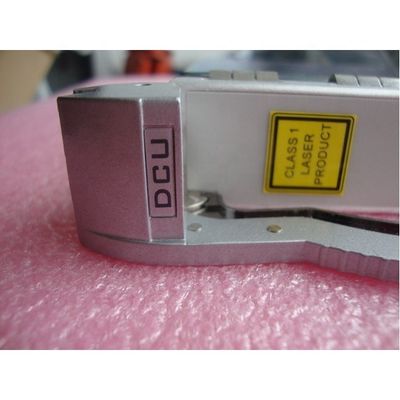

Compatible With Huawei And Third-party Optical Equipment Huawei DWDM Standard 19-inch Rack Mount Point-to-point Network Topology Optical Transport System

Product Description:

The Huawei DWDM (Dense Wavelength Division Multiplexing) product is a cutting-edge optical transmission solution designed to meet the growing demands of modern telecommunications networks. It provides high-capacity, long-distance data transmission by multiplexing multiple wavelengths of light onto a single fiber, significantly enhancing the bandwidth and efficiency of fiber optic networks. This product is highly compatible with the Huawei NE40 Router, ensuring seamless integration within Huawei’s comprehensive networking ecosystem. Together, they form a robust backbone for high-speed, reliable data communication across metropolitan, regional, and long-haul networks.

One of the key features of the Huawei DWDM system is its flexible channel spacing options. It supports both 50 GHz and 100 GHz channel spacing, allowing network operators to optimize the spectral efficiency according to their specific network requirements. The 50 GHz spacing is ideal for maximizing the number of channels and achieving ultra-high data capacity, while the 100 GHz spacing offers greater tolerance and ease of maintenance, providing a balanced solution for diverse deployment scenarios.

Amplification within the Huawei DWDM system is powered by advanced EDFA (Erbium-Doped Fiber Amplifier) technology. EDFAs are essential for boosting optical signals over long distances without the need for electrical conversion, thereby maintaining signal integrity and reducing latency. Huawei’s implementation of EDFA ensures low noise figures, high gain, and excellent stability, making it suitable for various network topologies and demanding transmission environments.

Physically, the Huawei DWDM equipment is designed for convenience and compatibility. It adheres to the standard 19-inch rack mount format, which is widely used in telecommunications infrastructure. This standardization facilitates easy installation, maintenance, and integration into existing data centers and network operation centers. The compact design also helps in optimizing space utilization, making it a practical choice for large-scale deployments.

Reliability and network resilience are critical in optical transport networks, and Huawei addresses these needs with robust protection mechanisms. The DWDM system supports 1+1, 1:1, and shared protection schemes, offering flexible options for network survivability. The 1+1 protection provides immediate backup by duplicating the working channel, ensuring zero service interruption. The 1:1 protection allocates a dedicated backup channel that can be activated when needed, while shared protection optimizes resource utilization by sharing backup capacity across multiple channels. These protection mechanisms guarantee high availability and rapid recovery from faults.

Effective management and control of the DWDM system are streamlined through support for multiple management protocols such as SNMP (Simple Network Management Protocol), NETCONF (Network Configuration Protocol), and TL1 (Transaction Language 1). This multi-protocol support enables network administrators to monitor, configure, and troubleshoot the system efficiently using standard network management tools. It also allows for seamless integration with existing network management systems, ensuring operational consistency and ease of use.

In addition to its core DWDM capabilities, the Huawei ecosystem includes complementary products like the Fiber Optic CWDM DWDM AAWG Module and the HUAWEI Storage Server, which further enhance network performance and storage solutions. The Fiber Optic CWDM DWDM AAWG Module provides precise wavelength multiplexing and demultiplexing, enabling flexible and scalable optical network designs. Meanwhile, the HUAWEI Storage Server offers reliable, high-capacity storage solutions that integrate smoothly with Huawei’s networking equipment, creating a unified infrastructure for data transmission and storage needs.

Overall, the Huawei DWDM product stands out as a comprehensive, high-performance optical transmission solution. Its support for flexible channel spacing, advanced EDFA amplification, standard physical dimensions, and versatile protection mechanisms make it an ideal choice for modern telecommunications networks. The integration with Huawei NE40 Router and the availability of supporting modules like the Fiber Optic CWDM DWDM AAWG Module and HUAWEI Storage Server demonstrate Huawei’s commitment to delivering end-to-end networking and data solutions, empowering carriers and enterprises to build future-proof, scalable, and highly reliable networks.

Features:

• Product Name: Huawei DWDM
• Channel Spacing: 50 GHz, 100 GHz
• Ports: HONGKONG Port & Shenzhen Port
• Physical Dimensions: Standard 19-inch Rack Mount
• Amplification Type: EDFA (Erbium-Doped Fiber Amplifier)
• Management Protocols: SNMP, NETCONF, TL1
• Compatible with HUAWEI Storage Server
• Supports Fiber Optic CWDM DWDM AAWG Module
• Includes Fiber Optic CWDM DWDM AAWG Module for enhanced performance

Technical Parameters:

Applications:

The Huawei DWDM product, model NE40-X8A from Huawei Telecom, is a cutting-edge solution designed to meet the demanding needs of modern telecommunications networks. With a maximum capacity of up to 400 Gbps per wavelength, this SDH PDH equipment supports high-speed data transmission, making it ideal for large-scale data centers, enterprise networks, and service providers looking to enhance their bandwidth capabilities.

One of the key application occasions for the Huawei NE40-X8A is in backbone network deployments where high-capacity and reliable data transmission is crucial. Its support for channel spacing of 50 GHz and 100 GHz allows for flexible wavelength allocation, optimizing the use of available spectrum and enabling efficient network scaling. This makes it suitable for metropolitan area networks (MANs), long-haul transport, and inter-data center connectivity.

The Huawei DWDM system integrates seamlessly with other Huawei network devices such as the HUAWEI Storage Server and Huawei NE40 Router, creating a comprehensive and robust network infrastructure. The combination of these devices ensures efficient data storage, routing, and high-speed optical transport, which is essential for cloud computing, big data applications, and multimedia services.

In terms of network topology, the NE40-X8A supports point-to-point, ring, and mesh configurations, providing versatile deployment options tailored to specific network requirements. For example, point-to-point topology is ideal for direct interconnection between two sites, while ring and mesh topologies offer enhanced redundancy and resilience, which are critical in maintaining network uptime and service quality.

The device operates reliably under varying environmental conditions, with an air pressure tolerance ranging from 70 KPa to 106 KPa, ensuring stable performance in diverse geographical locations and altitude variations. This robustness makes the Huawei DWDM product suitable for a wide range of scenarios, from urban centers to remote areas.

Overall, the Huawei Telecom NE40-X8A DWDM solution is perfect for telecommunications operators and enterprises seeking to build high-capacity, scalable, and resilient optical networks. Its advanced features and compatibility with equipment like the HUAWEI Storage Server and Huawei NE40 Router position it as a vital component for next-generation network infrastructure, supporting the ever-increasing demand for bandwidth and reliable data transmission.

Packing and Shipping:

Product Packaging:

The Huawei DWDM product is carefully packaged to ensure safety and integrity during transportation. The packaging includes anti-static materials, shock-absorbing foam, and a sturdy outer box designed to protect the equipment from physical damage and environmental factors. Each package contains the DWDM unit, necessary cables, user manuals, and installation guides, all securely arranged to prevent movement inside the box.

Shipping:

Huawei DWDM products are shipped using reliable logistics partners to guarantee timely and secure delivery. The products are labeled clearly with handling instructions and tracking information. Depending on the destination and customer requirements, shipping options include air freight, sea freight, and express courier services. All shipments comply with international shipping regulations and Huawei’s quality standards to ensure that the product arrives in optimal condition.

FAQ:

Q1: What is the Huawei Telecom NE40-X8A DWDM product used for?

A1: The Huawei Telecom NE40-X8A is a Dense Wavelength Division Multiplexing (DWDM) system designed to increase bandwidth over existing fiber networks by multiplexing multiple optical carrier signals on a single fiber. It is commonly used in telecommunications networks to support high-capacity data transmission.

Q2: What are the key features of the Huawei NE40-X8A DWDM system?

A2: The NE40-X8A offers high integration, flexible networking, and excellent scalability. It supports high-density channel configurations, advanced optical amplification, and intelligent network management to ensure efficient and reliable transmission over long distances.

Q3: What types of network topologies does the NE40-X8A support?

A3: The Huawei NE40-X8A supports various network topologies including point-to-point, ring, and mesh configurations, enabling versatile deployment options to meet different network requirements.

Q4: Can the NE40-X8A DWDM system support multiple data protocols?

A4: Yes, the NE40-X8A supports a wide range of data protocols such as Ethernet, SDH/SONET, OTN, and Fibre Channel, making it suitable for diverse telecom and data center applications.

Q5: How does Huawei ensure the performance and reliability of the NE40-X8A?

A5: Huawei Telecom employs advanced technologies such as forward error correction (FEC), dynamic gain equalization, and comprehensive network management tools to optimize the performance and reliability of the NE40-X8A DWDM system.
