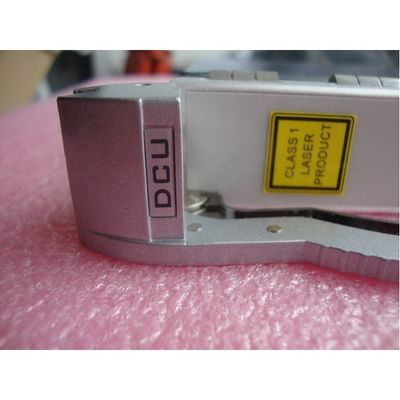

EDFA Amplification Type Huawei DWDM Platform Compatible With SDH PDH Equipment Operating Air Pressure 70 KPa To 106 KPa Optical Network

Product Description:

The Huawei DWDM product is a cutting-edge solution designed to meet the increasing demands of modern optical communication networks. It supports a wide range of wavelengths, specifically operating within the C-band and L-band, which allows for flexible and efficient wavelength division multiplexing. This capability ensures that network operators can maximize the utilization of their fiber infrastructure while maintaining high-quality signal transmission over long distances.

One of the standout features of the Huawei DWDM system is its robust protection mechanisms. It offers multiple protection options including 1+1, 1:1, and Shared Protection, providing network resilience and reliability. These protection schemes ensure that in the event of a fiber cut or equipment failure, data transmission can continue seamlessly, minimizing downtime and service disruption. This level of protection is critical for mission-critical applications and services that demand high availability.

In terms of capacity, the Huawei DWDM product is designed to handle extremely high data rates, supporting up to 400 Gbps per wavelength. This high capacity per wavelength enables network operators to significantly boost their overall network throughput without the need for additional fiber infrastructure. Such a high-capacity solution is ideal for data centers, enterprise networks, and telecommunications providers looking to scale their networks efficiently.

The amplification technology employed in the Huawei DWDM system is based on the Erbium-Doped Fiber Amplifier (EDFA). EDFAs are widely recognized for their ability to amplify optical signals over long distances without converting them back to electrical signals, thereby preserving signal integrity and reducing latency. The use of EDFA technology ensures that the Huawei DWDM solution can support long-haul transmissions with minimal signal degradation.

Additionally, the product supports Time Division Multiplexing (TDM) with capacities ranging from 20 to 60 Gbit/s, enabling it to carry legacy TDM services alongside high-speed Ethernet and IP traffic. This flexibility makes the Huawei DWDM product suitable for various network scenarios, including those that require integration with existing TDM infrastructure while migrating to all-optical networks.

The Huawei DWDM system also integrates seamlessly with other Huawei network components such as the Huawei NE40 Router, enhancing overall network performance and management. The compatibility with Huawei’s networking equipment ensures smooth interoperability and simplifies network deployment and maintenance.

Complementary to the DWDM solution, Huawei offers the Fiber Optic CWDM DWDM AAWG Module, which further enhances wavelength multiplexing capabilities and spectral efficiency. This module supports precise wavelength filtering and channel isolation, essential for optimizing network performance in dense wavelength division multiplexing environments.

Furthermore, the Huawei DWDM product is an excellent complement to the HUAWEI Storage Server, providing the high-speed and reliable optical connectivity required for data-intensive storage applications. The integration between Huawei’s storage and optical networking solutions facilitates rapid data transfer, low latency, and secure storage networking environments, which are critical for enterprises and cloud service providers.

In summary, the Huawei DWDM product is a versatile, high-capacity, and reliable optical transmission solution that supports C-band and L-band wavelengths, offers robust protection mechanisms like 1+1, 1:1, and Shared Protection, and delivers up to 400 Gbps per wavelength. Its use of EDFA amplification and support for TDM capacities between 20 and 60 Gbit/s make it suitable for a wide range of applications. Coupled with Huawei’s NE40 Router, Fiber Optic CWDM DWDM AAWG Module, and HUAWEI Storage Server, it forms an integrated ecosystem that addresses the demands of modern, high-speed optical networks.

Features:

• Product Name: Huawei DWDM
• Air Pressure: 70 KPa To 106 KPa
• Compatibility: Compatible With Huawei And Third-party Optical Equipment
• Supported Wavelengths: C-band, L-band
• Protection Mechanism: 1+1, 1:1, Shared Protection
• Type: SDH PDH Equipment
• Supports Fiber Optic CWDM DWDM AAWG Module integration
• Compatible with Huawei SFP Module for enhanced connectivity
• Seamless integration with Huawei NE40 Router for optimized network performance

Technical Parameters:

Applications:

The Huawei DWDM (Dense Wavelength Division Multiplexing) product is designed to meet the demanding needs of modern high-capacity optical networks. Its support for both C-band and L-band wavelengths enables flexible deployment across a wide range of fiber optic communication scenarios. This versatility makes it ideal for backbone networks, metro networks, and data center interconnections where maximizing bandwidth and minimizing latency are critical.

One of the primary application occasions for the Huawei DWDM system is in large-scale data centers that require robust and scalable connectivity solutions. When combined with HUAWEI Storage Server environments, the DWDM product ensures high-speed, reliable data transmission with the ability to handle up to 400 Gbps per wavelength. This high capacity supports massive data flows and seamless integration with Huawei SFP Modules, ensuring optimal performance and interoperability.

In telecommunications networks, the Huawei DWDM product excels in scenarios requiring long-distance signal transmission with minimal loss. The built-in EDFA (Erbium-Doped Fiber Amplifier) technology amplifies optical signals efficiently, extending transmission distances without the need for electronic regeneration. This makes it particularly suitable for connecting metropolitan areas to regional or national backbone networks, as well as for cross-country fiber optic links.

The product's flexible channel spacing of 50 GHz and 100 GHz allows network operators to optimize spectral efficiency according to network requirements. This is especially beneficial in dense urban environments where fiber resources are limited and maximizing capacity is essential. Additionally, the Huawei DWDM system is fully compatible with both Huawei and third-party optical equipment, providing network operators with the freedom to integrate it seamlessly into existing infrastructures without vendor lock-in.

In enterprise scenarios, the Huawei DWDM solution supports high-capacity and low-latency connections between multiple office locations or data centers. This ensures continuous business operations, disaster recovery readiness, and efficient cloud computing integration. The compatibility with Huawei SFP Modules further enhances the adaptability of the system, allowing easy upgrades and expansions as network demands evolve.

Overall, the Huawei DWDM product is ideal for diverse application scenarios including telecommunications carriers, large enterprise networks, cloud service providers, and data centers. Its advanced features such as dual-band support, EDFA amplification, high channel capacity, and broad compatibility make it a future-proof solution for building resilient, high-performance optical networks.

Customization:

Huawei offers comprehensive product customization services for its DWDM product, designed to meet diverse network topology requirements including Point-to-Point, Ring, and Mesh configurations. The DWDM system is housed in a standard 19-inch rack mount, ensuring seamless integration into existing network infrastructure.

This equipment is classified as SDH PDH equipment, providing robust and reliable data transmission solutions. With a maximum capacity of up to 400 Gbps per wavelength, the Huawei DWDM product supports high-speed data transfer to accommodate growing bandwidth demands.

For efficient network management, the product supports multiple protocols such as SNMP, NETCONF, and TL1, enabling flexible and scalable network operations. Additionally, the Huawei DWDM system is fully compatible with Huawei SFP Module components, enhancing connectivity and performance.

Customers can also benefit from integration with Huawei SFP Module and HUAWEI Storage Server solutions, allowing for a comprehensive and optimized network environment tailored to specific business needs.

Support and Services:

Huawei provides comprehensive technical support and professional services for its DWDM (Dense Wavelength Division Multiplexing) products to ensure optimal performance and reliability. Our support services cover the entire product lifecycle, including pre-sales consultation, installation, commissioning, maintenance, and optimization.

Our team of experienced engineers is available to assist with system design, network planning, and troubleshooting to help you deploy and maintain your DWDM network efficiently. We offer remote and on-site technical support to quickly resolve any issues and minimize downtime.

Huawei’s DWDM technical support includes regular software updates, hardware maintenance, and access to a knowledge base with technical documentation, FAQs, and best practices. We also provide training programs tailored to your operational needs, enabling your staff to manage and operate DWDM systems confidently.

Additionally, Huawei offers customized service packages, including warranty extensions, spare parts management, and performance monitoring to ensure your DWDM network operates at peak efficiency. Our commitment is to deliver high-quality support and services to maximize the value of your investment in Huawei DWDM technology.

Packing and Shipping:

Product Packaging:

The Huawei DWDM product is securely packaged to ensure safe delivery and optimal protection during transit. The packaging includes anti-static materials to prevent electrostatic discharge, foam padding to absorb shocks, and a sturdy outer carton labeled with handling instructions. Each unit is accompanied by comprehensive documentation, including a user manual, warranty card, and installation guide.

Shipping:

Huawei DWDM products are shipped using reliable logistics partners to guarantee timely and safe delivery worldwide. The shipment is tracked from dispatch to arrival, with customs documentation prepared to facilitate smooth clearance. Depending on customer requirements, shipping options include standard, expedited, and express services, ensuring flexibility and convenience.

FAQ:

Q1: What is Huawei DWDM and what are its primary applications?

A1: Huawei DWDM (Dense Wavelength Division Multiplexing) is a high-capacity optical transmission solution that enables the transmission of multiple data channels over a single fiber by using different wavelengths. It is primarily used in telecommunications networks, data centers, and metro and long-haul backbone networks to increase bandwidth and improve network efficiency.

Q2: What are the key features of Huawei DWDM products?

A2: Huawei DWDM products offer high integration, scalable capacity, low power consumption, and excellent transmission performance. They support flexible grid technology, multi-service convergence, intelligent O&M (Operations and Maintenance), and seamless integration with existing network infrastructure.

Q3: How does Huawei DWDM support network scalability and future growth?

A3: Huawei DWDM systems support flexible channel configurations and high-density wavelength multiplexing, allowing operators to easily expand network capacity without additional fiber deployment. This scalability ensures that networks can meet increasing data demands and adapt to future technological advancements.

Q4: Can Huawei DWDM solutions interoperate with third-party equipment?

A4: Yes, Huawei DWDM solutions are designed to be interoperable with third-party optical devices and network elements. They comply with industry standards, ensuring smooth integration and multi-vendor network deployments, which helps protect existing investments and enhances network flexibility.

Q5: What management and monitoring capabilities does Huawei DWDM provide?

A5: Huawei DWDM products feature advanced intelligent management systems that provide real-time monitoring, fault detection, and performance analysis. The centralized network management platform simplifies operations, reduces maintenance costs, and improves overall network reliability and service quality.
