03031YCH CR5DNPU4807 Huawei Network Processing Unit NPU-480 For NE40E-X1-M

Negotiable
MOQ
Negotiable
Price
03031YCH CR5DNPU4807 Huawei Network Processing Unit NPU-480 For NE40E-X1-M
Features Gallery Product Description Request A Quote
Features
Specifications
Products Status: Stock, Used
Transmission Rate: >50 Mbps
Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support
Switch Capacity: >100 Gbps
Board Name Silkscreen: NPU-480
Dimensions (H X W X D): 44 Mm X 388.4 Mm X 209.3 Mm (1.73 In. X 15.29 In. X 8.24 In.)
Weight: 3.6 Kg (7.94 Lb)
Typical Power Consumption: 314.3 W
Typical Heat Dissipation: 1019.7 BTU/hour
Memory: 16G
Highlight:

03031YCH Network Processing Unit

,

NPU-480 Network Processing Unit

,

CR5DNPU4807
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: NE40E-X2-M8A
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description

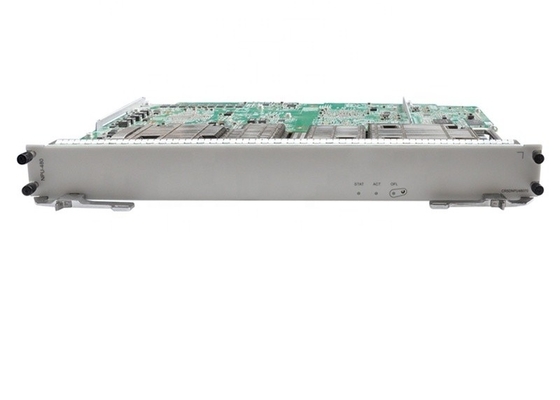

03031YCH Huawei Network Processing Unit(NPU-480) for NE40E-X1-M & NE40E-X2-M Series Universal Service Router CR5DNPU4807

03031YCH CR5DNPU48070

Network Processing Unit(NPU-480)
Device Attributes



BOM
Model
Product Type
Description
02350RHQ
CR5B0BKP0277
NE40E-X2-M8A DC
NE40E-X2-M8A Integrated DC Chassis Components
02350RHR
CR5B0BKP0275
NE40E-X2-M8A AC
NE40E-X2-M8A Integrated AC Chassis Components
03031EDK
CR5D0MPUK170
MPUK1
Main Processing Unit K1
03030QDP
CR5D00MPUK70
MPUK
Main Processing Unit K



Introduction to the Data Plane
NPUs are key parts on the NE40E and are responsible for network processing and data exchange between PICs and NPUs.
The procedure for data processing is as follows: The IP packets sent from PICs and NPU converge at a convergence module. The NP processes the IP packets. The TM module performs traffic management on the IP packets.

Technical Specifications

Item
Specification
Dimensions (H x W x D)
44 mm x 388.4 mm x 209.3 mm (1.73 in. x 15.29 in. x 8.24 in.)
Typical power consumption
314.3 W
Typical heat dissipation
1019.7 BTU/hour
Weight
3.6 kg (7.94 lb)
Ambient temperature
Long terms: 0 °C to 45 °C (32°F to 113°F) Short terms: -5 °C to 55 °C (23°F to 131°F)
Memory
16G



Product Positioning

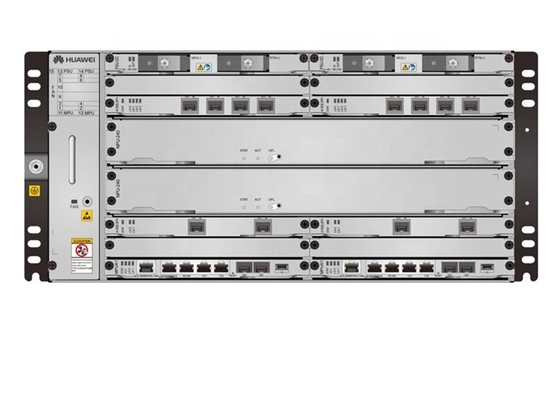

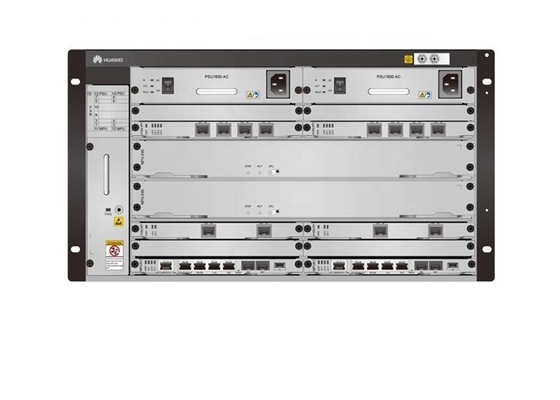

The Huawei NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A are high-end network products used to access, aggregate, and transmit carrier-class Ethernet services on Fixed-Mobile Convergence (FMC) Metropolitan Area Networks (MANs).
The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A run on the Versatile Routing Platform (VRP) operating system developed by Huawei and use hardware-based forwarding and non-blocking data switching technology. The NE40E-X1-M4, NE40E -X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A feature carrier-class reliability, line-speed forwarding capability, perfect quality of service (QoS) mechanism, service processing capabilities, and good extensibility.
The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A provide strong capabilities in network access, Layer 2 switching, and transmission of Ethernet over Multiprotocol Label Switching (EoMPLS) services. The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A also support rich interface types and provide broadband access, triple play, IP leased line, and virtual private network (VPN) services. The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A can also work in conjunction with the CX, NE, and ME devices developed by Huawei to set up a hierarchical metro Ethernet that provides rich services for customers.
Tag:

NE40E-X2-M8A Huawei Telecom Router

BP51-24xFE/GE-SFP-A

ME0DBSUFA070
