03032GLC 03032HGJ Huawei ME60 1 Port 100G Base CFP2 QSFP28 ME0D0E1NCB71

03032GLC 03032HGJ Huawei ME60 1 Port 100G Base CFP2 QSFP28 ME0D0E1NCB71

  • 03032GLC 03032HGJ Huawei ME60 1 Port 100G Base CFP2 QSFP28 ME0D0E1NCB71
03032GLC 03032HGJ Huawei ME60 1 Port 100G Base CFP2 QSFP28 ME0D0E1NCB71
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: ME0D0E1NDB71
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Products Status: Stock Dimensions (H X W X D): 37.2 Mm X 178.7 Mm X 193.3 Mm
Typical Power Consumption: 34.0 W Typical Heat Dissipation: 110.3 BTU/hour
Weight: 0.8 Kg (1.76 Lb) Board Name Silkscreen1: BP240-1x100GBase-QSFP28-A
Board Name Silkscreen2: BP240-1x100GBase-CFP2-A
High Light:

03032HGJ Huawei ME60


03032GLC Huawei ME60



03032GLC 03032HGJ Huawei ME60 (BP240) 1-Port 100GBase CFP2 QSFP28 Flexible Card ME0D0E1NCB71 ME0D0E1NDB71


Product Overview& Appearance

Board name silkscreen: BP240-1x100GBase-CFP2-A  Description: 1-Port 100GBase-CFP2 Flexible Card(BP240)  BOM: 03032GLC Model: ME0D0E1NCB71

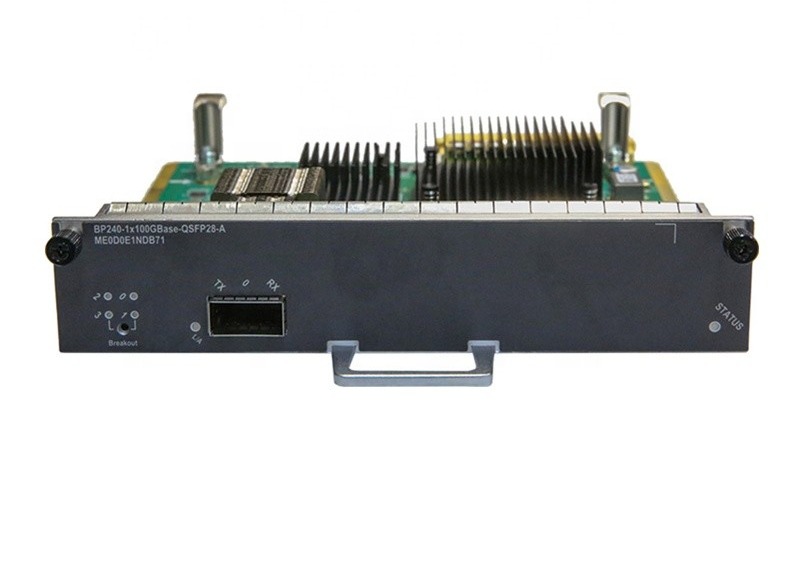

Board name silkscreen: BP240-1x100GBase-QSFP28-A Description: 1-Port 100GBase-QSFP28 Flexible Card(BP240) BOM: 03032HGJ Model: ME0D0E1NDB71


Product Overview

The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes. The ME60 uses Huawei-developed Solar series NP chips. In addition, the ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbit/s platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment. The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, carries multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. By using the ME60 and corresponding solutions, operators can construct a future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.


Product features

The ME60 has the following table Specifications:

Switching Capacity
50.32 Tbit/s
25.16 Tbit/s
12.58 Tbit/s
7.08 Tbit/s
1.08 Tbit/s
Forwarding Performance
11,520 Mpps
5,760 Mpps
5,760 Mpps
2,880 Mpps
360 Mpps
Number of Slots
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
11 slots, including 8 LPUs, 2 SRUs, and 1 SFU
5 slots, including 3 LPUs and 2 SRUs
(H x W x D)
1,778 mm x 442 mm x 650 mm (40U)
934 mm x 442 mm x 650 mm (21U)
1,420 mm x 442 mm x 650 mm (32U)
620 mm x 442 mm x 650 mm (14U)
175 mm x 442 mm x 650 mm (DC 4U);
220 mm x 442 mm x 650 mm (AC 5U)
Maximum Power Consumption
7,220W (BSUF-240)
9,040W (BSUF-480)
4,110W (BSUF-240)
4,770W (BSUF-480)
4,610W (BSUF-100)
6,210W (BSUF-240)
2,340W (BSUF-100)
3,220W (BSUF-240)
920W (BSUF-100)
Full Configuration Weight
356 kg
190 kg
279 kg
136 kg
DC: 42 kg (100G)
AC: 52 kg (100G)
Interface Types
User access protocols: PPPoE, IPoE, 802.1X, and ND access
User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS
User billing protocols: RADIUS, HWTACACS, and COPS
User authorization protocols: RADIUS, HWTACACS, and COPS
Policy protocols: COPS, COA
Maximum number of sessions supported: 64K per slot and 128K per device
Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device
Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
Supports the following:
IPv4/IPv6 dual stacks
A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE)
IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6
IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing
Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite)
Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB
Supports the following:
MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis
Inter-AS Option A, inter-AS Option B, and inter-AS Option C
Integration with Internet services
Martini MPLS L2VPN and Kompella MPLS L2VPN
Heterogeneous interworking
Multicast VPN
