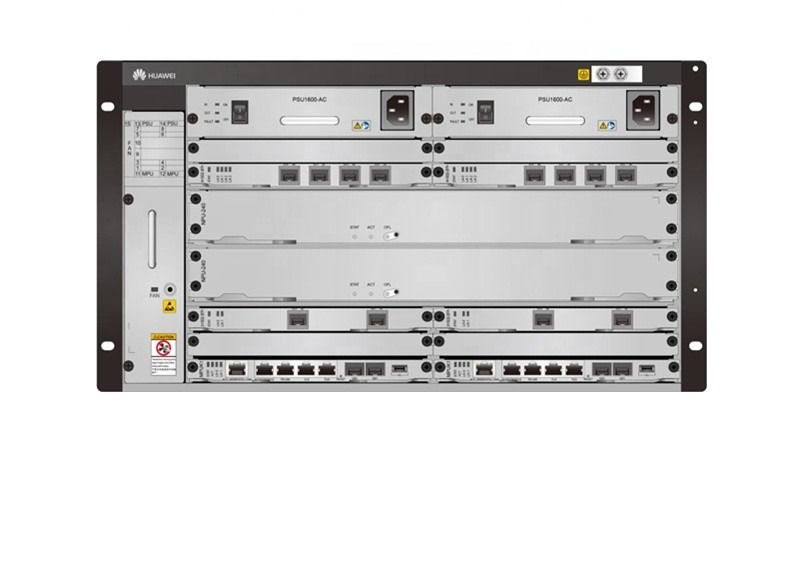

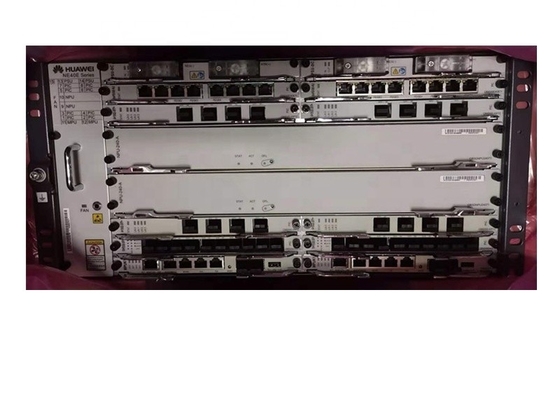

02350RHR NE40E-X2-M8A Huawei Telecom Router Integrated AC Chassis CR5B0BKP0275

Name: 02350RHR NE40E-X2-M8A Huawei Telecom Router Integrated AC Chassis CR5B0BKP0275
Brand: Huawei
SKU: NE40E-X2-M8A
Availability: InStock
ISBN: 13650631

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	NE40E-X2-M8A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Products Status:	Stock, Used	Ports:	>= 8
Transmission Rate:	>50 Mbps	Function:	LACP, POE, QoS, SNMP, Stackable, VLAN Support
Switch Capacity:	>100 Gbps	Description:	NE40E-X2-M8A Integrated AC Chassis Components
Dimensions (H X W X D):	264 Mm X 442 Mm X 220 Mm (10.39 In. X 17.4 In. X 8.66 In.)(6U)	Weight:	8.5 Kg (18.74 Lb)
Cabinet Installation Standard:	ETSI 21-inch; IEC 19-inch	Availability:	0.999999588
Slot Quantity:	8	Redundant Power Supply:	1+1
Storage Altitude:	Lower Than 5000 Meters
High Light:	NE40E-X2-M8A Huawei Telecom Router , 02350RHR Huawei Telecom Router , CR5B0BKP0275

02350RHR Huawei NE40E-X2-M8A Integrated AC Chassis Components CR5B0BKP0275

02350RHR CR5B0BKP0275

Device Attributes
BOM	Model	Product Type	Description
02350RHQ	CR5B0BKP0277	NE40E-X2-M8A DC	NE40E-X2-M8A Integrated DC Chassis Components
02350RHR	CR5B0BKP0275	NE40E-X2-M8A AC	NE40E-X2-M8A Integrated AC Chassis Components
03031EDK	CR5D0MPUK170	MPUK1	Main Processing Unit K1
03030QDP	CR5D00MPUK70	MPUK	Main Processing Unit K

Interface Numbering

Numbering rule of service interfaces on the NE40E-X2-M8A

Interface Numbering

Numbering rule of service interfaces on the NE40E-X2-M8A
Service interfaces on the NE40E-X2-M8A are numbered in the following format: 0/subcard slot number/interface number on the subcard.
* A subcard slot number is the number of the slot where an interface's subcard resides. A subcard slot number ranges from 1 to 8.
* An interface number on the subcard starts with 0, and its maximum value is determined by the actual number of interfaces on the subcard.
The following figure shows how a service interface is numbered on the NE40E-X2-M8A.

Numbering rule of service interfaces

Product Positioning

The Huawei NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A are high-end network products used to access, aggregate, and transmit carrier-class Ethernet services on Fixed-Mobile Convergence (FMC) Metropolitan Area Networks (MANs).

The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A run on the Versatile Routing Platform (VRP) operating system developed by Huawei and use hardware-based forwarding and non-blocking data switching technology. The NE40E-X1-M4, NE40E -X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A feature carrier-class reliability, line-speed forwarding capability, perfect quality of service (QoS) mechanism, service processing capabilities, and good extensibility.

The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A provide strong capabilities in network access, Layer 2 switching, and transmission of Ethernet over Multiprotocol Label Switching (EoMPLS) services. The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A also support rich interface types and provide broadband access, triple play, IP leased line, and virtual private network (VPN) services. The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A can also work in conjunction with the CX, NE, and ME devices developed by Huawei to set up a hierarchical metro Ethernet that provides rich services for customers.

Technical Specifications

Item	Specification
Dimensions (H x W x D)	DC: 222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)(5U) AC: 264 mm x 442 mm x 220 mm (10.39 in. x 17.4 in. x 8.66 in.)(6U)
Weight (default configuration)	DC:7.1 kg (15.66 lb) AC:8.5 kg (18.74 lb)
Cabinet installation standard	ETSI 21-inch; IEC 19-inch
Typical power consumption	DC:649 W(NPU-240) AC:667 W(NPU-240) DC:1009.2 W(NPU-480) AC:1063.2 W(NPU-480)
Typical heat dissipation	DC:2105.6 BTU/hour(NPU-240) AC:2164 BTU/hour(NPU-240) DC:3274.3 BTU/hour(NPU-480) AC:3449.5 BTU/hour(NPU-480)
DC input voltage	input voltage range: -40V to -72V input rated voltage: -48V/-60V
AC input voltage	input voltage range: 180V to 264V input rated voltage: 200V to 240V/100V to 127V dual live wires
MTBF	138.61 years
MTTR	0.5 hours
Availability	0.999999588
Slot quantity	8
Redundant MPUs	4.24E-02
Redundant NPUs	1:01
Redundant fans	If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C.
Redundant power supply	1+1
Forwarding performance	50 Mpps(NPU-50) 180 Mpps(NPU-120) 180 Mpps(NPU-240) 330 Mpps(NPU-480)
Switching capacity	100 Gbps(NPU-50) 240 Gbps(NPU-120) 480 Gbps(NPU-240) 960 Gbps(NPU-480)
