Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
Place of Origin: | China |
Brand Name: | Huawei |
Certification: | CE FCC RoHS |
Model Number: | NE40E-X2-M8A |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export carton package |
Delivery Time: | 7-15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 Piece/Pieces per Week |
Products Status: | Stock, Used | Ports: | >= 8 |
---|---|---|---|
Transmission Rate: | >50 Mbps | Function: | LACP, POE, QoS, SNMP, Stackable, VLAN Support |
Switch Capacity: | >100 Gbps | Description: | NE40E-X2-M8A Integrated DC Chassis Components |
Dimensions (H X W X D): | 442mm X 220mm X 222mm(5U) | Weight: | 7.1kg |
Cabinet Installation Standard: | ETSI 21-inch; IEC 19-inch | Availability: | 0.999999588 |
Slot Quantity: | 8 | Redundant Power Supply: | 1+1 |
Storage Altitude: | Lower Than 5000 Meters | ||
High Light: | 02350RHQ Huawei NE40E-X2-M8A,Integrated DC Huawei NE40E-X2-M8A,CR5B0BKP0277 |
Device Attributes
|
|
|
|
|||
BOM
|
Model
|
Product Type
|
Description
|
|||
02350RHQ
|
CR5B0BKP0277
|
NE40E-X2-M8A DC
|

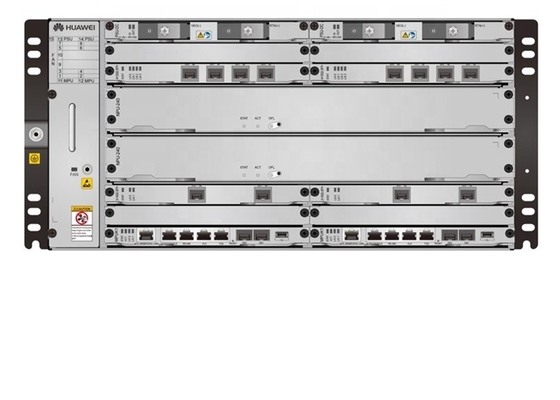

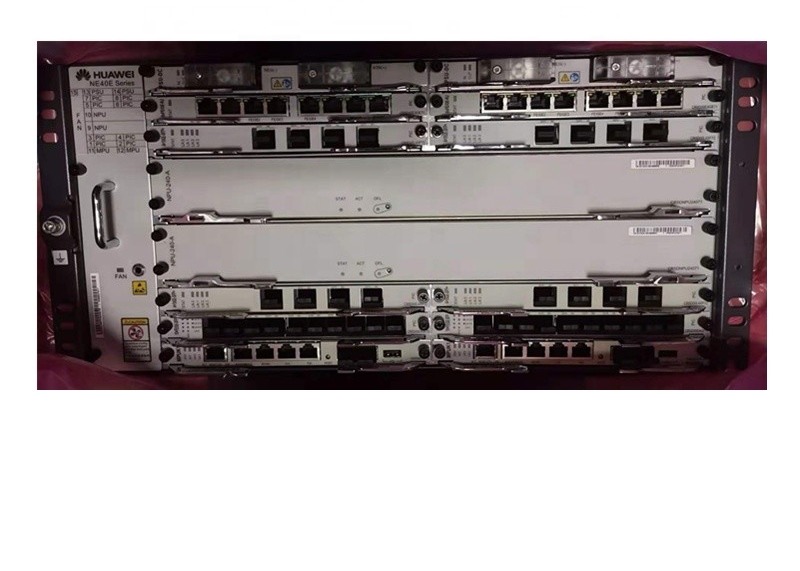

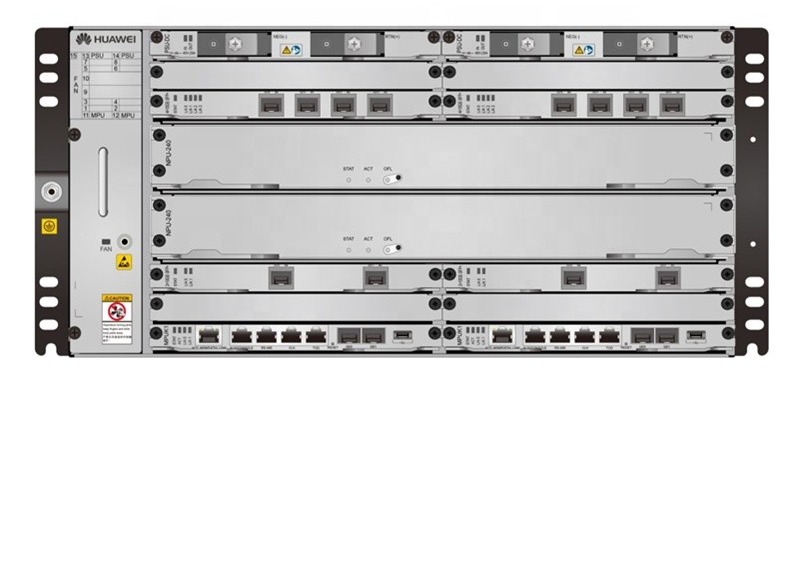

NE40E-X2-M8A Integrated DC Chassis Components
|
|||
02350RHR
|
CR5B0BKP0275
|
NE40E-X2-M8A AC
|
NE40E-X2-M8A Integrated AC Chassis Components
|
15
|
13
|
14
|
|
|
7
|
8
|
|
|
5
|
6
|
|
|
10
|
|
|
|
9
|
|
|
|
3
|
4
|
|
|
1
|
2
|
|
|
11
|
12
|
Technical Specifications
Item
|
Specification
|
Dimensions (H x W x D)
|
DC: 222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)(5U)
AC: 264 mm x 442 mm x 220 mm (10.39 in. x 17.4 in. x 8.66 in.)(6U) |
Weight (default configuration)
|
DC:7.1 kg (15.66 lb)
AC:8.5 kg (18.74 lb) |
Cabinet installation standard
|
ETSI 21-inch; IEC 19-inch
|
Typical power consumption
|
DC:649 W(NPU-240)
AC:667 W(NPU-240) DC:1009.2 W(NPU-480) AC:1063.2 W(NPU-480) |
Typical heat dissipation
|
DC:2105.6 BTU/hour(NPU-240)
AC:2164 BTU/hour(NPU-240) DC:3274.3 BTU/hour(NPU-480) AC:3449.5 BTU/hour(NPU-480) |
DC input voltage
|
input voltage range: -40V to -72V
input rated voltage: -48V/-60V |
AC input voltage
|
input voltage range: 180V to 264V
input rated voltage: 200V to 240V/100V to 127V dual live wires |
MTBF
|
138.61 years
|
MTTR
|
0.5 hours
|
Availability
|
0.999999588
|
Slot quantity
|
8
|
Redundant MPUs
|
4.24E-02
|
Redundant NPUs
|
1:01
|
Redundant fans
|
If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C.
|
Redundant power supply
|
1+1
|
Forwarding performance
|
50 Mpps(NPU-50)
180 Mpps(NPU-120) 180 Mpps(NPU-240) 330 Mpps(NPU-480) |
Switching capacity
|
100 Gbps(NPU-50)
240 Gbps(NPU-120) 480 Gbps(NPU-240) 960 Gbps(NPU-480) |
