Features Gallery Product Description Request A Quote

Features

Specifications

OptiX 155/622H: METRO1000

Port: Shenzhen

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: OptiX 155/622H

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

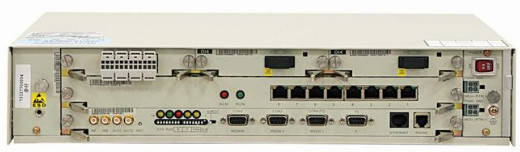

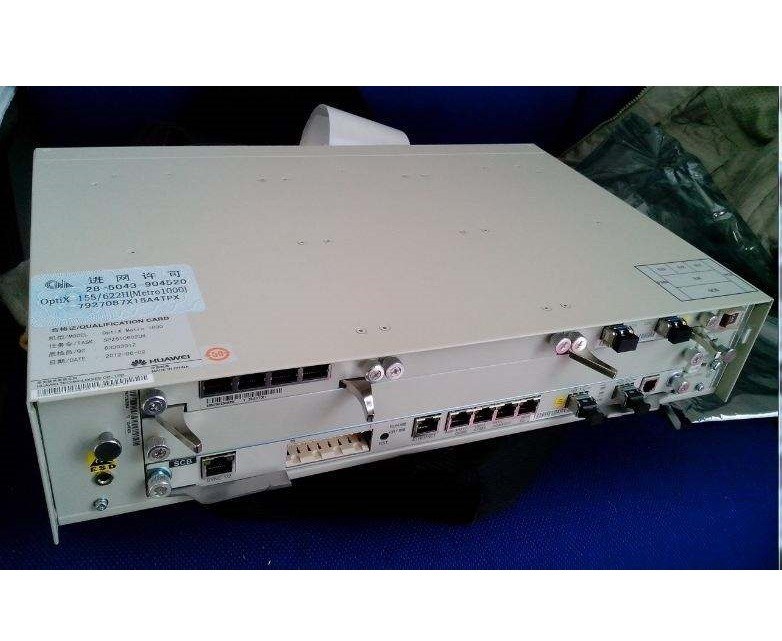

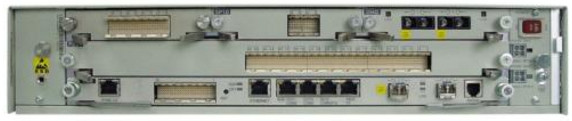

OptiX 155/622H HUAWEI Optical transmission Equipment METRO 1000

Product Description

The OptiX 155/622H is a type of STM-1/STM-4/STM-16 case-shaped equipment developed by Huawei Technologies Co., Ltd. (hereafter referred to as Huawei). The OptiX 155/622H can access multiple types of services and can be used at the access layer of metropolitan area networks (MANs) and local transmission networks to access VIP private lines, wireless base stations, and digital subscriber line access multiplexers (DSLAMs). In the case of Ethernet services, the OptiX 155/622H supports transmitting services on the following two planes on a network: the traditional time division multiplexing (TDM) plane and the packet transport network (PTN) plane. In the case that the TDM plane and the PTN plane are supported on the same network, a smooth migration from the TDM network to the PTN network can be achieved.

Name: OptiX 155/622H HUAWEI Optical transmission Equipment METRO 1000
Brand: Uonel Co.Limtied
SKU: OptiX 155/622H
Availability: InStock

Basic Networking Mode

When the OptiX 155/622H functions as the access equipment, it can construct hybrid networks with Huawei Metro and OSN equipment series. The networking modes supported by the OptiX 155/622H include the point-to-point, chain, ring, hub, and mesh.

The OptiX 155/622H supports 21.25 Gbit/s higher order cross-connections, and 5 Gbit/s lower order cross-connections. It can be configured as multiple terminal multiplexers (TMs), add/drop multiplexers (ADMs), or multiple add/drop multiplexers (MADMs). It also supports service grooming and protection among multiple systems. In this manner, the networking capability and the service grooming capability among networks are significantly improved.

Typical Networking Modes on the PTN Plane

The OptiX 155/622H can realize the function of the Ethernet services that are based on the PTN plane on the TDM network.

Figure 1 shows a typical networking mode on the PTN plane.

Figure 1 Typical networking mode on the PTN plane

Service Access Capability on the TDM Plane

On the TDM plane, the OptiX 155/622H can access multiple types of services and can be interconnected with switches, wireless base stations, and Ethernet switches.

Table 1 lists the services that the OptiX 155/622H can access and the access capability for each type of service on the TDM plane.

Table 1 Services supported by the OptiX 155/622H and the access capability for each type of service on the TDM plane

Service Type	Maximum Access Capability of a Single OptiX 155/622H NE
SDH	16xSTM-1 (o), 6xSTM-1 (e), 8xSTM-4 (o), 2xSTM-16 (o)
PDH	112xE1, 72xE1/T1, 9xE3/T3
Ethernet	24xFE (e), 8xFE (o), 3xGE (o)
DDN service	12xNx64 kbit/s (N ≤ 31), 48xFramed E1, Nx2.4kbit/s (N ≤ 18)
SHDSL	12xSHDSL (E1, Nx64 kbit/s)
ATM	4xSTM-1 ATM
Audio and data	12xaudio + 4xRS-232 + 4xRS-422

Service Access Capacity (Packet Plane)

On the packet plane, the OptiX 155/622H supports access of the FE and GE services, and can be interconnected with the equipment where the packet feature is enabled.

On the packet plane, the OptiX 155/622H can access the FE and GE services in two service forms (that is, E-Line and E-Aggr).

Table 1 lists the service access capacity of the OptiX 155/622H.

Table 1 Service access capacity of the OptiX 155/622H (packet plane)

Service Type	Maximum Access Capacity of One Set of the Equipment
FE	2xFE (o) + 4xFE (e)
GE	4xGE (o)

Table 2 lists the maximum number of services in the two forms supported by the OptiX 155/622H.

Table 2 Maximum number of services in the two forms supported by the OptiX 155/622H (packet plane)

Service Forms	Maximum Number of Services
E-Line	1024
E-Aggr	4

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options	Estimated Delivery Time
DHL	3-5 business days
Fedex	3-5 business days
By Sea	10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices

100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.

Free Technical Support:

Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Huawei product: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Company Profile

Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
