Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | SS48CXP |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

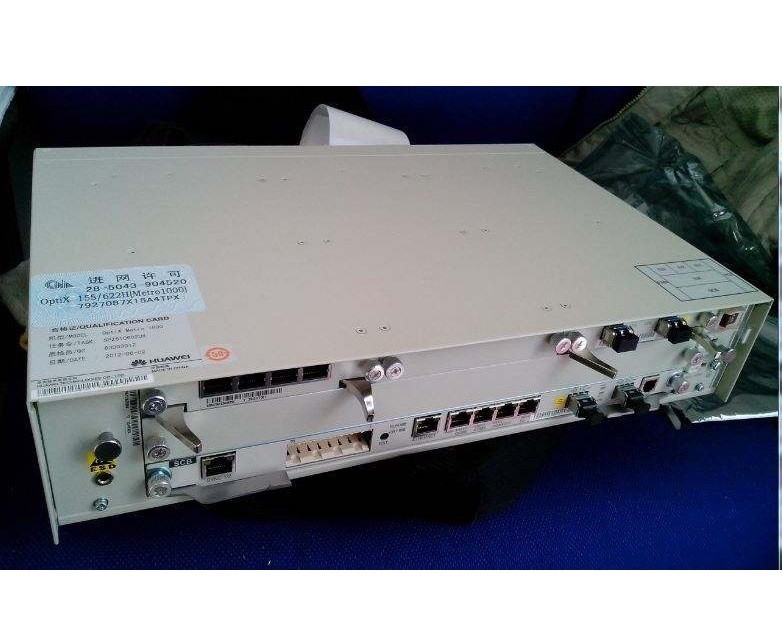

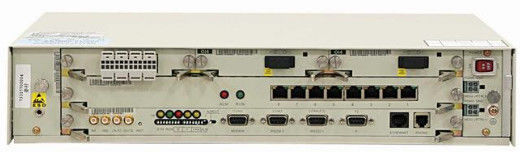

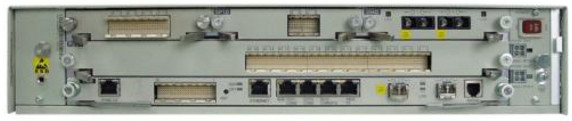

| SS48CXP: | Integrated Mixed-Service Processing Board CXP |
|---|
The CXP works with the SCB to access, process, and transfer the FE data services and GE data services.
Table 1 provides the functions and features of the CXP.
| Functional Feature | Description | ||
|---|---|---|---|
| Number of FE electrical interfaces | 4 | ||
| Number of FE optical interfaces | 2 | ||
| Number of GE optical interfaces | 4 | ||
| Connector | RJ-45 | LC | |
| Interface type | 100BASE-TX | 100Base-FX, 1000Base-SX/LX/VX/ZX | |
| Optical module | Supports the hot swappable SFP optical module. Supports a transmission distance of 500 m, 10 km, 40 km, or 80 km through the optical interfaces. Supports the colored optical interface. | ||
| Working mode | FE electrical interfaces | Auto-negotiation, 100M full-duplex | |
| FE optical interface | 100M full-duplex | ||
| GE optical interface | Auto-negotiation, 1000M full-duplex | ||
| Interface characteristics |
| ||
| Loopback function |
| ||
| Format of service frame | Provides the Layer 2 forwarding function. Supports the frame encapsulation formats that comply with IEEE 802.1q. Supports a jumbo frame with a maximum length of 9600 bytes. | ||
| Ethernet service type |
| ||
| QoS | Provides powerful QoS capabilities, including the simple flow classification and complex flow classification of the VLAN packet and MPLS packet, and the bandwidth limit function. | ||
| Link aggregation group (LAG) | Supports up to 16 LAGs. Each LAG supports up to eight LAG members. | ||
| Protection scheme |
| ||
| Clock function |
| ||
| Maintenance features |
| ||
| MPLS OAM | Supports the MPLS OAM that complies with ITU-T Y.1711. | ||
| Number of E-line services | 1024 | ||
| Number of E-Aggr services | 4 | ||
| Number of MPLS tunnels | 512 unidirectional MPLS tunnels Value range: 16 to 32K | ||
| Number of static PWs | 512 Value range: 16 to 32K | ||
| Number of QinQ links | 1024 | ||
| Number of MPLS tunnel 1+1/1:1 protection groups | 128 | ||
| WARNING: MPLS labels refer to tunnel labels and PW labels. On the OptiX 155/622H, the value of a tunnel label must be different from the value of a PW label. This is because the tunnel and PW have the same value range (16 to 32K) and they cannot use the same label at the same time. On the OptiX 155/622H, the length of an MPLS label is 2K. Thus, the value of the label must be a consecutive value string ranging from 16 to 32K. | |||
The technical specifications of the CXP include the parameters specified for interfaces, dimensions, weight, and power consumption.
Table 1 lists the parameters specified for the electrical interfaces of the CXP.
| Parameter | Value |
|---|---|
| Nominal bit rate | 100 Mbit/s |
| Line code pattern | MLT-3 encoding signals (100 Mbit/s) |
| Connector | RJ-45 connector |
| Type of electrical interface | 100BASE-TX |
| Specifications of the electrical interface | Complies with IEEE 802.3. |
Table 2 lists the parameters specified for the optical interfaces of the CXP.
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Nominal bit rate | 100/1000 Mbit/s | ||||
| Line code pattern | 8B/10B encoding signals | ||||
| Type of optical interface | 100BASE-FX | 1000BASE-SX | 1000BASE-LX | 1000BASE-VX | 1000BASE-ZX |
| Type of fiber | Single-mode LC | Multi-mode LC | Single-mode LC | Single-mode LC | Single-mode LC |
| Central wavelength (nm) | 1310 | 850 | 1310 | 1310 | 1550 |
| Maximum transmission distance (km) | 15/2 | 0.5 | 10 | 40 | 80 |
| Launched optical power (dBm) | -15 to -8/-19 to -14 | -9.5 to 0 | -9 to -3 | -4.5 to 0 | -2 to +5 |
| Receiver sensitivity (dBm) | -28/-30 | -17 | -19 | -23 | -22 |
| Minimum overload (dBm) | -7/-14 | 0 | -3 | -3 | -3 |
Table 3 lists the parameters specified for the colored optical interfaces of the CXP.
| Item | Specification | |||||||
|---|---|---|---|---|---|---|---|---|
| Nominal bit rate | 1.25 Gbit/s | |||||||
| Operating wavelength range (nm) | 1471-1611 | |||||||
| Launched optical power (dBm) | 0-5 | |||||||
| Receiver sensitivity (dBm) | -19 | |||||||
| Minimum overload (dBm) | -3 | |||||||
| Minimum extinction ratio (dB) | 9 | |||||||
| Side mode suppression ratio (dB) | 30 | |||||||
| Maximum receiver R-point reflectance (dBm) | -27 | |||||||
| Maximum transmission distance (km) | 80 | |||||||
The mechanical specifications of the CXP are as follows:
The maximum power consumption of the CXP at room temperature (25°C) is 55 W.
