Functions

• Accesses STM-1 optical signals.

• Provides four types of optical interfaces: Ie-1, S-1.1, L-1.1 and L-1.2.

• The OI2S and OI2D boards can provide the synchronous clock source for the clock unit.

• Supports MSP and SNCP.

• Supports the ALS function.

• Provides DCCs and orderwire communication.

• Supports inloop and outloop.

• The OI2S and OI2D boards supports the pluggable optical module.

Table 1 lists the functions of the OI2S, OI2D, SL1Q, and SL1O boards.

Application

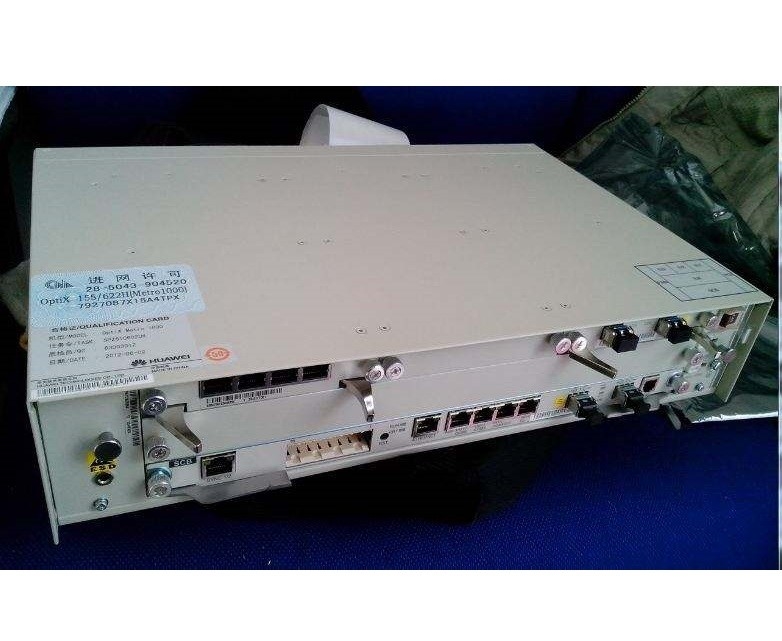

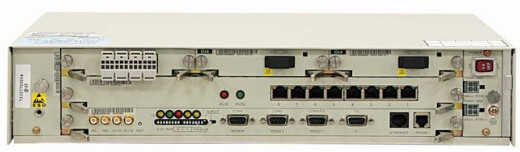

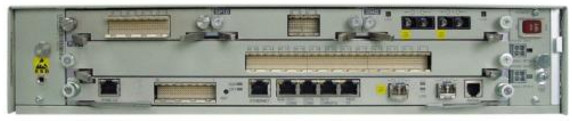

When the OptiX 155/622H uses the STM-1 optical interface board, the equipment can implement the following functions:

• Forms rings or chains operating at the STM-1 rate.

• Forms rings or chains operating at the STM-1 rate with other equipment, such as the OptiX 155/622 and the OptiX 2500+.

• Provides STM-1 interfaces for interconnection with third-party equipment.

• The SL1Q and SL1O boards do not support MSP but support SNCP. The SL1Q and SL1O boards are mainly connected to the low-level transmission equipment, such as the OptiX Metro 500 and the OptiX Metro 100.
