Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | SSN1FAN |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

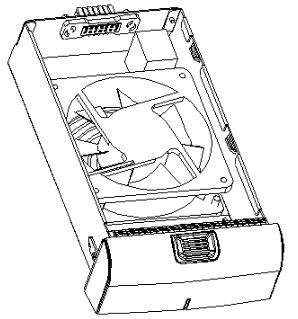

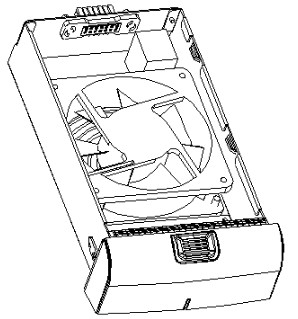

| SSN1FAN: | Fan Board | Port: | Shenzhen |
|---|
The FAN adjusts the fan speed, checks the fan status, reports the fault on the fan control board, and reports the off-position alarm of the fan.
The average life of a fan assembly varies according to its environment:
The preceding life spans are the average values concluded based on the test data in a lab and the theoretical model, rather than the actual values. They are for reference only. The actual life span must be determined based on the environment conditions of a specific area. In addition, the previous life spans do not indicate that a fan tray assembly becomes unavailable immediately at the end of its life span. They are used to prompt users to replace the fan tray assembly in time.
Table 1 provides the functions and features of the FAN.
| Function and Feature | FAN |
|---|---|
| Function of intelligent speed adjustment | Provides the following functions of intelligent speed adjustment:
NOTE: The temperature difference is the one between the current temperature measured on the equipment board and the highest normal operating temperature that the board supports. For example, if the board supports a highest normal operating temperature of 80°C and the currently measured temperature is 35°C, the temperature difference is 45°C. If the temperature difference is less than 43°C, the fans operate at a low speed. However, if the currently measured temperature rises to 50°C, the temperature difference is 30°C, which is less than 33°C. Then, the fans operate at a high speed. |
| Hot swapping function | Provides the hot swapping function for the fan tray assembly. |
| Backup function | Provides the mutual backup function for the power supplies of the fans in the fan tray assemblies. |
| Status checking | Supports the checking of the fan status. |
| Alarm function | Reports the fan alarm and in-service information. |
| Fan backup | Each subrack contains three fan tray assemblies. Two fans are available in each fan tray assembly and function as a backup for each other. The two fans operate at the same time at the same speed in normal cases. When one fan is faulty, the other fan is adjusted to operate at full speed. |
The technical specifications of the FAN include the mechanical specifications, power consumption, and working voltages.
The mechanical specifications of the FAN are as follows:
At room temperature (25°C), the maximum power consumption of each fan assembly of the XE1FAN is 15 W when the input voltage is -48 V.
The working voltages of the FAN is as follows:
