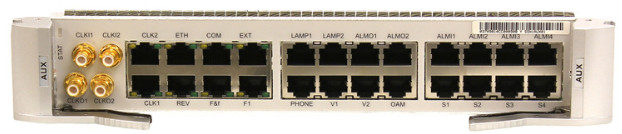

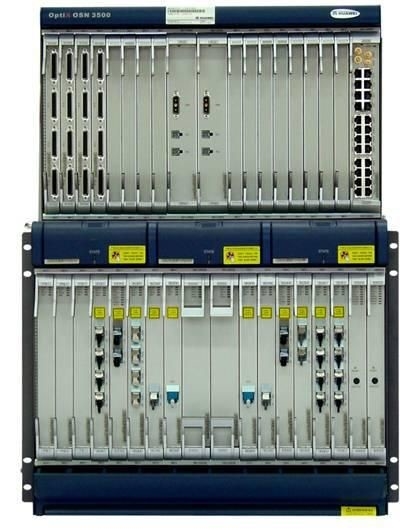

OptiX OSN 3500 SSN1AUX system auxiliary interface board-- OSN3500

Name: OptiX OSN 3500 SSN1AUX system auxiliary interface board-- OSN3500
Brand: Huawei
SKU: SSN1AUX
Availability: InStock
ISBN: 14209629

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	SSN1AUX

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Fiber Identifier	SSN1AUX:	System Auxiliary Interface Board

Functions and Features

The AUX provides various management and auxiliary interfaces for the system, and provides the centralized backup for the +3.3 V power supply of the boards in the subrack.

Table 1 provides the functions and features of the AUX.

Table 1 Functions and features of the AUX

Item	AUX
Management interface	Provides the OAM interface, which supports the X.25 protocol. Provides the management serial interface F&f. Provides the 10M/100M NM interface.
Auxiliary interface	Provides the serial interfaces Serial 1-Serial 4, which can function as four broadcast data interfaces or two pairs of time interfaces. The two functions of the interfaces are mutually exclusive. The two pairs of time interfaces work in full-duplex mode and support synchronous time input and output of two channels. Both the time interface and the broadcast data interface support the RS-422 level and RS-232 level. Provides one F1 interface for the 64 kbit/s codirectional data channel.
External time interface	Supports the input and output of two channels of time signals, with the external time transmitted in 1pps+TOD mode. For details about the external time input and output interfaces, see Table 2 and Table 3.
Clock interface	Provides two BITS clock input interfaces (CLK1 or CLK2) and two BITS clock output interfaces (CLK1 or CLK2) (impedance: 120 ohms). Provides two BITS clock input interfaces (CLKI1 or CLKI2) and two BITS clock output interfaces (CLKO1 or CLKO2)(impedance: 75 ohms).
Alarm interface	Provides 16-input and 4-output alarm interfaces. Provides 4-output alarm cascading interfaces.
Cabinet alarm indicator	Provides four cabinet alarm indicator output interfaces. Provides four cabinet alarm indicator input cascading interfaces.
Orderwire interface	Provides two NNI connection signaling interfaces. Provides one orderwire phone interface. Provides two NNI voice interfaces.
Interface used for communication with external boards	Provides one interface used for communication with external boards
Internal communication	Realizes communication between boards in the subrack.
Power supply backup and checking	Monitors the two independent -48 V power supplies, detects the overvoltage (-72 V) and undervoltage (-38.4 V) conditions, and reports alarms to the SCC unit in the case of overvoltage or undervoltage occurs. Provides the centralized backup for the +3.3 V power supply of the boards in the subrack, which realizes the 1:N protection for the secondary power supply of each board. Detects the overvoltage (+3.8 V) and undervoltage (+3.1 V) conditions for the +3.3 V backup power supply.
Audible alarm	Supports the audible alarm and the clearing of the audible alarm.
Ethernet port connection status checking	Supports the checking of the Ethernet port connection status.
Note: The COM interface is used only for communication with external boards and must not be used at will. Otherwise, the Ethernet communication between boards may become abnormal.

Table 2 External time input interfaces

External Time Input	TOD-Related Interface^a	1pps-Related Interface
Channel 1	S1	S3 (using the RS422 level)
Channel 1	S1	ALMI4 (using the TTL level)
Channel 2	S2	S4 (using the RS422 level)
Channel 2	S2	ALMI4 (using the TTL level)
a: The TOD-related interfaces can use the RS232 level or RS422 level as required. NOTE: Ports S1 and S3 are paired. Ports S2 and S4 are paired.

Table 3 External time output interfaces

External Time Output	TOD-Related Interface^a	1pps-Related Interface
Channel 1	S1	S3 (using the RS422 level)
Channel 2	S2	S4 (using the RS422 level)
a: The TOD-related interfaces can use the RS232 level or RS422 level as required. NOTE: Ports S1 and S3 are paired. Ports S2 and S4 are paired.

Technical Specifications of the AUX

The technical specifications of the AUX include the mechanical specifications and power consumption.

Mechanical Specifications

The mechanical specifications of the AUX are as follows:

Dimensions (mm): 44.0 (W) x 125.2 (D) x 261.4 (H)
Weight: 1.0 kg

Power Consumption

At room temperature (25°C), the maximum power consumption of the AUX is 19 W.
