Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |

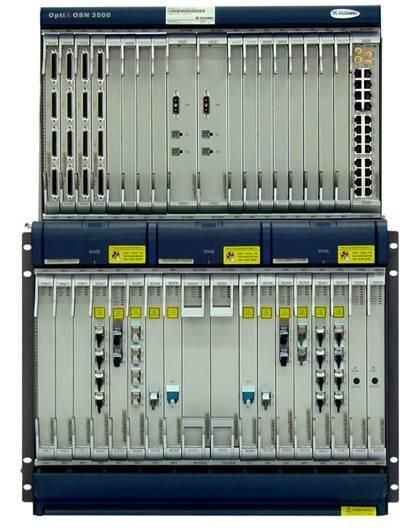

| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | SSN1LWX |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | Fiber Identifier | SSN1LWX: | Arbitrary Bit Rate Wavelength Conversion Board |
|---|
The LWX converts a wavelength at an arbitrary rate (10 Mbit/s to 2.7 Gbit/s, NRZ code) on the client side into a standard wavelength defined in ITU-T G.692, and performs the reverse process.
The LWX supports the optical wavelength conversion, 3R function, protection, and loopback function.
Table 1 provides the functions and features of the LWX.
| Function and Feature | LWX | |
|---|---|---|
| Basic functions | Converts a wavelength on the client side into a standard wavelength defined in ITU-T G.692 (DWDM), and performs the reverse process. Transparently transmits signals. | |
| 3R function | Provides the 3R function for the signals at a rate ranging from 10 Mbit/s to 2.7 Gbit/s on the client side, restores the clock, and monitors the rate. | |
| Protection schemes | Single fed and single receiving | Supports the inter-board protection and 1+1 inter-board hot standby protection. The protection switching time is less than 50 ms. |
| Dual fed and selective receiving | Supports the intra-board protection. One board can realize the optical channel protection. The protection switching time is less than 50 ms. | |
| ALS function | Supports the ALS function. When the LWX does not receive light, the LWX automatically turns off the corresponding optical transmit module. | |
| Loopback function | Supports inloops and outloops at optical interfaces so that faults can be located quickly. | |
| Performance and alarm monitoring | Reports various alarms and performance events, which facilitates the maintenance of the equipment. | |
| Central wavelength | Supports the standard wavelengths defined in ITU-T Recommendations. The channel spacing is 100 GHz. | |
| Board | Feature Code | Signal Receive/Transmit Scheme |
|---|---|---|
| SSN1LWX01 | 01 | Single fed and single receiving |
| SSN1LWX02 | 02 | Dual fed and selective receiving |
The technical specifications of the LWX include the parameters specified for optical interfaces, the safety class of the laser, mechanical specifications and power consumption.
Table 1 and Table 2 list the parameters specified for the client-side and WDM-side optical interfaces of the LWX.
| Parameter | Value | ||
|---|---|---|---|
| Nominal bit rate | 10 Mbit/s to 2.7 Gbit/s | ||
| Line code pattern | NRZ | ||
| Type of fiber | Single-mode LC | Single-mode LC | Single-mode LC |
| Transmission distance (km) | 15 | 40 | 80 |
| Characteristics of the transmitter at point S | |||
| Operating wavelength range (nm) | 1260 to 1360 | 1260 to 1360 | 1500 to 1580 |
| Maximum mean launched power (dBm) | 0 | +3 | +3 |
| Minimum mean launched power (dBm) | -5 | -2 | -2 |
| Minimum extinction ratio (dB) | +8.2 | +8.2 | +8.2 |
| Minimum side mode suppression ratio (dB) | 30 | 30 | 30 |
| Eye pattern mask | Complies with the mask defined in ITU-T G.957. | Complies with the mask defined in ITU-T G.957. | Complies with the mask defined in ITU-T G.957. |
| Characteristics of the receiver at point S | |||
| Receiver type | PIN | APD | APD |
| Receiver wavelength range (nm) | 1200 to 1600 | 1200 to 1600 | 1200 to 1600 |
| Receiver sensitivity (dBm) | -18 | -27 | -28 |
| Minimum overload (dBm) | 0 | -9 | -9 |
| Maximum reflectance (dB) | -27 | -27 | -27 |
| Parameter | Value | |||
|---|---|---|---|---|
| Channel spacing (GHz) | 100 | |||
| Line code pattern | NRZ | |||
| Characteristics of the transmitter at point Sn | ||||
| Transmission distance (km) | 640 | 170 (2 mW) | 170 (10 mW) | 360 |
| Maximum mean launched power (dBm) | +3 | +3 | +7 | +3 |
| Minimum mean launched power (dBm) | -2 | -2 | 5 | -2 |
| Minimum extinction ratio (dB) | +10 | +10 | +10 | +10 |
| Nominal central frequency (THz) | 192.10 to 196.00 | 192.10 to 196.00 | 192.10 to 196.00 | 192.10 to 196.00 |
| Central frequency deviation (GHz) | ±12.5 | ±12.5 | ±12.5 | ±12.5 |
| Maximum -20 dB spectral width (nm) | 0.2 | 0.4 | 0.4 | 0.4 |
| Minimum side mode suppression ratio (dB) | 35 | 35 | 35 | 35 |
| Dispersion compensation (ps/nm) | 12800 | 3400 | 3400 | 7200 |
| Eye pattern mask | Complies with the mask defined in ITU-T G.957. | Complies with the mask defined in ITU-T G.957. | Complies with the mask defined in ITU-T G.957. | Complies with the mask defined in ITU-T G.957. |
| Characteristics of the receiver at point Rn | ||||
| Receiver type | APD | PIN | ||
| Receiver wavelength range (nm) | 1200 to 1600 | 1200 to 1600 | ||
| Receiver sensitivity (dBm) | -28 | -18 | ||
| Minimum overload (dBm) | -9 | 0 | ||
| Maximum reflectance (dB) | -27 | -27 | ||
The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).
The mechanical specifications of the LWX are as follows:
The maximum power consumption of the LWX at room temperature (25°C) is 30 W.
