Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | SSN1ADQ112 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

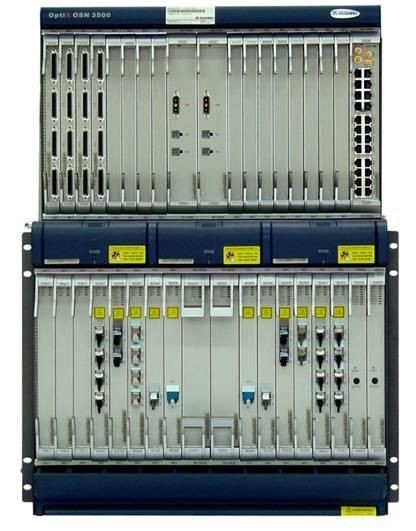

| Type: | Fiber Identifier | SSN1ADQ112: | 4xSTM-1 ATM Service Processing Board, L-1.2 |
|---|
The ADQ1 supports the ATM switching and ATM protection.
Table 1 provides the functions and features of the ADQ1.
| Function and Feature | ADQ1 |
|---|---|
| Basic functions | Transmits/Receives and processes 4xSTM-1 ATM services. |
| Type of optical interface | Supports different types of standard optical interfaces, namely, the Ie-1, S-1.1, L-1.1, L-1.2, and Ve-1.2. The characteristics of the optical interfaces of the S-1.1, L-1.1, and L-1.2 types comply with ITU-T G.957. The characteristics of the optical interfaces of the Ie-1 and Ve-1.2 types comply with the standards defined by . |
| Connector type | LC |
| Optical module type | SFP |
| E3 ATM interface | Supports 12xE3 signals, which are accessed through the PD3, PL3, or N1PL3A. |
| IMA function | Does not support the IMA function. |
| Maximum uplink bandwidth | Supports a bandwidth of 8xVC-4s, or a bandwidth of 12xVC-3s and 4xVC-4s. NOTE: Only VC-4s numbered 5-8 support the binding of VC-3 paths. A VC-4 cannot be bound with VC-3 and VC-4 paths at the same time. VCTRUNK1-VCTRUNK4 can be bound with VC-4s numbered 1-4 only. VCTRUNK5-VCTRUNK16 can be bound with VC-4s numbered 5-8 or VC-3s numbered 1-12. |
| ATM switching capability | Unidirectional: 1.2 Gbit/s; bidirectional: 600 Mbit/s |
| Mapping granularities | Supports VC-3, VC-4, and VC4-Xv (X = 1-4) granularities. |
| Service types | Supports the CBR, rt-VBR, nrt-VBR and UBR. |
| Number of supported ATM connections | 2048 |
| Statistical multiplexing | Supports the statistical multiplexing. |
| Flow types and QoS | Complies with IETF RFC2514 and ATM forum TM4.0. |
| ATM multicast connection | Supports the spatial multicast and logical multicast. |
| ATM protection (ITU-T I.630) | Supports the unidirectional/bidirectional 1+1, unidirectional/bidirectional 1:1, VP-Ring, and VC-Ring protection schemes. |
| OAM functions (ITU-T I.610) | Supports the AIS, RDI, LB, and CC. |
| Maintenance features | Supports inloops at the ATM layer and on optical interfaces. Supports outloops at the ATM layer. These features can be used to locate faults quickly. |
| Alarms and performance events | Reports various alarms and performance events, which can be used to locate faults and maintain the equipment. |
| Board | Feature Code | Type of Optical Interface |
|---|---|---|
| SSN1ADQ110 | 10 | S-1.1 |
| SSN1ADQ111 | 11 | L-1.1 |
| SSN1ADQ112 | 12 | L-1.2 |
| SSN1ADQ113 | 13 | Ve-1.2 |
| SSN1ADQ114 | 14 | Ie-1 |
The technical specifications of the ADQ1 include the parameters specified for optical interfaces, laser safety class, mechanical specifications, and power consumption.
Table 1 lists the parameters specified for the optical interfaces of the ADQ1.
| Port type | Description |
|---|---|
| Ie-1 | 2 km STM-1 two-fiber bidirectional optical interfaces |
| S-1.1 | 15 km STM-1 two-fiber bidirectional optical interfaces |
| L-1.1 | 40 km STM-1 two-fiber bidirectional optical interfaces |
| L-1.2 | 80 km STM-1 two-fiber bidirectional optical interfaces |
| Ve-1.2 | 100 km STM-1 two-fiber bidirectional optical interfaces |
The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).
The mechanical specifications of the ADQ1 are as follows:
The maximum power consumption of the ADQ1 at room temperature (25°C) is 41 W.
