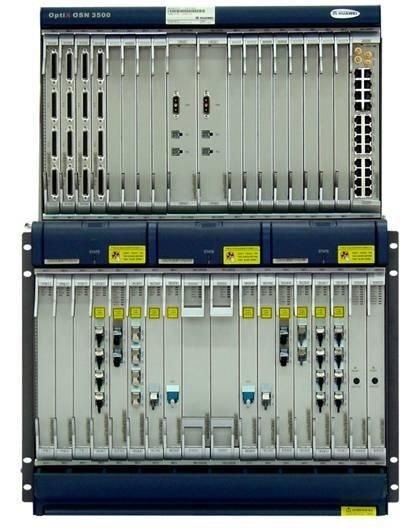

OptiX OSN 3500 SSN1SL6405 1xSTM-64 optical interface board-- OSN3500

Name: OptiX OSN 3500 SSN1SL6405 1xSTM-64 optical interface board-- OSN3500
Brand: Huawei
SKU: SSN1SL6405
Availability: InStock
ISBN: 14209438

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	SSN1SL6405

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Fiber Identifier	SSN1SL6405:	1xSTM-64 Optical Interface Board, L-64.2b

Functions and Features

The SL64 receives and transmits 1xSTM-64 optical signals and processes overhead bytes.

Table 1 describes the functions and features of the SL64.

Table 1 Functions and features of the SL64

Function and Feature	Description
Basic functions	Transmits and receives 1xSTM-64 optical signals.
Specifications of the optical interface	The N1SL64/N2SL64 supports different types of standard optical interfaces, namely, the I-64.1, I-64.2, S-64.2b, L-64.2b (BA), Le-64.2, Ls-64.2, and V-64.2b (BA + PA + dispersion compensation unit (DCU)). The characteristics of the optical interfaces of the S-64.2b, L-64.2b, Ls-64.2, and V-64.2b types comply with ITU-T G.691 and ITU-T G.692. The characteristics of the optical interface of the Le-64.2 type comply with the standards defined by . The N4SL64 supports different types of standard optical interfaces, namely, the I-64.1, S-64.2b, Le-64.2, P1L1-2D2, and V-64.2b (BA + PA + DCU). The characteristics of the optical interfaces of the I-64.1, S-64.2b, Le-64.2, and V-64.2b types comply with ITU-T G.691. The characteristics of the optical interface of the P1L1-2D2 type comply with ITU-T G.959. The N1SL64/N2SL64 supports the DWDM colored optical interfaces, which use LC connectors. The DWDM optical interface supports the transmission distance of 40 km. The N4SL64 supports the CWDM and DWDM colored optical interfaces. The optical interface uses the LC connector. The CWDM optical interface supports the transmission distance of 70 km, and the DWDM optical interface supports the transmission distance of 40 km and 80 km. N4SL64 supports one-fiber bidirectional optical modules. Supports the output of the standard wavelengths that comply with ITU-T G.692 and can be directly connected to the WDM equipment.
Specifications of the optical module	Supports the detection and query of the information about the optical module. Provides the ALS function. The optical interface supports the setting of the on/off state of a laser. The N4SL64 supports the usage and detection of the pluggable XFP optical module, which facilitates the maintenance and upgrading of the optical module.
Service processing	Supports the VC-12 services, VC-3 services, and VC-4 services. The N1SL64, N2SL64, and N4SL64 support the VC-4-4c concatenation services, VC-4-8c concatenation services, Vc-4-16c concatenation services, and VC-4-64c concatenation services. The N2SL64 supports the AU-3 services.
Overhead processing	Processes the section overheads of the STM-64 signals. Supports the transparent transmission and termination of the path overheads. Supports the setting and query of the J0, J1, and C2 bytes. Supports one channel of ECC communication.
Alarms and performance events	Reports various alarms and performance events.
Specifications of the REG	Supports the setting and query of the REG working mode. With the REG function enabled, the board is in RS loopback mode and processes only the regeneration section overhead.
Protection schemes	Supports Two-fiber ring MSP. Supports Four-fiber ring MSP. Supports Linear MSP. Supports SNCP. Supports SNCMP. Supports SNCTP. Supports the fiber-shared virtual trail protection. Supports the fiber-shared MSP and processes two sets of K bytes. One SL64 supports a maximum of two MSP rings.
Maintenance features	Supports inloops and outloops at optical interfaces. The N1SL64/N4SL64 supports inloops and outloops on VC-4 paths. Supports warm resets and cold resets. The warm reset does not affect services. Supports the query of the manufacturing information of the board. Supports the in-service loading of the FPGA. The N2SL64 supports the TCM function. Supports the upgrade of the board software without affecting services. Supports the press-to-collect function in fault data collection. The N4SL64 detects and reports voltage performance. Supports the PRBS function. For details, see Availability.

Relationship between the feature code of the SL64 and the type of optical interface

Board	Feature Code	Type of Optical Interface
SSN1SL6400	00	Fixed-wavelength optical interface
SSN4SL6401M01	01M01	Fixed-wavelength optical interface
SSN1SL6401	01	I-64.2
SSN1SL6402, SSN4SL6402	02	S-64.2b
SSN1SL6403	03	Le-64.2
SSN1SL6404	04	Ls-64.2
SSN1SL6405	05	L-64.2b
SSN1SL6406	06	V-64.2b
SSN2SL6400	00	Fixed-wavelength optical interface
SSN2SL6411	11	I-64.2
SSN2SL6412	12	S-64.2b
SSN2SL6413	13	Le-64.2
SSN2SL6402	02	S-64.2b
SSN2SL6403	03	Le-64.2
SSN2SL6404	04	Ls-64.2
SSN2SL6405	05	L-64.2b
SSN2SL6406	06	V-64.2b
SSN2SL6415	15	L-64.2b
SSN2SL6416	16	V-64.2b
SSN4SL6401	01	I-64.1
SSN4SL6402	02	S-64.2b
SSN4SL6403	03	P1L1-2D2
SSN4SL6404	04	V-64.2b
SSN4SL6405	05	Le-64.2

Technical Specifications of the SL64

The technical specifications of the SL64 include the parameters specified for optical interfaces, laser safety class, mechanical specifications, and power consumption.

Parameters Specified for Interfaces

Table 1 lists the parameters specified for the optical interfaces of the N1SL64.

Table 1 Specifications of the ports of the N1SL64/N2SL64

Port type	Description
I-64.1	2 km STM-64 two-fiber bidirectional optical interfaces
I-64.2	25 km STM-64 two-fiber bidirectional optical interfaces
S-64.2b	40 km STM-64 two-fiber bidirectional optical interfaces
L-64.2b (BA)	80 km STM-64 two-fiber bidirectional optical interfaces
Le-64.2	60 km STM-64 two-fiber bidirectional optical interfaces
Ls-64.2	80 km STM-64 two-fiber bidirectional optical interfaces
V-64.2b (BA+PA+DCU)	120 km STM-64 two-fiber bidirectional optical interfaces
40 km DWDM	40 km DWDM STM-64 optical interfaces

Table 2 list the parameters specified for the optical interfaces of the N4SL64.

Table 2 Parameters specified for the optical interfaces of the N4SL64

Port type	Description
I-64.1	2 km STM-64 two-fiber bidirectional optical interfaces
S-64.2b	40 km STM-64 two-fiber bidirectional optical interfaces
Le-64.2	60 km STM-64 two-fiber bidirectional optical interfaces
P1L1-2D2	80 km STM-64 two-fiber bidirectional optical interfaces
V-64.2b (BA+PA+DCU)	120 km STM-64 two-fiber bidirectional optical interfaces
70 km CWDM	70 km CWDM STM-64 optical interfaces
40 km DWDM	40 km DWDM STM-64 optical interfaces
80 km DWDM	80 km DWDM STM-64 optical interfaces

Laser Safety Class

The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).

Mechanical Specifications

The mechanical specifications of the SL64 are as follows:

Dimensions (mm): 25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg): 1.1

Power Consumption

The maximum power consumption of the N1SL64 at room temperature (25°C) is 30 W.

The maximum power consumption of the N2SL64 at room temperature (25°C) is 32 W.

The maximum power consumption of the N4SL64 at room temperature (25°C) is 15 W.
