Features

Specifications

Type: Fiber Identifier

SSN1PQM: 63xE1/T1 Service Processing Board

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: SSN1PQM

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

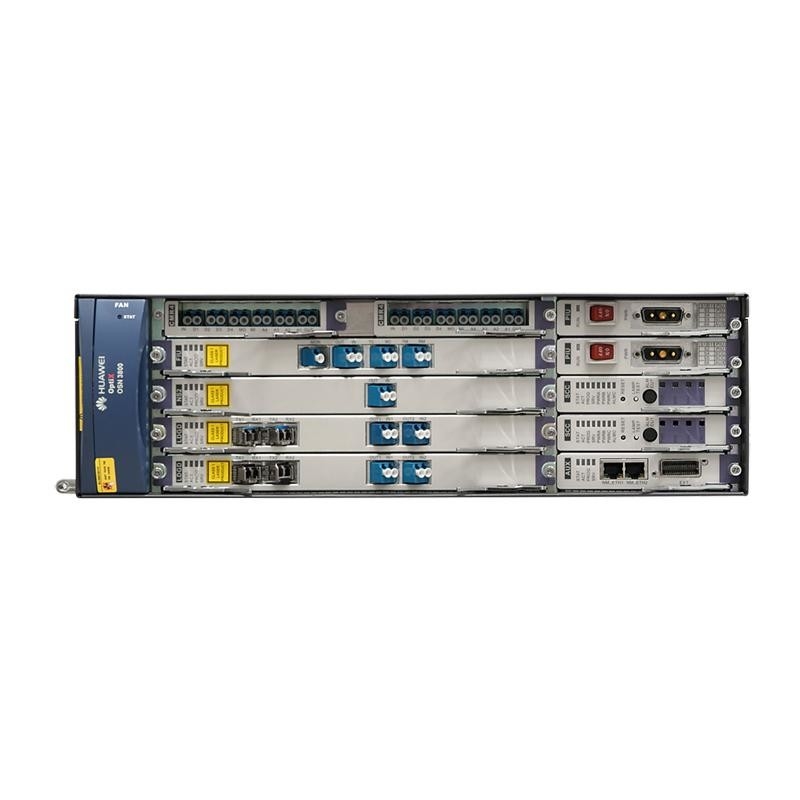

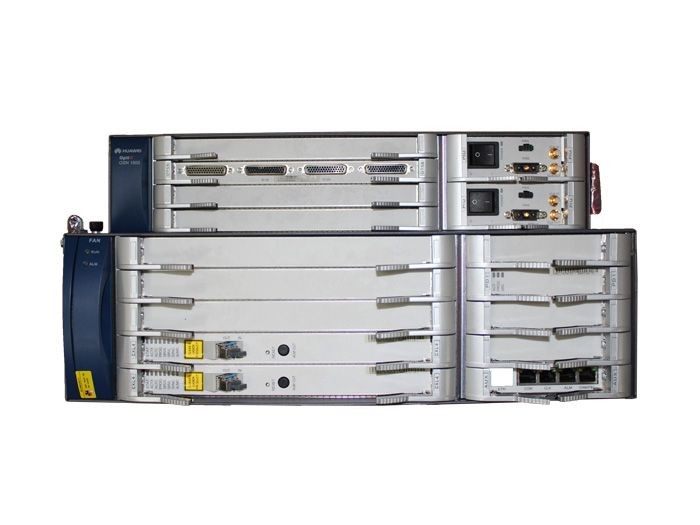

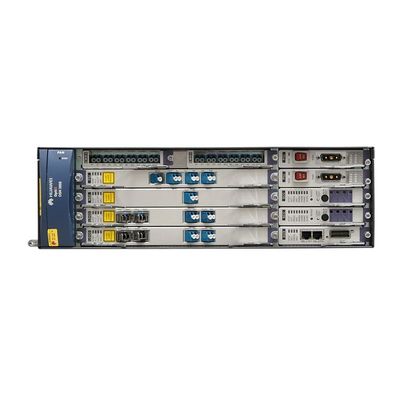

OptiX OSN 1500 SSN1PQM 63xE1/T1 service processing board -- OSN1500

Product Description

Functions and Features

Name: OptiX OSN 1500 SSN1PQM 63xE1/T1 service processing board -- OSN1500
Brand: Uonel Co.Limtied
SKU: SSN1PQM
Availability: InStock

The PQM processes E1/T1 signals, processes overhead bytes, reports alarms and performance events, provides maintenance features, and supports the TPS protection.

Table 1 provides the functions and features of the PQM.

Table 1 Functions and features of the PQM

Function and Feature	PQM
Basic functions	Processes 63xE1/T1 signals.
Service processing	Transmits/Receives and processes 63xE1/T1 electrical signals when working with the interface board. Each channel can be configured as E1 or T1.
Overhead processing	Supports the processing of the path overheads at the VC-12 level, such as the J2 byte.
Alarms and performance events	Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
Maintenance features	Supports inloops and outloops at electrical interfaces. Supports warm resets and cold resets. The warm reset does not affect services. Supports the query of the manufacturing information of the board. Supports the in-service loading of the FPGA. Supports the upgrade of the board software without affecting services. Supports the PRBS function. For details, see Availability. Supports the CRC function.
Protection schemes	Supports the TPS protection when working with the interface board. When the working board is the N1PQ1, the protection board can be the N1PQ1, N2PQ1 or N1PQM. In this case, the hybrid protection is provided. When the working board is the N1PQM, the protection board can only be the N1PQM.

Technical Specifications of the PQM

The technical specifications of the PQM include the parameters specified for electrical interfaces, mechanical specifications, and power consumption.

Parameters Specified for Electrical Interfaces

The D12S or D12B provides electrical interfaces for the PQM. For the parameters specified for the electrical interfaces, see Technical Specifications of the D12S and Technical Specifications of the D12B.

Mechanical Specifications

The mechanical specifications of the PQM are as follows:

Dimensions (mm): 25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg): 1.0

Power Consumption

The maximum power consumption of the PQM at room temperature (25°C) is 22 W.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options	Estimated Delivery Time
DHL	3-5 business days
Fedex	3-5 business days
By Sea	10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
