Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | SSN1OU08 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

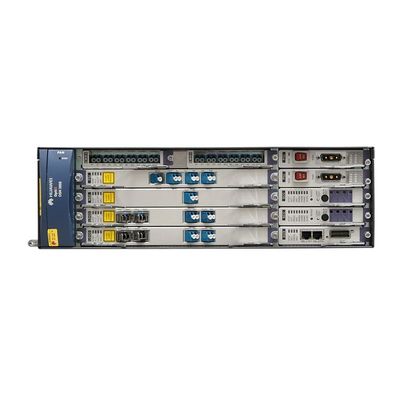

| Type: | Fiber Identifier | SSN1OU08: | 8xSTM-1 Optical/electrical Interface Board |
|---|
The N1OU08 receives and transmits 8xSTM-1 optical/electrical signals, and the N2OU08 receives and transmits 8xSTM-1 optical signals. The OU08 must work with the SEP1.
The technical specifications of the OU08 include the parameters specified for optical interfaces, electrical interfaces, laser safety class, mechanical specifications, and power consumption.
Table 1 lists the parameters specified for the interfaces of the OU08.
| Port type | Description |
|---|---|
| S-1.1 | 15 km STM-1 single-fiber bidrectional optical interfaces |
| Parameter | Value |
|---|---|
| Nominal bit rate | 155520 kbit/s |
| Line code pattern | NRZ |
| Application code | S-1.1 |
| Operating wavelength range (nm) | N1OU08: 1260-1360 N2OU08: 1261-1360 |
| Type of fiber | Single-mode LC |
| Mean launched optical power (dBm) | -15 to -8 |
| Receiver sensitivity (dBm) | -28 |
Table 3 lists the parameters specified for the electrical interfaces of the N1OU08.
| Port type | Description |
|---|---|
| electrical interfaces | STM-1 electrical interfaces(SAA) |
The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).
The mechanical specifications of the OU08 are as follows:
The maximum power consumption of the OU08 at room temperature (25°C) is 6 W.
