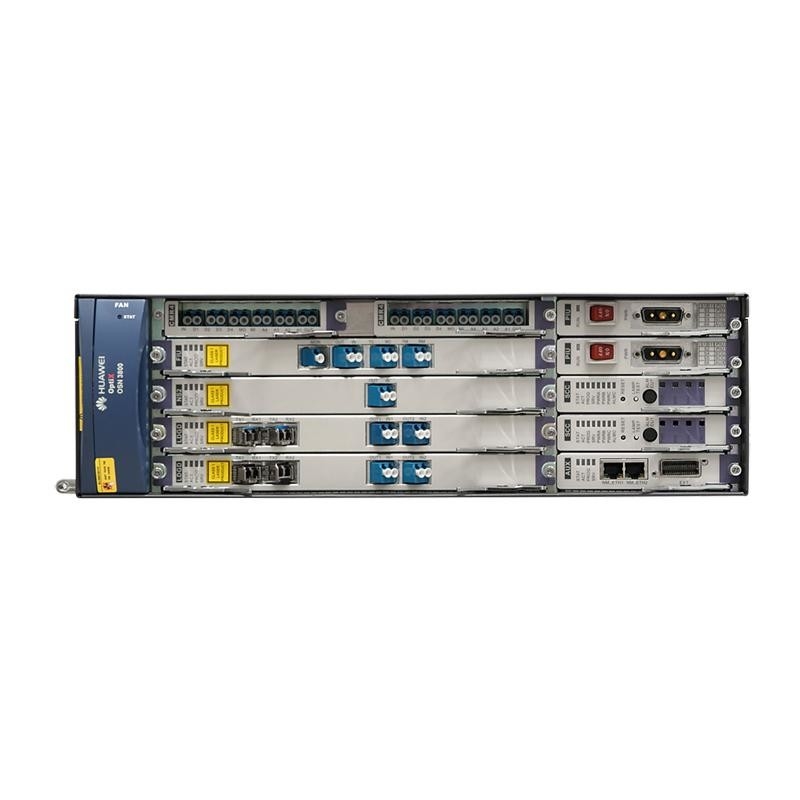

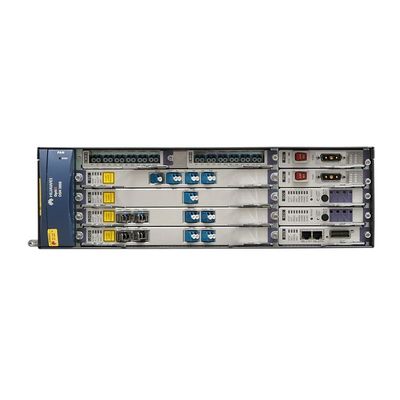

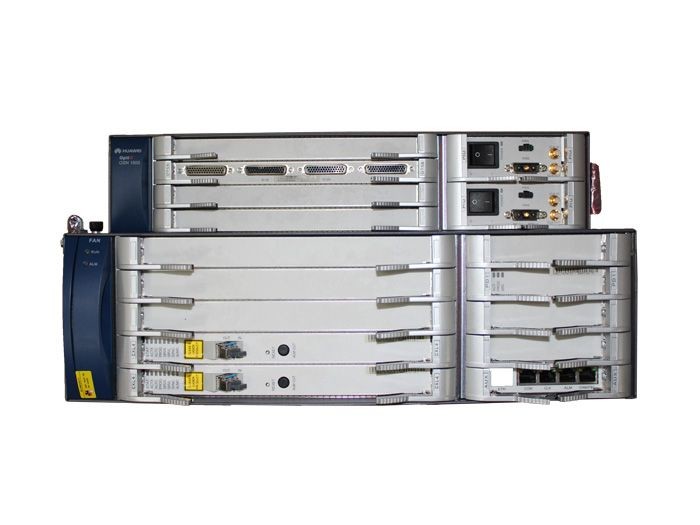

OptiX OSN 1500 SSR1PCXLL1602 Cross-Connect Boards and System Control Board -- OSN1500

Name: OptiX OSN 1500 SSR1PCXLL1602 Cross-Connect Boards and System Control Board -- OSN1500
Brand: Huawei
SKU: SSR1PCXLL1602
Availability: InStock
ISBN: 14208786

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	SSR1PCXLL1602

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Fiber Identifier	SSR1PCXLL1602:	Cross-Connect Boards And System Control Board

The PCXLN processes SDH signals, controls communication, grooms services, and inputs/ outputs clock signals.

SDH Processing Unit

Table 1 provides the functions and features of the SDH processing unit of the PCXLN.

Table 1 Functions and features of the SDH processing unit of the PCXLN

Function and Feature	Description
Basic functions	Transmits and receives 1xSTM-1/STM-4/STM-16 optical signals.
Specifications of the optical interface	The STM-1/STM-4/STM-16 optical module can be used. At the STM-1 level, the standard S-1.1, L-1.1, and L-1.2 optical interfaces are supported. The optical interfaces of S-1.1, L-1.1, and L-1.2 types comply with ITU-T G.957. At the STM-4 level, the standard S-4.1, L-4.1, L-4.2, and Ve-4.2 optical interfaces are supported. The optical interfaces of the S-4.1, L-4.1, and L-4.2 types comply with ITU-T G.957, and the optical interface of the Ve-4.2 type complies with the standards defined by . At the STM-16 level, the standard I-16, S-16.1, L-16.1, and L-16.2 optical interfaces are supported. Supports the CWDM and DWDM colored optical interfaces. The optical interface uses the LC connector. The CWDM optical interface supports the transmission distance of 80 km, and the DWDM optical interface supports the transmission distance of 120 km.
Specifications of the optical module	Supports the detection and query of the information about the optical module. Provides the ALS function. The optical interface supports the setting of the on/off state of a laser. Supports the pluggable optical modules, facilitating the maintenance and upgrade of the optical modules.
Service processing	The STM-1 module supports the VC-12/VC-3/VC-4 services. The STM-4 module supports the VC-12/VC-3/VC-4 and VC-4-4c concatenation services. The STM-16 module supports the VC-12/VC-3/VC-4 and VC-4-4c/VC-4-8c/VC-4-16c concatenation services.
Overhead processing	Processes the section overheads of the STM-1/STM-4/STM-16 signals. Supports the transparent transmission and termination of the path overheads and supports the setting and query of the J0, J1, and C2 bytes.
Alarm and performance event	Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
Protection scheme	Two-fiber ring MSP Four-fiber ring MSP Linear MSP SNCP SNCMP SNCTP
Maintenance feature	Supports inloops and outloops at optical interfaces. Supports the warm reset and cold reset. The warm reset does not affect services. When a warm reset is performed on the working cross-connect and system control board, an active/standby switching occurs on the board. Supports the query of the manufacturing information of the board. Supports the in-service loading of the FPGA. Supports the upgrade of the board software without affecting services. Supports the PRBS function in the line direction.

SCC Unit

Table 2 provides the functions and features of the SCC unit of the PCXLN.

Table 2 Functions and features of the SCC unit of the PCXLN.

Function and Feature	Description
Basic functions	Configures and monitors services, monitors the service performance, and collects the information about the performance events and alarms.
Specifications of the optical interface	Provides one 10M/100M compatible Ethernet NM interface, which is accessed through the AUX board. Provides one 10M/100M Ethernet port, which is used for implementing the inter-board communication and is accessed through the AUX board. Provides one 10M Ethernet port, which is used for implementing the communication between the active and standby SCC boards. Provides the RS232 OAM interface, which is accessed through the AUX board and is used for connecting a PC or workstation. Supports the remote maintenance by using the RS232 DCE modem. Supports the receiving of the check result of the NE ID and provides the interface for querying the check result. Provides one orderwire interface, which is accessed through the EOW board. Provides two broadcast data ports (serial1-2), which are accessed through the EOW board.
DCC processing capability	Processes a maximum of 80 channels of DCC signals (D1-D3).
Fan alarm management	Manages fan alarms.
PIU management	Supports the in-service check function for the PIU board and supports the failure check function for the lightning protection module of the PIU.
Protection scheme	Supports 1+1 hot backup.

Cross-Connect Unit

Table 3 provides the functions and features of the cross-connect unit of the PCXLN.

Table 3 Functions and features of the cross-connect unit of the PCXLN

Function and Feature	Description
Basic functions	Cross-Connect Capacity		PCXLN
	Higher order cross-connect capacity (Gbit/s)		60
	Lower order cross-connect capacity (Gbit/s)		20
	Packet switching capacity (Gbit/s)		8
	Service access capacity	TDM mode (Gbit/s)	15
	Service access capacity	Packet mode (Gbit/s)	8
Service processing	Dynamically grooms services. Adds or deletes services without interrupting other services. Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels. Supports a maximum of 12 linear MSP groups. Supports a maximum of 12 ring MSP groups. Supports a maximum of 1184 SNCP groups. Supports a maximum of 592 SNCMP groups. Supports a maximum of 512 SNCTP groups. The STM-16 optical module supports the VC-4-4c, VC-4-8c, and VC-4-16c concatenation services.
Protection scheme	Supports the 1+1 hot backup (non-revertive, by default).

Clock Unit

Table 4 provides the functions and features of the clock unit of the PCXLN.

Table 4 Functions and features of the clock unit of the PCXLN

Function and Feature

Description

Basic functions

Provides the standard system synchronization clock.

Other functions

Supports the extraction, insertion, and management of the SSM and clock ID.
Supports the transmission of the DCC overhead information at two external clock interfaces.
Supports the transmission of two channels of clock signals through the S1 to S4 interfaces on the EOW. The S1 and S3 interfaces receive the first channel of time information, and the S2 and S4 interfaces receive the second channel of time information.
Supports frequency deviation detection.

Input and output

Through the AUX board:

Inputs/Outputs two-channel 2 MHz or 2048 kbit/s timing signals (120-ohm) and allows selection of external timing sources.

Through the PIU board:

Inputs/Outputs two-channel 2 MHz or 2048 kbit/s timing signals (75-ohm) and allows selection of external timing sources.

Packet Function

For information about the performance of the packet system, see Packet System Performance.

Relationship between the feature code of the PCXLN and the type of optical interface

Board	Feature Code	Type of Optical Interface
SSR1PCXLL1601	1601	I-16
SSR1PCXLL1602	1602	S-16.1
SSR1PCXLL1603	1603	L-16.1
SSR1PCXLL1604	1604	L-16.2
SSR1PCXLL401	401	S-4.1
SSR1PCXLL402	402	L-4.1
SSR1PCXLL403	403	L-4.2
SSR1PCXLL404	404	Ve-4.2
SSR1PCXLL110	110	S-1.1
SSR1PCXLL111	111	L-1.1
SSR1PCXLL112	112	L-1.2

Specifications of the ports

Port type	Description
S-1.1	15 km STM-1 two-fiber bidirectional optical interfaces
L-1.1	40 km STM-1 two-fiber bidirectional optical interfaces
L-1.2	80 km STM-1 two-fiber bidirectional optical interfaces
S-4.1	15 km STM-4 two-fiber bidirectional optical interfaces
L-4.1	40 km STM-4 two-fiber bidirectional optical interfaces
L-4.2	80 km STM-4 two-fiber bidirectional optical interfaces
Ve-4.2	100 km STM-4 two-fiber bidirectional optical interfaces
I-16	2 km STM-16 two-fiber bidirectional optical interfaces
S-16.1	15 km STM-16 two-fiber bidirectional optical interfaces
L-16.1	40 km STM-16 two-fiber bidirectional optical interfaces
L-16.2	80 km STM-16 two-fiber bidirectional optical interfaces
