Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OSN 2500 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Dimensions (H X W X D): | 472 Mm X 447 Mm X 295 Mm | Switch Capacity: | TDM: 60 Gbit/s (higher Order), 20Gbit/s (lower Order) |
|---|---|---|---|
| Processing Board Number: | 12 | Interface Board Number: | 8 |
| MSTP Interface: | STM-16/4/1, E1/E3/E4/T1/T3, FE/GE,DDN,IMA/ATM,FEC/EFEC,SAN,Video | WDM Interface: | 40-channel DWDM/8-channel CWDM |
| Maximum Power Consumption: | 400 W | Weight: | 17kg |
| Power Supply: | 110V AC To 220V AC, -48V DC |

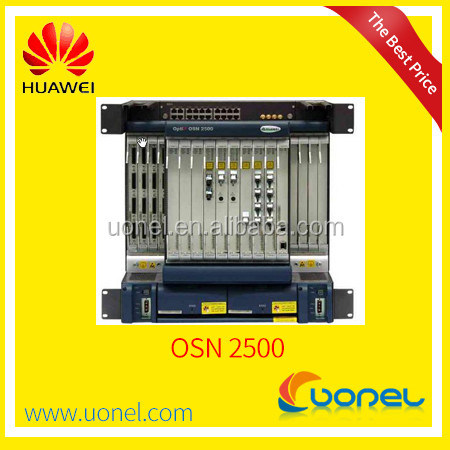

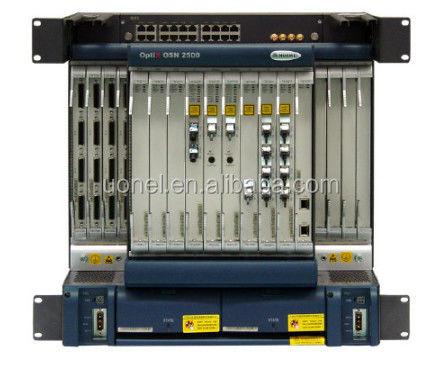

MSTP OptiX OSN 2500 (SDH OSN2500)
The OSN 2500 works at the 2.5Gbit/s or 622Mbit/s level, inherits all features of the MSTP technology, keeps compatible with traditional SDH and MSTP networks, and integrates the SDH, PDH, DDN, Ethernet, WDM, ATM, IMA, and RPR, ESCON, FICON, FC and DVB-ASI (Digital Video Broadcast-Asynchronous Serial Interface) .
OSN 2500 is used in aggregation layer & access layer, and its service board is compatible with OSN 9560 /7500II /7500 /3500 /2500 /1500. OSN 2500 supports intelligent features, automatic end-to-end service configuration, SLA, traffic engineering, timeslot defragmentation, MESH clock synchronization etc. to enhance network utilization.
The OptiX OSN 2500 intelligent optical transmission system (hereinafter referred to as the OptiX OSN 2500) developed by Huawei is the next-generation intelligent optical transmission equipment.
The OptiX OSN 2500 integrates the following technologies to transmit voice and data services on the same platform with high efficiency:
The OptiX OSN 2500 subrack has a one-layer structure. The subrack consists of the slot area for processing boards, slot area for interface boards, slot area for the auxiliary interface board, power supply area and fan area.
Cross-ability of OSN 2500
| Cross clock board | High-order cross capability | High-order cross capability | Access capability |
| Q1CXL1 | 20 Gbit/s(128x128VC-4) | 5Gbit/s(32x32 VC-4) | 18.75Gbit/s(120x120 VC-4) |
| Q1CXL4 | 20 Gbit/s(128x128VC-4) | 5Gbit/s(32x32 VC-4) | 18.75Gbit/s(120x120 VC-4) |
| Q1CXL16 | 20 Gbit/s(128x128VC-4) | 5Gbit/s(32x32 VC-4) | 18.75Gbit/s(120x120 VC-4) |
| Q2CXL1 | 20 Gbit/s(128x128VC-4) | 20 Gbit/s(128x128VC-4) | 18.75Gbit/s(120x120 VC-4) |
| Q2CXL4 | 20 Gbit/s(128x128VC-4) | 20 Gbit/s(128x128VC-4) | 18.75Gbit/s(120x120 VC-4) |
| Q2CXL16 | 20 Gbit/s(128x128VC-4) | 20 Gbit/s(128x128VC-4) | 18.75Gbit/s(120x120 VC-4) |
| SDH business interface | 75 Ohm STM-1 Electrical interface :SMB connector STM-1 optical interface :I-1,S-1.1,L-1.1,L-1.2,Ve-1.2 STM-4 optical interface:I-4,S-4.1,L-4.1,L-4.2,Ve-4.2 STM-16 optical interface:I-16,S-16.1,L-16.1,L-16.2,L-16.2Je,V-16.2Je,U-16.2Je(CXL16 could not supports L-16.2Je,V-16.2Je,U-16.2Je optical interface) STM-16 optical: Given wavelength output, direct docking with WDM equipment STM-16 optical interface(with FEC):Ue-16.2c,Ue-16.2d,Ue-16.2f |
| PDH | 75/120 Ohm E1 Electrical interface :DB44 connector 100 Ohm T1 electrical interface:DB44 connector 75 Ohm E3,T3 and E4 electrical interface:SMB connector |
| Ethernet services | 10/100 Base-TX,100Base-FX,1000Base-SX,1000Base-LX,1000Base-ZX |
| ATM | STM-1 optical interface:I-1,S-1.1,L-1.1,L-1.2,Ve-1.2 STM-4 optical :S-4.1,L-4.1,L-4.2,Ve-4.2 E3 interface:Access through PD3/PL3/PL3A IMA E1 interface: Access through PQ1/PQM/R1PD1 |
| SAN | FC50,FC100/FICON,FC200,ESCON |
| Video | DVB-ASI |
