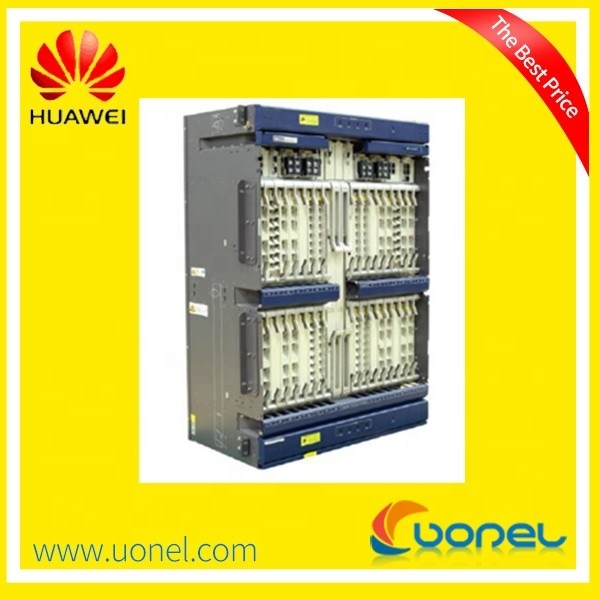

SDH- Optix Transmission System OSN 9560 OSN 9560

Name: SDH- Optix Transmission System OSN 9560 OSN 9560
Brand: Huawei
SKU: Optix OSN 9560
Availability: InStock
ISBN: 14208526

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	Optix OSN 9560

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Dimensions (H X W X D):	900 Mm X 498 Mm X 295 Mm	Weight (unloaded Subrack):	35 Kg
Maximum Power Consumption Of A Subrack:	4800 W	Nominal Current:	100 A (distributed Power Supply, 50 A For Each Partition)
Standard Working Voltage:	-48 V Or -60 V	Working Voltage Range:	-40 V To -57.6 V Or -48 V To -72 V
Power Supply Mode:	DC	Temperature:	0 °C To 45 °C
Relative Humidity:	10% To 90%	Air Pressure:	55 KPa To 106 KPa
Port:	HONGKONG Port & Shenzhen Port

SDH- Optix Transmission System OSN 9560 OSN 9560

The OptiX OSN 9560 intelligent optical switching platform (the OptiX OSN 9560 for short) functions as optical core switching (OCS) equipment. It is mainly used as key service grooming nodes at national backbones, provincial backbones, and metropolitan area network (MAN) backbones.

Key features of the OptiX OSN 9560 include:

The OptiX OSN 9560 provides great switching capacity and powerful networking capability. It can form chain, ring, or mesh networks, and groom services of VC-4, VC-3, and VC-12 granularities.
The OptiX OSN 9560 can receive and transmit STM-1, STM-4, STM-16, STM-64, GE, 10GE signals, as well as VC-4-4c, VC-4-16c, and VC-4-64c concatenated signals.
The OptiX OSN 9560 supports ASON features such as automatic end-to-end service configuration, service level agreement (SLA), traffic engineering, and mesh networking and protection.
The OptiX OSN 9560 can be used alone or with other optical transmission equipment for networking. In addition, it can be interconnected with third-party SDH and DWDM equipment that comply with ITU-T recommendations.

Protection for Ethernet Services

The OptiX OSN 9560 provides network-level protection for multiple types of Ethernet services.

The OptiX OSN 9560 provides the following network-level protection types for Ethernet boards:

Link capacity adjustment scheme (LCAS)
Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)
Link state pass through (LPT)
Ethernet ring protection switching (ERPS)

Specification

Service Type	Description
SDH service	SDH standard services: STM-1/STM-4/STM-16/STM-64 SDH standard concatenated services: VC-4-4c/VC-4-16c/VC-4-64c SDH services with the FEC function: STM-64
Ethernet service	GE 10GE

Port	Description
SDH service port	STM-64 optical ports: I-64.1, S-64.2b, P1L1-2D2, Le-64.2, V-64.2b STM-64 optical ports (FEC): Ue-64.2c, Ue-64.2d, Ue-64.2e STM-16 optical ports: I-16, S-16.1, L-16.1, L-16.2 STM-4 optical ports: S-4.1 STM-1 optical ports: S-1.1 STM-1 electrical ports: SAA-75J4Y
Ethernet data port	1000Base-LX, 1000Base-SX, 1000Base-T, 10GBASE-LR, 10GBASE-LW

Subrack specifications

Item	Parameter
Dimensions (H x W x D)	900 mm x 498 mm x 295 mm
Weight (unloaded subrack)	35 kg
Maximum power consumption of a subrack	4800 W
Nominal current	100 A (distributed power supply, 50 A for each partition)
Standard working voltage	-48 V or -60 V
Working voltage range	-40 V to -57.6 V or -48 V to -72
