Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN51AUX |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Dimensions (H X W X D): | 900 Mm X 498 Mm X 295 Mm | Weight (unloaded Subrack): | 35 Kg |
|---|---|---|---|
| Maximum Power Consumption Of A Subrack: | 4800 W | Nominal Current: | 100 A (distributed Power Supply, 50 A For Each Partition) |
| Standard Working Voltage: | -48 V Or -60 V | Working Voltage Range: | -40 V To -57.6 V Or -48 V To -72 V |
| Power Supply Mode: | DC | Temperature: | 0 °C To 45 °C |
| Relative Humidity: | 10% To 90% | Air Pressure: | 55 KPa To 106 KPa |
| Port: | HONGKONG Port & Shenzhen Port |

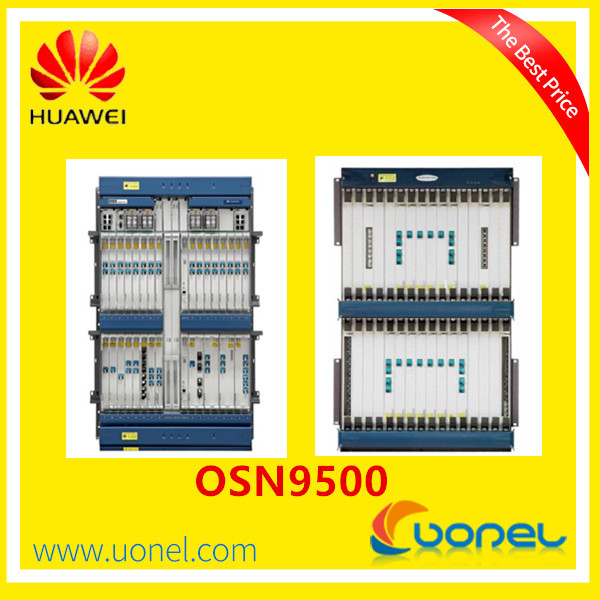

03020JUL Huawei OSN9500 TN51AUX AUX system auxiliary interface board
The OptiX OSN 9560 intelligent optical switching platform (the OptiX OSN 9560 for short) functions as optical core switching (OCS) equipment. It is mainly used as key service grooming nodes at national backbones, provincial backbones, and metropolitan area network (MAN) backbones.
Key features of the OptiX OSN 9560 include:
The OptiX OSN 9560 provides network-level protection for multiple types of Ethernet services.
The OptiX OSN 9560 provides the following network-level protection types for Ethernet boards:
Specification
| Service Type | Description |
|---|---|
| SDH service |
|
| Ethernet service |
|
| Port | Description |
|---|---|
| SDH service port |
|
| Ethernet data port | 1000Base-LX, 1000Base-SX, 1000Base-T, 10GBASE-LR, 10GBASE-LW |
Subrack specifications
| Item | Parameter |
|---|---|
Dimensions (H x W x D) | 900 mm x 498 mm x 295 mm |
Weight (unloaded subrack) | 35 kg |
Maximum power consumption of a subrack | 4800 W |
Nominal current | 100 A (distributed power supply, 50 A for each partition) |
Standard working voltage | -48 V or -60 V |
Working voltage range | -40 V to -57.6 V or -48 V to -72 |
