Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | Huawei SFP |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | Huawei SFP | Data Rate: | 2.125G |
|---|---|---|---|
| Wavelength: | 1310nm | Distance: | 0.5km |
| Connector: | Simplex SC | Optical Power: | 3~7dBm |
| Sensitivity: | -30dBm | Fiber Type: | SMF |
| Port: | Shenzhen |

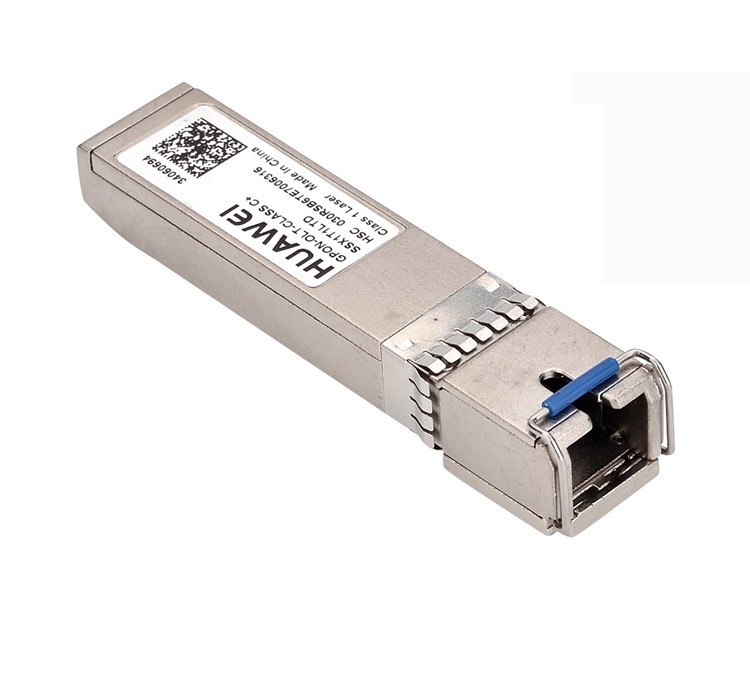

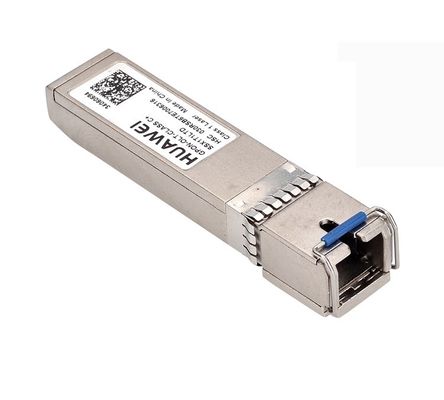

GPON Optical Module
A GPON optical module is connected to one SC optical fiber to provide GPON access service.
| No. | 1 | 2 | 3 | 4 |
| Type | One-fiber bi-directional optical module, class B+ | One-fiber bi-directional optical module, class C+ | One-fiber bi-directional optical module, class C++ | eOTDR One-fiber bi-directional optical module, class B+ |
| Operating Wavelength | Tx: 1490 nm | Tx: 1490 nm | Tx: 1490 nm | Tx: 1490 nm |
| Rx: 1310 nm | Rx: 1310 nm | Rx: 1310 nm | Rx: 1310 nm | |
| Encapsulation Type | SFP | SFP | SFP | SFP |
| Port Rate | Tx: 2.49 Gbit/s | Tx: 2.49 Gbit/s | Tx: 2.488 Gbit/s | Tx: 2.49 Gbit/s |
| Rx: 1.24 Gbit/s | Rx: 1.24 Gbit/s | Rx: 1.244 Gbit/s | Rx: 1.24 Gbit/s | |
| Minimum Output Optical Power | 1.50 dBm | 3.00 dBm | 6.00 dBm | 1.50 dBm |
| Maximum Output Optical Power | 5.00 dBm | 7.00 dBm | 10.00 dBm | 5.00 dBm |
| Maximum Receiver Sensitivity | -28.00 dBm | -32.00 dBm | -35.00 dBm | -28.00 dBm |
| Optical Connector Type | SC | SC | SC | SC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode | Single-mode |
| Overload Optical Power | -8.0 dBm | -12.0 dBm | -15.0 dBm | -8.0 dBm |
| Extinction Ratio | 10 dB | 8.2 dB | 8.2 dB | 8.2 dB |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
