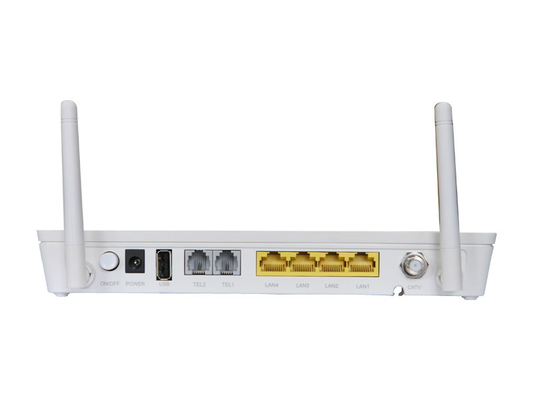

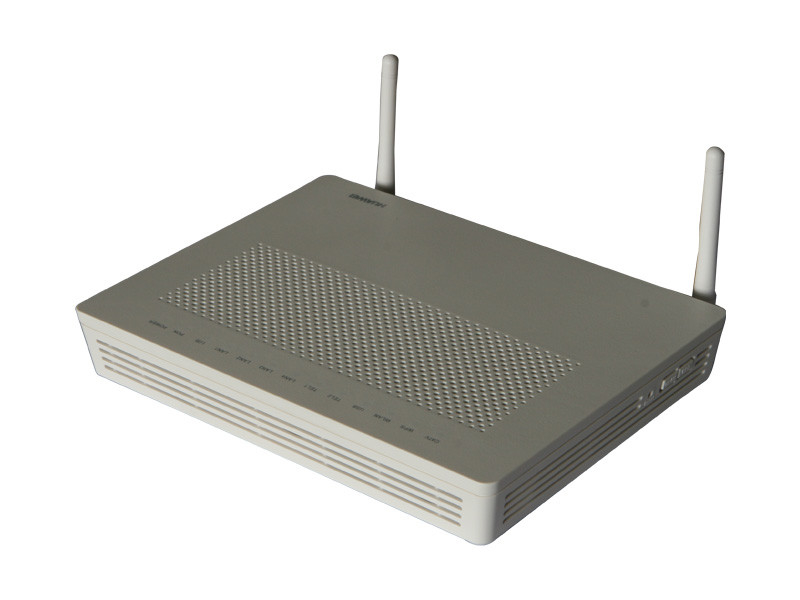

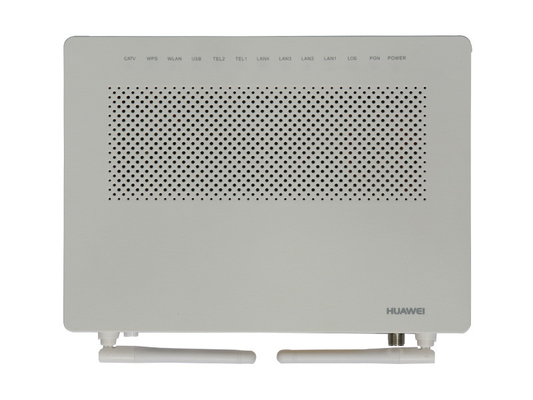

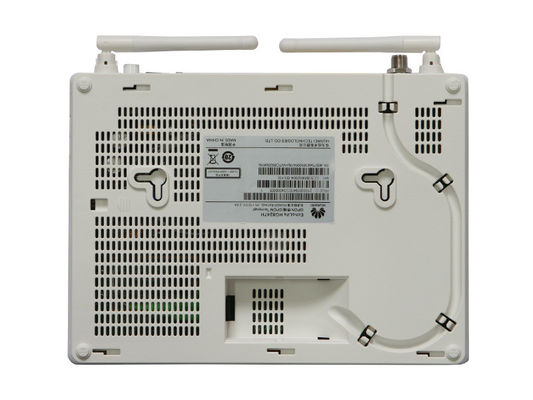

Huawei Access Network Optical Network Terminals EchoLife ONT Series HG8247H HG8045A HG8242H HG8240H ONT FTTH

Product Description

EchoLife ONT Series

EchoLife HG series Optical Network Terminals (ONTs) are user-side devices in Huawei Fiber-To-The-House (FTTH) solutions and support ultra-bandwidth access for home or Small Office/Home Office (SOHO) users using GPON technologies.

EchoLife HG series ONTs provide POTS ports and FE/GE auto-negotiation Ethernet ports, enabling high-performance forwarding capabilities.

Enhance future-proof services with Huawei EchoLife HG series ONTs, consisting of three main categories: bridging type, bridging + voice type, and gateway type.

Features

Plug and play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault locating. Supports remote batch upgrades, and up to 2,000 devices can be upgraded each hour
Link monitoring: IEEE 802.1ag-based Ethernet OAM that implements end-to-end (E2E) link detection and network isolation
Energy wise: SOC chips feature high-integration capabilities. Each chip integrates the PON, voice, gateway, and LSW modules, with 25 percent power savings

Specifications

Specifications	HG8045A	HG8242H	HG8240H	HG8245H
Dimensions (H x W x D)	28 mm x 176 mm x 138 mm	32 mm x 220 mm x 160mm	28 mm x 176 mm x 138 mm	28 mm x 176 mm x 138 mm
Network-side Ports	GPON	GPON	GPON	GPON
User-side Ports	4FE+WIFI	4GE+2POTS+CATV	2POTS + 4GE	2POTS + 4FE + 1USB + Wi-Fi
Specifications	HG8012H	HG8010H	HG8040H	HG8247H
Dimensions (H x W x D)	135 mm x 115 mm x 30 mm	30 mm x 143 mm x 115 mm	28 mm x 176 mm x 138.5 mm	34 mm x 268 mm x 213 mm
Network-side Port	GPON	GPON	GPON	GPON
User-side Port	1GE+1CATV	1FE	4FE	2 x POTS + 4 x LAN + 1 x USB + 1 x CATV + Wi-Fi
