Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZXMP M720 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Cabinet Size: | 2000/2200X600X300 Mm | Sub-rack Size: | 308.4X440X291.8 Mm |
|---|---|---|---|
| Physical Slots: | 19 | Service Slots: | 12 |
| Power Supply: | DC:-60V~-40V |
Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.
Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.
HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

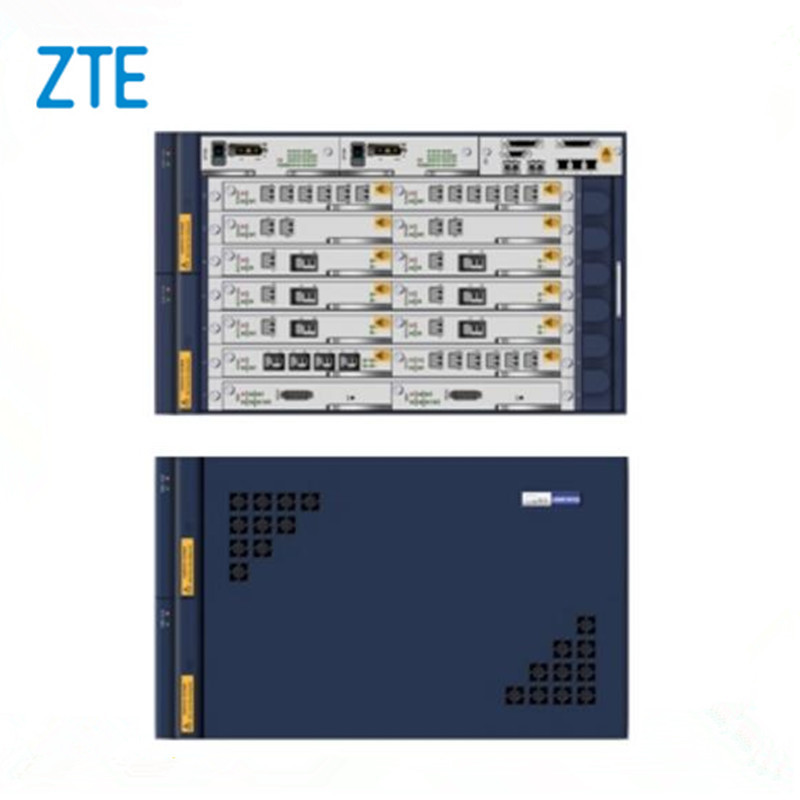

The ZTE ZXMP M720
High integration
The sub-rack of ZXMP M720 is only 6RU high and single cabinet supports 6 sub-racks installation. One sub-rack can provide 14 slots, four sub-racks support 40 wavelengths, resulting in equipment room space saving and power consumption reduction and greatly lowering operation & maintenance expense.
Large capacity
ZXMP M720 supports up to 40×10G for DWDM system, 18×2.5G for CWDM system and modular upgrade.
Transmission capability
ZXMP M720 supports single span transmission up to 45 dB without OEO processing and multi-span transmission, e.g., 18×22 dB, 14×22 dB, 8×22 dB, 7×30 dB, 3×30 dB without OEO processing for DWDM system. It also supports typical single span transmission of 80KM and maximum of 120KM for CWDM system.
Access service type
Services access: STM-N (N=1, 4, 16 and 64), POS (Packet Over SDH), GE, 10GE, FC, ESCON, FICON and DVB, etc.
Services aggregation: 4×STM-1/ 4-->STM-16; 4×STM-16-->OTU2,
2×GE/1G FC/FICON-->OTU1, 8×GE/1G FC/FICON-->OTU2, 4×2G FC-->OTU2, 2×4G FC-->OTU2, 24×GE-->10GE with L2 switch.
Three-dimensional traffic grooming
Support 10-degree ROADM, and offer l-level cross-connect dispatching function;
Support distributed cross connection at granularity of ODU0;
Support L2 switching functions, such as VLAN, QinQ;
Enable agile service scheduling from electrical layer to photonic layer to enhance network flexibility.
Reliable protection
ZXMP M720 supports control board/ power board 1+1 backup and OMS (Optical Multiplexing Section)/OCH (Optical Channel) 1+1 protection/sub-λ 1+1 protection. In addition, BPSR (Bidirectional Protection Share Ring), the core patent protection technology of ZTE, also used in sub-λ-level, can save wavelength resources tremendously; ESR (Ethernet Smart Ring) shortens the protection switching time in ring configuration of Ethernet services. All the protection switching time is less than 50ms in compliance with ITU-T/RFC standards.
OCH (Optical Channel) 1+1 protection in some OTU board is also supported, with the result of OP board saving, slot saving and investment saving.
Optional OSC/ESC
ZXMP M720 supports OSC (optical supervision channel) and ESC (electrical supervision channel), which can be selected flexibly to meet different requirements.
