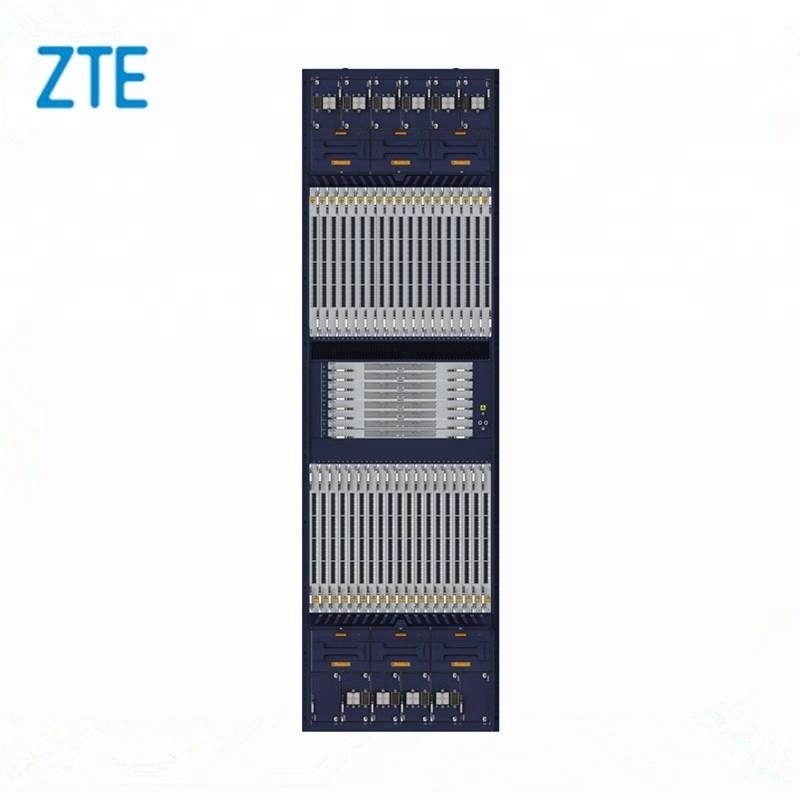

ZTE SOSCB SOSC DWDM ZXONE 9700 Packet OTN N5M2SOSCB N5M1SOSC

ZTE SOSCB SOSC DWDM ZXONE 9700 Packet OTN N5M2SOSCB N5M1SOSC

The largest capacity in the industry
A single sub-rack supports the largest switching capacity and the maximum number of slots. The ZXONE 9700 supports 28.8 Tb/s of a single sub-rack at most (72 slots with 400Gb/s bandwidth per slot).

Universal switching platform
The packet OTN architecture and brand-new All in One design can support OTN/Packet/TDM universal switching. It can implement access, switching, and transmission of various service in a unified way. It greatly relieves IP bandwidth pressure and performs intelligent grooming of IP traffic.

Support 400G
By the advanced design, the ZXONE 9700 provides up to 400G bandwidth of a single slot, which can be configured with 400G line card directly, providing larger bearing capacity.

Excellent 100G transmission performance
The 100Gb/s system adopts PM-QPSK encoding and SD-FEC technology with good OSNR tolerance. The industry's most advanced DSP processing technology can support 60ps of PMD tolerance and 70000ps/nm of chromatic dispersion tolerance. The transmission distance can reach over 5,000 kilometers without electrical relay, which saves the investments and facilitates the maintenance.

Highly-reliable system architecture
The main control unit, power supply module, and clock unit support redundant 1+1 hot standby.
The cross-connect unit uses advanced cubic protection, which is more than three orders of magnitude higher than common 1+1 protection. It greatly improves the security of the equipment.

Green and energy-saving
It adopts 28nm AISC chips integrated with more functions so that it dramatically reduces overall PCB calorific value and energy consumption.
With advanced electromechanical management system, it supports circuit and optical module area sleep, which effectively reduces the consumption of the idle module.
Highly precise temperature measurement and intelligent cooling system can adjust fan speed in a real-time way based on the temperature value measured by the system. Thus it can reduce the system operation temperature as much as possible while controlling fan consumption.

Flexible service access capability
The client side boards support 100M-100G Any service access of STM-N, FE/GE/10GE/40GE/100GE, OTU1/2/3/4, DVB, ESCON and FC, etc.
The universal service access card meets the multi-service hybrid transmission needs of the operators.

Advanced bandwidth management
The graphic bandwidth resource display and configuration system makes provisioning and maintenance easier.
With the ASON control plane, it intelligently distributes bandwidth resource and provides real-time bandwidth alarms.

Electrical and optical hybrid switching and intelligent scheduling
The optical layer supports 2-20-degree ROADM, N*M WSS, directionless, colorless, and contentionless. It can implement automatic E2E configuration of wavelengths.
The electrical layer supports electrical cross-connection of multi-granularity services including ODU0/1/2/2e/3/4/flex to achieve automatic E2E configuration of ODUk.
It supports WASON control plane in optical and electrical layer. It can perform integrated intelligent management and scheduling of packet, ODUk, and wavelength.
With WASON loaded, it can implement intelligent control of optical layer and electrical layer dual plane to shorten service deployment time andprovide multiple recovery paths for key services, so as to enhance service survivability.

Carrier-class reliable protection
It supports many protection modes including fiber level, wavelength level, sub-wavelength level, and L2 protection.
Fiber level: line 1+1 protection, optical multiplexing segment 1+1 protection
Optical channel level: optical channel 1+1 protection
ODUk level: ODUk 1+1 protectio
