Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
Place of Origin: | China |
Brand Name: | Huawei |
Certification: | CE FCC RoHS |
Model Number: | NE40E-X8 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export carton package |
Delivery Time: | 7-15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 Piece/Pieces per Week |
Products Status: | Stock, Used | Ports: | >= 48 |
---|---|---|---|
Transmission Rate: | >105 Mpps | Function: | LACP, POE, QoS, SNMP, Stackable, VLAN Support |
Switch Capacity: | >1.08 Tbps | Dimensions (H X W X D): | (21 U) 930 Mm X 442 Mm X 750 Mm (36.61 In. X 17.40 In. X 29.53 In.) |
Weight (empty)AC: | 63.7 Kg (140.46 Lb) (without Filler Panels) | Weight (empty)DC: | 68.1 Kg (150.16 Lb) (without Filler Panels) |
Slot Quantity: | 12 | LPU Slots: | 8 |
SRU Slots: | 2 | SFU Slots: | 2 |
Switching Capacity: | 25.16 Tbps (LPUI-1T) 51.2 Tbps (LPUI-2T) | Forwarding Performance: | 2800 Mpps (LPUF-240) |
Redundant Switch Fabrics: | 3+1 | ||
High Light: | NE40E-X8 Huawei Telecom Router,S4017147 Huawei Telecom Router,CR5P08BASD71 |

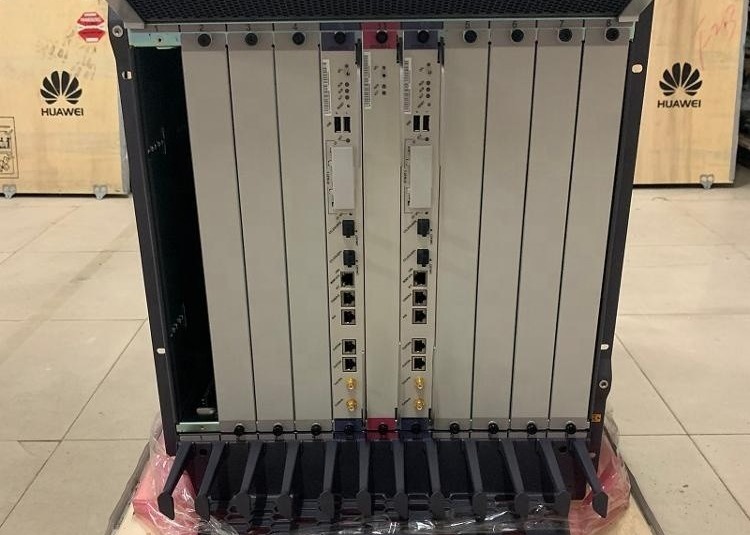

The Huawei NE40E Series Universal Service Routers NE40E-X8
Device Attributes
BOM
|
Model Number
|
Description
|
02350REH
|
CR5P08BASD79
|
NE40E-X8 Basic Configuration (Including NE40E-X8 Chassis, 2+1 Redundant 200G SRU/SFU, 4 DC Power, without Software Charge and
Document) |
02350REJ
|
CR5P08BASA75
|
NE40E-X8 Basic Configuration (Including NE40E-X8 Chassis, 2+1 Redundant 200G SRU/SFU,4 AC Power, without Software Charge and
Document) |
02351AFJ
|
CR5P08BASA7H
|
NE40E-X8 Basic Configuration (Including NE40E-X8 Chassis, 2+1 Redundant 200G SRU/SFU,4 AC Power(Power Cords Cable), without
Software Charge and Document) |
02352DNV
|
CR5P08SFUE71
|
NE40E-X8 200G Hardware Upgrade Bundle(Including 2*B5 SRUs,1*SFU)
|
02351930
|
CR5B0BKP0870
|
NE40E-X8 Integrated Chassis Components(Including 4 DC Power)
|
03057054
|
CR5D0SRUB570
|
Switch and Route Processing Unit B5
|
03053548
|
CR5DSFUIE07C
|
200Gbps Switch Fabric Unit C(SFUI-200-C)
|
02310MDH
|
CF-2G
|
2 GB CF Module
|
02316431
|
MEM-2G-240pin
|
2GB 240pin Memory Module
|
02120562
|
CR5M000FBX60
|
Fan Box
|
Note:
2T SFUs, 2T SRUs, and 2T LPUs can be used only with 2T chassis. When upgrading the device from 02350AFW, 02350AFX, 02351CCF to 2T, in addition to replacing the SFUs with 2T SFUs, upgrade the fan assembly and PMU. Install PMs for the 2T chassis and add the noise reduction module. If the MPU is an MPUB5, replace it with an MPUB6. For details, see the Upgrade Guide.
Technical Specifications
Item
|
Specification
|
Dimensions (H x W x D)
|
(21 U) 930 mm x 442 mm x 650 mm (36.61 in. x 17.40 in. x 25.59 in.) (Chassis main body)
(21 U) 930 mm x 442 mm x 750 mm (36.61 in. x 17.40 in. x 29.53 in.) (Dimensions of the chassis body together with cable trays and front and back attachments) [2T bundle](21 U) 930 mm x 442 mm x 941 mm (36.61 in. x 17.40 in. x 37.05 in.) (Dimensions of the chassis body together with cable trays and front and back attachments and noise reduction module) |
Weight (empty)
|
DC: 68.1 kg (150.16 lb) (without filler panels)
HVDC&AC: 63.7 kg (140.46 lb) (without filler panels) |
Weight (full configuration)
|
[1T bundle] DC:209 kg (460.85 lb)
[1T bundle]HVDC&AC:206.5 kg (455.33 lb) [2T bundle]DC:242kg [2T bundle]AC&HVDC:234.4kg |
Cabinet installation standard
|
Can be installed in a standard 19 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
[2T bundle]Can be installed in a standard 19 1000 mm-deep cabinet,part number is 02115109(CR5B0N610E60) |
Typical power consumption
|
4110 W (fully configured with LPUF-240s)
4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts) 11100 W (fully configured with LPUI-2Ts) |
Typical heat dissipation
|
13334.6 BTU/hour (fully configured with LPUF-240s)
15475.9 BTU/hour (fully configured with LPUF-480s) 21153.6 BTU/hour (fully configured with LPUI-1Ts) 36013.1 BTU/hour (fully configured with LPUI-2Ts) |
DC input voltage
|
input voltage range: –40 V to –72 V
input rated voltage: –48 V/ –60 V |
AC input voltage
|
input voltage range: 180 V to 264 V
input rated voltage: 200 V to 240 V |
HVDC input voltage
|
input voltage range: 192 to 288V,264 to 400V
input rated voltage: 240 V/380 V |
MTBF
|
22.32 years
|
MTTR
|
0.5 hours
|
Availability
|
0.999997443
|
Slot quantity
|
12
|
Redundant MPUs
|
1:01
|
Redundant Switch fabrics
|
3+1
|
Switching capacity
|
25.16 Tbps (LPUI-1T)
51.2 Tbps (LPUI-2T) |
Forwarding performance
|
2800 Mpps (LPUF-240)
|
