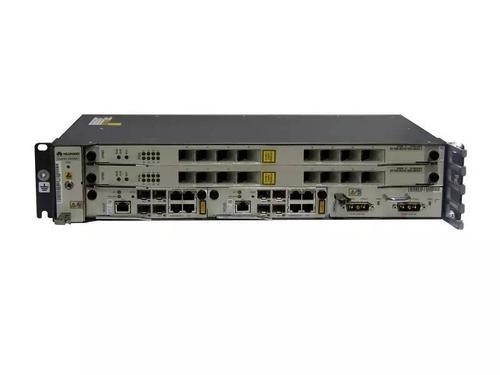

MA5608T Huawei Access Network Mini GPON OLT EPON ONU

Powering Options

DC: -38.4VDC to -72VDC; AC: 100V to 240V

Dimensions (Height x Width x Depth)

3.47in x 17.4in x 9.63in

Operating Temperature

-40º F to +149º F

Storage Temperature

-40º F to +158º F

Cooling

Two multispeed fans, providing left to right forced air flow

Weight

7.8 lbs (3.55 kg) empty

Operating Humidity

5% to 85%, non-condensing, Altitude: 197 ft (60 m)
below sea level to 13,123 ft (4,000 m) above sea level

Regulatory and Safety

UL listed, FCC, NEBS Level 3

GPON

• 16 ports per card or 8 ports per card
• Robust Compliance to G.984 Series standards with 2.5/1.2 Gbps    downstream and 1.2Gbps line
 speed performance
• Support for B+ or C+ optical modules (SFPs) with max 40km  differential distance
• Up to 1:128 split ratio per GPON port
• Optical Power Monitoring, Real Time Rogue ONT detection/isolation

XG-PON1

• 4 ports per card
• Fully compatible with GPON - compliance G.987 Series standards with  10/2.5  Gbps line speed
 performance
• Supports XFP optical modules

VDSL2+POTS Combo

• 48VDSL2 and POTS integrated ports with up to 17a profile
• Two-pair bonding for maximum speed
• G.INP (G.998.4) support for re-transmission at the physical layer
• Built-in support for SELT, DELT, and MELT
• POTS line Loop-Start Operation
• Ringing Mode – Balanced ringing with -15VDC offset on "Ring"
• Multiple CODECs – G.711 (µ-Law and A-Law), G.729, G.723, G.726
