Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ME0DMSUFA070 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Dimensions (H X W X D): | 40.1 Mm X 399.2 Mm X 535.6 Mm |
|---|---|---|---|
| Typical Power Consumption: | 150.2 W | Typical Heat Dissipation: | 487.3 BTU/hour |
| Weight: | 7.2 Kg (15.88 Lb) | Type: | ME0DMSUFA070 |
| High Light: | 03054637 Multi Service Unit,MSUF-100 Multi Service Unit,ME0DMSUFA070 |
||

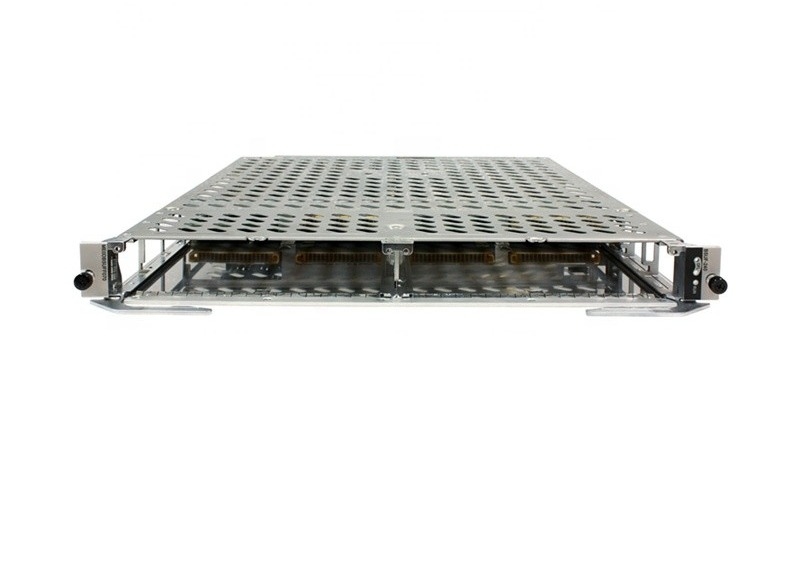

03054637 Huawei Flexible Card Multi Service Unit(MSUF-100,2 sub-slots) ME0DMSUFA070
Product Overview& Appearance
Board name silkscreen: MSUF-100
Description: Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)
BOM: 03054637
Model: ME0DMSUFA070
|
BSUF-100/MSUF-100 Flexible Line Process Card |
|
|
||||
|
03054635 |
ME0DBSUFA070 |
Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots) |
||||
|
03054637 |
ME0DMSUFA070 |
Flexible Card Multi Service Unit(MSUF-100,2 sub-slots) |
||||
|
03032GLB |
ME0D0E1NCB70 |
1-Port 100GBase-CFP2 Flexible Card(BP100) |
||||
|
03032HGH |
ME0D0E1NDB70 |
1-Port 100GBase-QSFP28 Flexible Card(BP100) |
||||
|
03030QDG |
ME0D0L6XXB7H |
6-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP100) |
||||
|
03030PYR |
ME0D0L5XXB7H |
5-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP100) |
||||
|
03031XQA |
ME0D0L5XXE8E |
5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP120-E) |
||||
|
03030PYJ |
ME0D0EFGFB7H |
24-Port 100/1000Base-X-SFP Flexible Card(BP51) |
||||
|
03031XQM |
ME0D0EFGFE7E |
24-Port 1000Base-X-SFP Flexible Card E(BP52-E) |
||||
Optical Transceiver of 10G SFP+ & 100G Optical module
|
10G SFP+ Optical Transceiver |
|
|
||||
|
S4017482 |
OSX040N03 |
Optical Transceiver(SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km) |
||||
|
S4017483 |
OSX001002 |
Optical Transceiver(SFP+,1310nm,10Gb/s,-8.2~0.5dBm,-12.6dBm,LC,SM,10km) |
||||
|
34061042 |
OSX010N13 |
XFP SFP+ Transceiver-SFP+-1310nm-10G/1G--8.2dbm-0.5dbm-Single-mode-14.4dbm-LC-10km |
||||
|
S4017484 |
OMXD30002 |
Optical Transceiver(SFP+,1550nm,9.95~11.1Gb/s,-4.7~4dBm,-14.1dBm,LC,SM,40km) |
||||
|
02311YEB |
OSX040N14 |
Optical Transceiver(SFP+,1310nm,10Gb/s,-2dBm~4dBm,-20dBm,LC,SM,40km) |
||||
|
02310PVU |
OSX080N04 |
Optical Transceiver(SFP+,1550nm,9.953~10.3125Gb/s,0~4dBm,-24dBm,LC,SM,80km) |
||||
|
34060687 |
OSX070002 |
Optical Transceiver-SFP+-1471nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060688 |
OSX070003 |
Optical Transceiver-SFP+-1491nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060686 |
OSX070001 |
Optical Transceiver-SFP+-1511nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060689 |
OSX070004 |
Optical Transceiver-SFP+-1531nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060690 |
OSX070005 |
Optical Transceiver-SFP+-1551nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060691 |
OSX070006 |
Optical Transceiver-SFP+-1571nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060692 |
OSX070007 |
Optical Transceiver-SFP+-1591nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
34060693 |
OSX070008 |
Optical Transceiver-SFP+-1611nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
||||
|
100G Optical Transceiver |
|
|
||||
|
S4017456 |
OSN010N04 |
Optical transceiver,CFP,1295/1300/1304/1309nm,103.125Gbps,-4.3dBm,4.5dBm,-8.6dBm,LC,SMF,10km |
||||
|
02310WUS |
OSN040N02 |
High Speed Transceiver,CFP,1310nm Band,103.125Gb/s,-2.9dBm,2.9dBm,-21.4dBm,Straight LC,SMF,40km,OMA OPTICAL POWER,100GBASE-ER4 |
||||
|
02311JNT |
OSN080N10 |
High Speed Transceiver,CFP,1310nm,103.125Gb/s,9dBm,12.5dBm,-24dBm,Straight LC,SMF G.652,80km,100GBASE |
||||
|
S4017457 |
OSN010003 |
Optical Transceiver,CFP,850nm,10*10.3125Gb/s,-7.6dBm,2.4dBm,-5.4dBm,mpo,MM,0.1km |
||||
|
02311LYG |
OMND10N12 |
High Speed Transceiver,CFP2,850nm,10*10Gb,103.125Gb/s,-7.6dBm,1dBm,-9.5dBm,MPO,MM,0.1km |
||||
|
02310WUR |
OSN010N09 |
High Speed Transceiver,CFP2,4*25Gb/s(1310nm Band),103.125Gb/s,-4.3dBm,4.5dBm,-10.6dBm,LC straight,SMF,10km |
||||
|
02311FAP |
OSN040N03 |
High Speed Transceiver,CFP2,1310nm,103.125Gb/s,-2.9dBm,2.9dBm,-21.4dBm,Straight LC,SMF,40km,OMA,100GBASE-ER4 |
||||
|
02311NTY |
OMND10N13 |
High Speed Transceiver,QSFP28,850nm,100G,-8.4dBm,2.4dBm,-10.3dBm,MPO,MM,0.1km,OM4 |
||||
|
02311QDH |
OSN020N15 |
High Speed Transceiver,QSFP28,1310nm,4*25GBase,-6.5dBm,2.5dBm,-9.8dBm,LC/PC,2km (100GBASE-CWDM4) |
||||
|
02312BSS |
OSN010N24 |
High Speed Transceiver,QSFP28,1310nm,100G,-4.3dBm,4.5dBm,-8.6dBm,LC,SMF,10km |
||||
Product Overview
The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes. The ME60 uses Huawei-developed Solar series NP chips. In addition, the ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbit/s platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment. The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, carries multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. By using the ME60 and corresponding solutions, operators can construct a future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.
Product features
The ME60 has the following table Specifications:
|
Attribute |
ME60-X16A |
ME60-X8A |
ME60-X16 |
ME60-X8 |
ME60-X3 |
||||||||
|
Switching Capacity |
50.32 Tbit/s |
25.16 Tbit/s |
12.58 Tbit/s |
7.08 Tbit/s |
1.08 Tbit/s |
||||||||
|
Forwarding Performance |
11,520 Mpps |
5,760 Mpps |
5,760 Mpps |
2,880 Mpps |
360 Mpps |
||||||||
|
Number of Slots |
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs |
12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs |
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs |
11 slots, including 8 LPUs, 2 SRUs, and 1 SFU |
5 slots, including 3 LPUs and 2 SRUs |
||||||||
|
Dimensions (H x W x D) |
1,778 mm x 442 mm x 650 mm (40U) |
934 mm x 442 mm x 650 mm (21U) |
1,420 mm x 442 mm x 650 mm (32U) |
620 mm x 442 mm x 650 mm (14U) |
175 mm x 442 mm x 650 mm (DC 4U); 220 mm x 442 mm x 650 mm (AC 5U) |
||||||||
|
Maximum Power Consumption |
7,220W (BSUF-240) 9,040W (BSUF-480) |
4,110W (BSUF-240) 4,770W (BSUF-480) |
4,610W (BSUF-100) 6,210W (BSUF-240) |
2,340W (BSUF-100) 3,220W (BSUF-240) |
920W (BSUF-100) |
||||||||
|
Full Configuration Weight |
356 kg |
190 kg |
279 kg |
136 kg |
DC: 42 kg (100G) AC: 52 kg (100G) |
||||||||
|
Interface Types |
100 GE-WAN/LAN |
|
|
|
|
||||||||
|
BRAS |
User access protocols: PPPoE, IPoE, 802.1X, and ND access |
|
|
|
|
||||||||
|
L2TP |
Maximum number of sessions supported: 64K per slot and 128K per device |
|
|
|
|
||||||||
|
IPv4 |
Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs |
|
|
|
|
||||||||
|
IPv6 |
Supports the following: |
|
|
|
|
||||||||
|
MPLS/MPLS VPN |
Supports the following: |
|
|
|
|
||||||||
