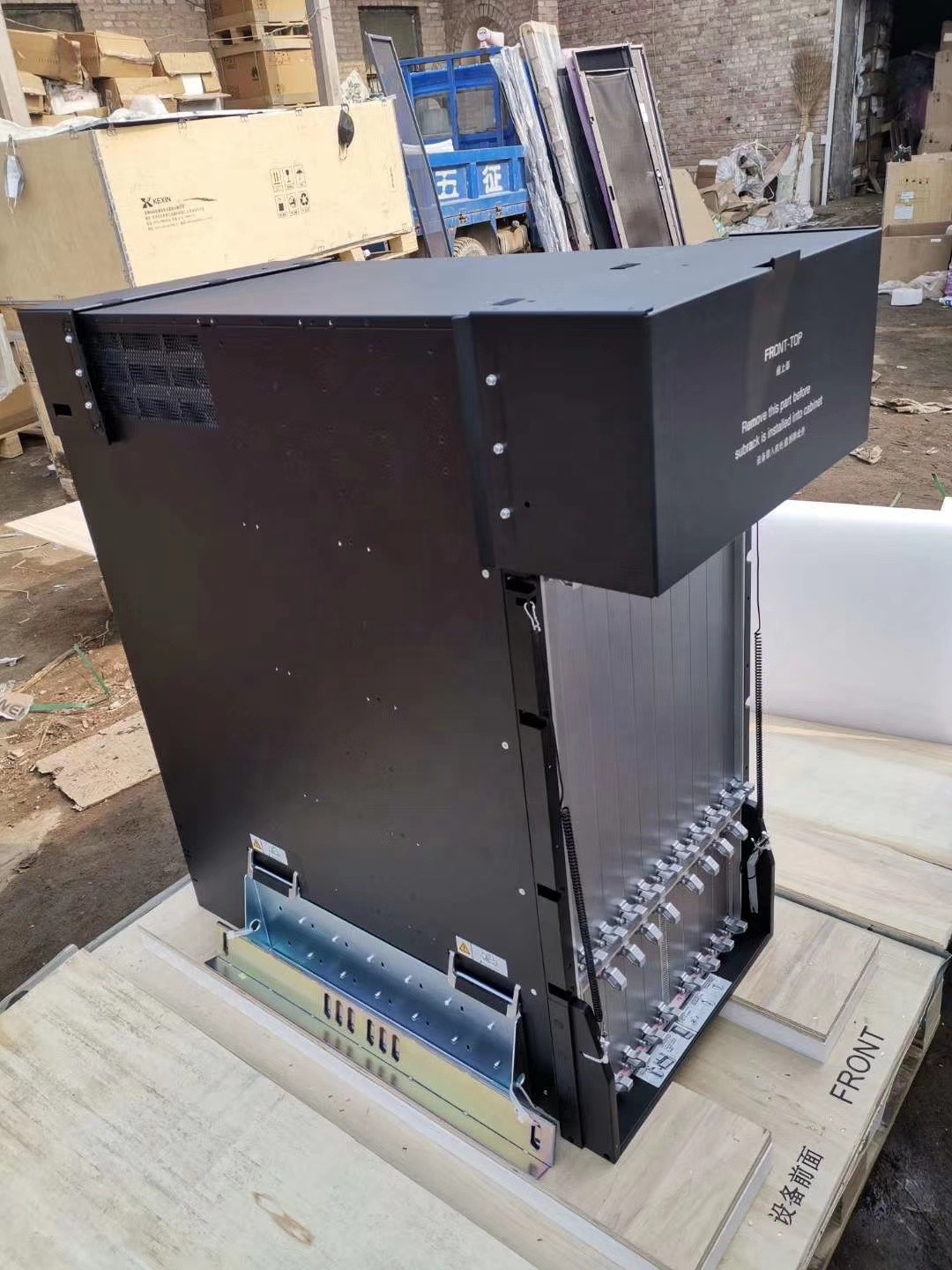

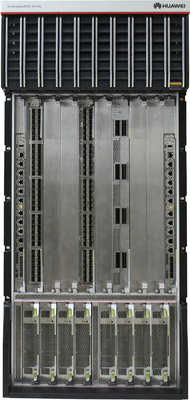

02351PMJ NE9000-8 Huawei Telecom Router CR9PBKP08ADC Chassis DC Components

Name: 02351PMJ NE9000-8 Huawei Telecom Router CR9PBKP08ADC Chassis DC Components
Brand: Huawei
SKU: NE9000-8
Availability: InStock
ISBN: 13650633

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	NE9000-8

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Products Status:	Stock, Used	Ports:	>= 48
Transmission Rate:	>105 Mpps	Function:	LACP, POE, QoS, SNMP, Stackable, VLAN Support
Switch Capacity:	>1.08 Tbps	Config:	Integrated Chassis DC Components
Dimensions (H X W X D):	1016 Mm X 442 Mm X 945 Mm	Weight(empty):	159 Kg
Typical Heat Dissipation:	25858.0BTU (2 MPU + 8 SFU + 8 20x100G QSFP28) DC Input Voltage	Typical Power Consumption:	7.97kW (2 MPU + 8 SFU + 8 20x100G QSFP28)
Switching Capacity:	83.78 Tbps	Forwarding Performance:	5120 Mpps(LPUI-1T)
High Light:	NE9000-8 Huawei Telecom Router , 02351PMJ Huawei Telecom Router , CR9PBKP08ADC

02351PMJ Integrated Chassis DC Components CR9PBKP08ADC Huawei NE9000-8

02351PMJ CR9PBKP08AD

CNE9000-8 Integrated Chassis DC Components

Device Attributes
BOM	Model	Description
02351CJC	CR9P9KBASD82	NE9000-8 Basic Configuration(Include NE9000-8 48V DC Chassis,2MPUP1,8SFU4T-A,232G Memory,232G SSD Card,6*DC Power Module,without Software Charge and Document)
02351NYN	CR9P9KBASA82	NE9000-8 Basic Configuration(Include NE9000-8 220V AC Chassis,2MPUP1,8SFU4T-A,232G Memory,232G SSD Card,8*Power Module,without Software Charge and Document)
02351CJB	CR9P9KBASH82	NE9000-8 Basic Configuration(Include NE9000-8 240V/380V DC Chassis,2MPUP1,8SFU4T-A,232G Memory,232G SSD Card,8*Power Module,without Software Charge and Document)
02351PMJ	CR9PBKP08ADC	NE9000-8 Integrated Chassis DC Components
02351PMK	CR9PBKP08AAC	NE9000-8 Integrated Chassis AC Components
02351PYJ	CR9PBKP08AHC	NE9000-8 Integrated 240V/380V HVDC Chassis Components
03057531	CR9D0MPUP180	NE9000-8 Main Processing Unit P1(MPUP1)
03057530	CR9D0SFUT481	NE9000-8 Switch Fabric Unit for Single Chassis(SFU4T-A)
21242422	CR9XFIXSPO80	Fixing parts for air filter sponge
02232PKN	CR9B0N610E81	NE9000-8 Dust-proof door components

Product Overview

The HUAWEI NE9000 Core Router (NE9000) is a large-capacity and high-performance router designed by Huawei to provide carrier-class reliability. Based on the powerful versatile routing platform (VRP), the HUAWEI NE9000 provides strong switching capabilities, dense ports, and high reliability. HUAWEI NE9000 mainly serves as super-core nodes on carriers' backbone networks, core nodes on metropolitan area networks (MANs), egresses in large-scale Internet Data Centers (IDCs), and core nodes on large-scale enterprise networks.

Technical Specifications

Item	Specification
Dimensions (H x W x D)	1016 mm x 442 mm x 945 mm (40 in. x 17.4 in. x 37.2 in.)
Weight (empty)	159 kg (350.5 lb)
Weight (integrated chassis (cabinet + power supply + fan))	181 kg (339.0 lb)
Cabinet installation standard	Can be installed in an 1000 mm-deep standard 19-inch cabinet and is installed in a 2200 mm-high Huawei N610E cabinet by default.
Typical power consumption	7.97kW (2 MPU + 8 SFU + 8 20x100G QSFP28)
Typical heat dissipation	25858.0BTU (2 MPU + 8 SFU + 8 20x100G QSFP28)

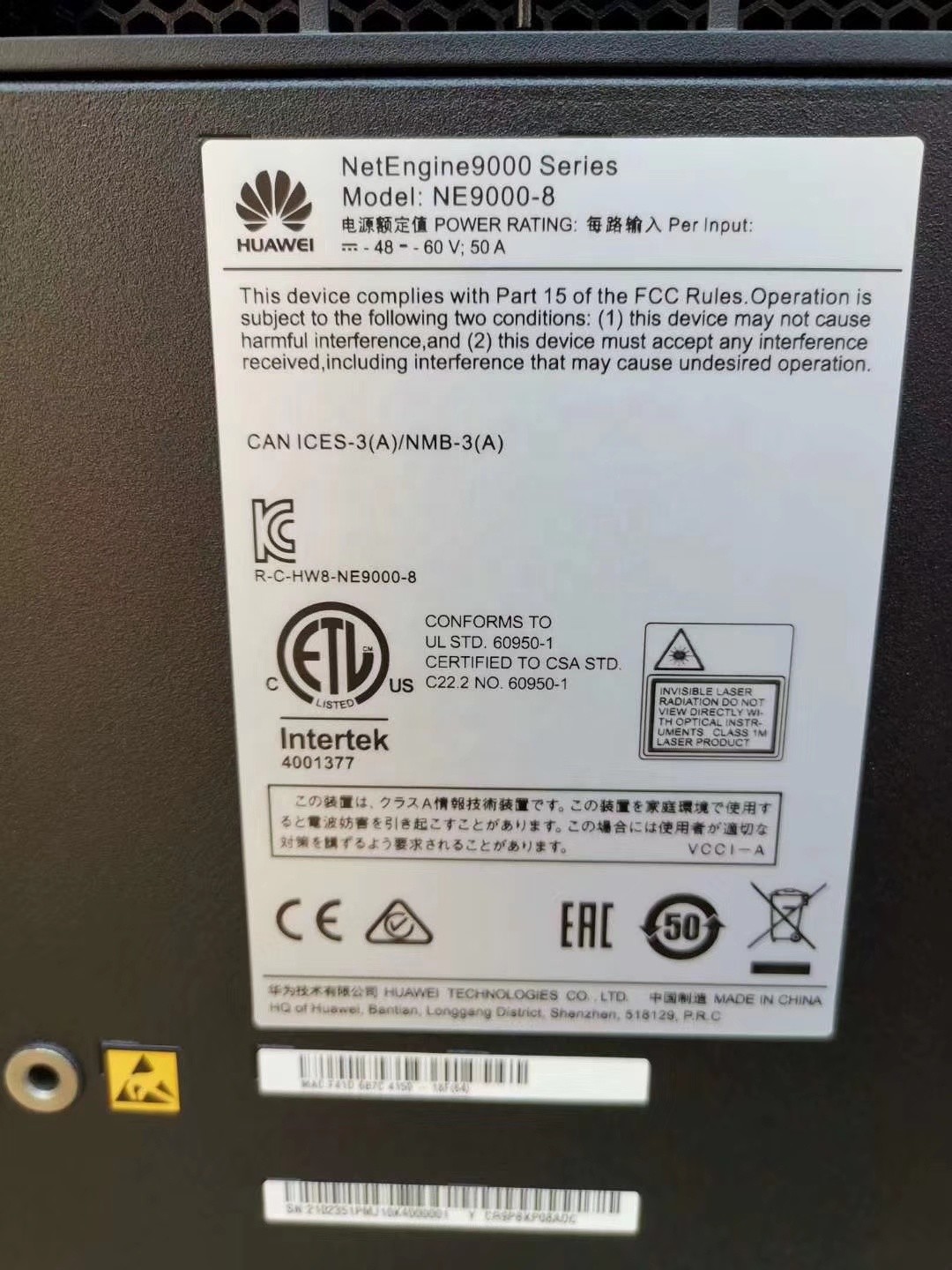

DC input voltage	-40 V to -72 V (-48 V/-60 V) 192 V to 400 V (240 V/380 V)
AC input voltage	180 V to 264 V (200 V to 240 V)
MTBF	18.87 years
MTTR	0.5 hours
Availability	100.00%
Slot quantity	18 slots, including 2 MPU slots, 8 SFU slots, and 8 LPU slots.
Redundant MPUs	1:01
Redundant Switch fabrics	7+1

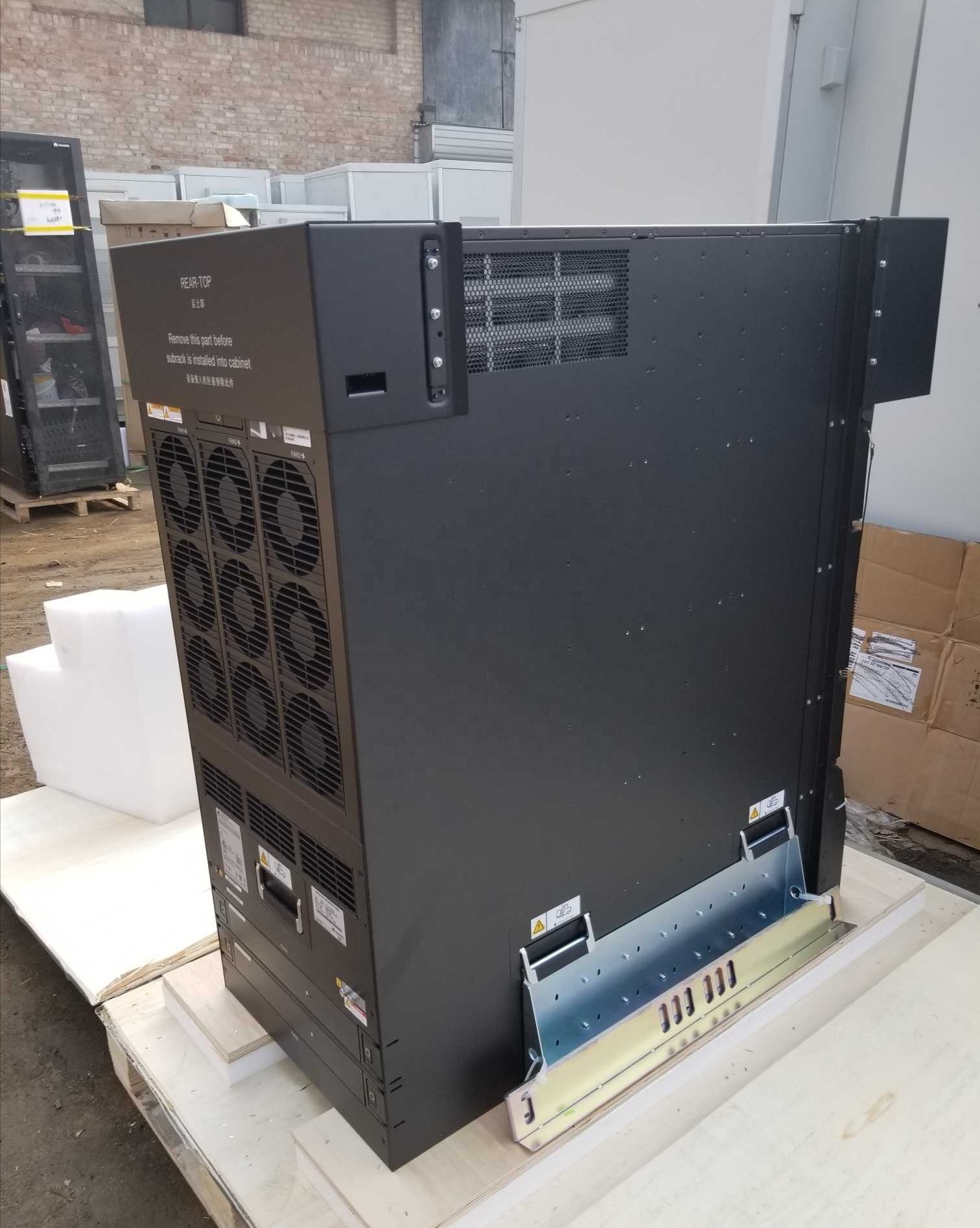

Redundant fans	The device has two fan partitions. The LPU area provides three fan modules in 2+1 backup mode. The SFU area provides two fan chassis in 1+1 backup mode.
Redundant power supply	[4T bundle] DC: 5+1 [4T bundle] AC: 4+4
Forwarding performance	5120 Mpps(LPUI-1T)
Switching capacity	83.78 Tbps
Operating temperature	Long-term: 0 °C to 40 °C Short-term: -5 °C to +50 °C Restriction on the temperature variation rate≤ 30 °C/hour
Storage temperature	-40 °C to 70 °C (-40°F to 158°F)
Relative operating humidity	Long term: 5% to 85% RH, non-condensing Short term: 5% to 95% RH, non-condensing
Relative storage humidity	5% to 95% RH, non-condensing
Long-term operating altitude	≤ 4000 m (If the altitude is between 1800 m and 4000 m, the device operating temperature must decrease by 1 ºC each time the altitude increases by 220 m.)
Storage altitude	Lower than 5000 m (16404 ft)
