Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | UMG8900 Boards |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | ≥ 48 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, POE, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |
| Model: | UMG8900 Boards | Port: | Shenzhen |
| High Light: | UMG8900 SCMU Huawei USG Firewall,SSM-32 Frame Huawei USG Firewall,128Gbps UMG8900 Boards |
||

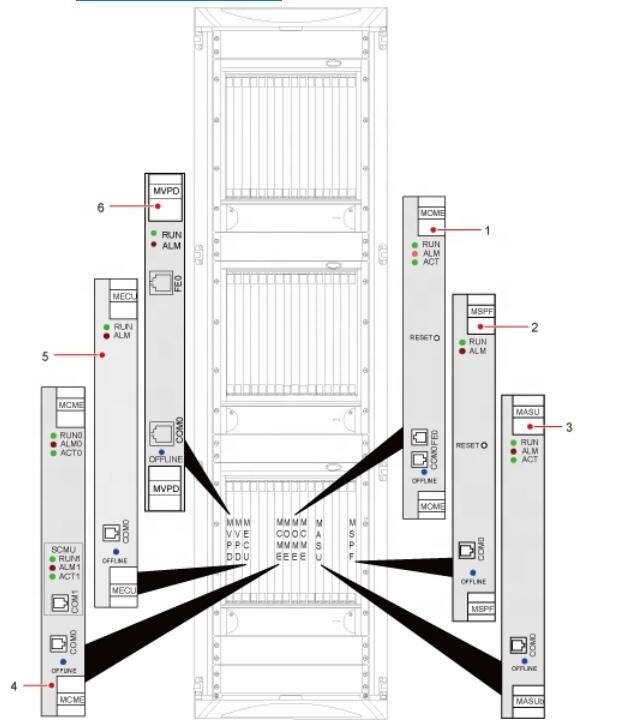

UMG8900 SCMU in the SSM-32 frame
The UMG8900 converts service bearers, enables interworking between bearers, and processes service stream formats. It is a core network device in global system for mobile communications solutions of Huawei. It can help carriers to build a low-cost, profitable, and future-oriented communication network.
The UMG8900 provides powerful networking functions and abundant services. It can serve as various functional entities to meet networking requirements of carriers.
The UMG8900 is oriented to:
The UMG8900 can network with the MGC of Huawei to support various basic, supplementary, and value-added services in the traditional GSM network. In addition, new services can be introduced quickly and easily due to the separated architecture of the UMG8900.
Table 1 lists the service processing capability when the UMG8900 with SSM-256/SSM-32 frames serves as a service bearer device in a global system for mobile communications (GSM)/universal mobile telecommunications system (UMTS) local exchange.
|
Item |
Specification |
|---|---|
|
Traffic |
GSM all-TDM networking: 70 kErl Other networking modes: 80 kErl |
|
BHCA |
GSM all-TDM networking: 4200 k Other networking modes: 4800 k |
Table 2 lists the service processing capability when the UMG8900 with only SSM-160 frames serves as a service bearer device in a GSM/WCDMA/TD-SCDMA local exchange.
|
Item |
Specification |
|---|---|
|
Traffic |
Local exchange: single frame (one SSM-160 frame); all networking modes: 16 kErl Two frames (two SSM-160 frames); GSM all-TDM networking: 35 kErl; Other networking modes: 40 kErl Three frames (three SSM-160 frames); GSM all-TDM networking: 55 kErl; Other networking modes: 80 kErl |
|
BHCA |
Single frame (one SSM-160 frame); all networking modes: 1900 k Two frames (two SSM-160 frames); GSM all-TDM networking: 4200 k; Other networking modes: 4800 k Three frames (three SSM-160 frames); GSM all-TDM networking: 6600 k; Other networking modes: 9600 k |
Table 3 lists the service processing capability when the UMG8900 with SSM-256/SSM-32 frames serves as a service bearer device in a GSM/WCDMA/TD-SCDMA gateway or tandem exchange.
|
Item |
Specification |
|---|---|
|
Traffic |
110 kEr |
|
BHCA |
5,400,000 |
Table 4 lists the service processing capability when the UMG8900 with only SSM-160 frames serves as a service bearer device in a GSM/WCDMA/TD-SCDMA local exchange/tandem exchange.
|
Item |
Specification |
|---|---|
|
Traffic |
Single frame (one SSM-160 frame): 16 kEr Two frames (two SSM-160 frames); all-TDM networking local exchange: 35 kErl; Other networking modes: 40 kErl Three frames (three SSM-160 frames); all-TDM networking: 55 kErl; Other networking modes: 80 kErl |
|
BHCA |
Single frame (one SSM-160 frame); all networking modes: 1900 K Two frames (two SSM-160 frames); GSM all-TDM networking: 4200 k; Other networking modes: 4800 k Three frames (3 SSM-160 frames); GSM all-TDM networking: 6600 k; Other networking modes: 9600 k |
The UMG8900 supports signaling adaptation and transfer from TDM to IP based on the standard Signaling Transport (SIGTRAN) protocol. Table 5 lists the related technical specifications.
|
Item |
Specification |
|
|---|---|---|
|
Number of MTP2 links |
64 kbit/s |
16 links per UG01MSPF or UG02MSPF 42 links per UG03MSPF 120 links per UG04MSPF |
|
2 Mbit/s |
1 link per UG01MSPF or UG02MSPF 2 links per UG03MSPF 4 links per UG04MSPF |
|
|
Number of MTP3 links |
64 kbit/s |
16 links per UG01MSPF or UG02MSPF 42 links per UG03MSPF 120 links per UG04MSPF |
|
2 Mbit/s |
1 link per UG01MSPF or UG02MSPF 2 links per UG03MSPF 4 links per UG04MSPF |
|
|
Number of Q.921 links |
64 kbit/s |
128 links per UG01MSPF or UG02MSPF 128 links per UG03MSPF 252 links per UG04MSPF |
