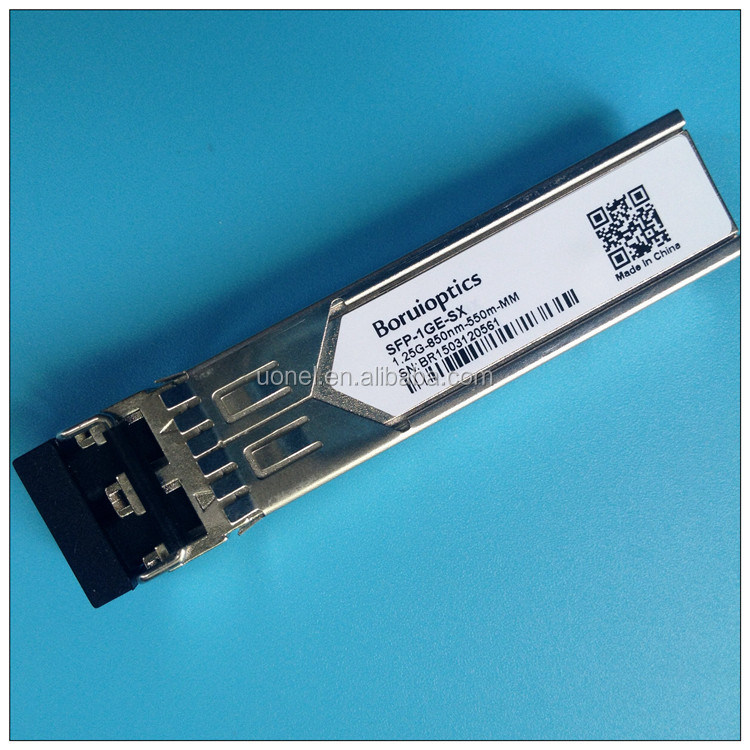

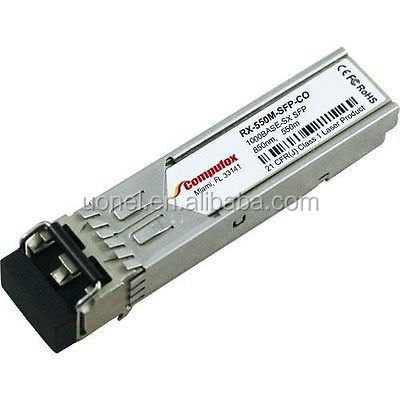

Juniper RX-550M-SFP,1-port 550M GE SFP Adapter: provides (1) small form-factor pluggable (SFP) Gigabit Ethernet multimode

Overview

The SFP transceivers are high performance, cost effective modules supporting data-rate of1.25Gbps and 550m transmission distance with MMF.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser

safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

• Data-rate of 1.25Gbps operation
• 850nm VCSEL laser and PIN photo detector
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring:
• Internal Calibration or External Calibration
• 550m transmission with 50/125µm MMF
• 300m transmission with 62.5/125µm MMF
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:
• Standard : 0 to +70°C
• Extended : -20 to +85°C
• industrial : -40 to +85°C

Parameter

Application

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems
