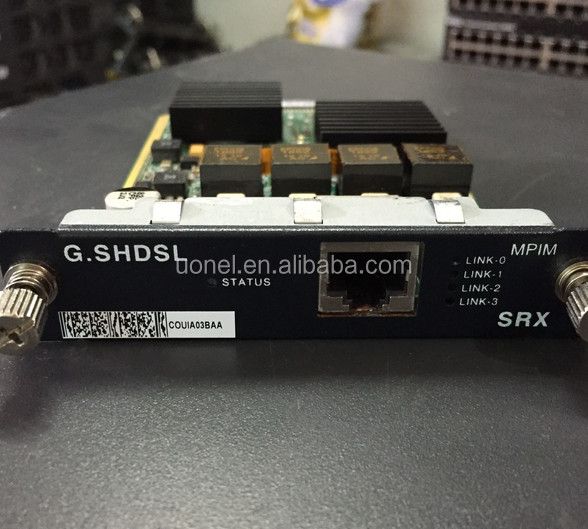

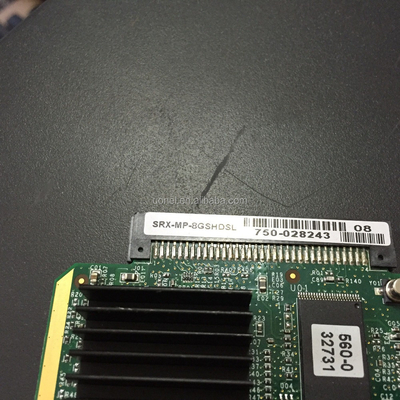

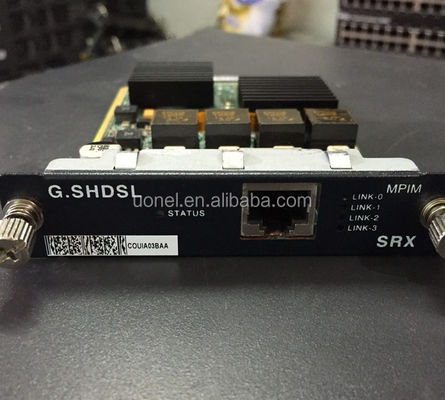

Juniper Networks SRX-MP-8GSHDSL
8-WIRE (4-PAIR) G.SHDSL MINI-PHYSICAL INTERFACE MODULE (Mini -PIM)
Full working order
364 day warranty
Product Description
Juniper Networks® G.SHDSL Mini-PIM provides the physical connection to G.SHDSL
network media types, receiving incoming packets from the network and transmitting
outgoing packets to the network. The G.SHDSL Mini-PIM forwards packets for processing
while performing framing and line speed signaling. The 8-wire RJ-45 port on the PIM can
be split into 4 RJ11 telephone ports using the supplied adapter.
The G.SHDSL mini-PIM has interoperability with the following DSLAM vendor products.
For the complete and latest list, please refer to Juniper Networks technical publications.
G.SHDSL DSLAM Chips et
Adtran ATM DSLAM [Annex A] Infineon
Paradyne IP DSLAM [Annex A and Annex B] Broadcom
Lucent DSLAM Globspan
Cisco DSLAM Globspan
ZyXel IES-5005 IP DSLAM Infineon
Features and Benefits
• 2-wire (4-port 2-wire) mode, 4-wire (2-port 4-wire) mode, and 8-wire (1-port 8-wire)
mode support
• Annex A, Annex B, Annex F, and Annex G support
• Virtual circuits per mini-PIM (8 maximum)
• ATM-over-G.SHDSL framing
• ATM class-of-service (CoS) support
• ATM Operation, Administration, and Maintenance (OAM) support
• Dying Gasp support
• Multilink Point-to-Point Protocol (MLPPP) support on single interface and single link
fragmentation and interleaving (LFI)
• Wetting current support
• Maximum transmission unit (MTU) size of 1496 bytes
• Noise margin support
• Point-to-Point Protocol over ATM (PPPoA) and Point-to-Point Protocol over Ethernet
(PPPoE) over ATM encapsulation support
• Local loopback mode support
Product Overview
The 8-wire (4-pair) G.SHDSL Mini-
Physical Interface Module (Mini-PIM)
is for use with the Juniper Networks
SRX200 line, which consists of Juniper
Networks SRX210 Services Gateway,
SRX220 Services Gateway, and SRX240
Services Gateway secure router
products. This mini-PIM supports Annex
A, Annex B, Annex F, and Annex G with
maximum speed up to 22.784 Mbps.
Product ships with an RJ45 to 4-port (2-wire) RJ11 adapter.
G.SHDSL DSLAM Chips et BENEFIT
8-wire (4-pair)
G.SHDSL support
Same module can
be used in 8-wire,
4-wire, or 2-wire
environments.
Provides investment
protection when
upgrading WAN
connectivity.
Dying Gasp support Notifies the DSLAM,
in the event of power
loss, that Juniper
Networks SRX Series
Services Gateways for
the branch are about
to go offline.
Notifies the network
whenever unplanned
power outages occur.
SpecificationsG.SHDSL
Mini-PIM Data Rates
ANNEXES OPERATI NG MODES DATA RATE S (MBPS)
Annex A and Annex B 2-wire (4 port 2-wire) 0.192 to 2.304
4-wire (2 port 4-wire) 0.384 to 4.608
8-wire (1 port 8-wire) 0.768 to 9.216
Annex F and Annex G 2-wire (4 port 2-wire) 0.768 to 5.696
4-wire (2 port 4-wire) 1.536 to 11.392
8-wire (1 port 8-wire) 3.072 to 22.784
Minimum Software Releases
• Juniper Networks Junos® operating system version 10.0: The
G.SHDSL Mini-PIM with 8-wire functionality is supported on the
SRX200 line.
Dimensions and Weight (W x H x D)
• 3.75 x 0.8 x 5.9 in (9.5 x 2.0 x 14.5 cm)
• 0.33 lb
Environmental
• Operating temperature: 0° to 40° C
• Storage temperature: -40° to 70° C
• Relative humidity: 5% to 90% noncondensing
Diagnostics
Loopbacks
• Local loopback
Network Alarms
• Loss of signal defect
• Loss of sync word (LOSW)
Error Counters
• LOSW errors
• Cyclic redundancy check (CRC) errors
• Segment anomaly (SEGA) errors
• ES (errored seconds)
• SES (severely errored second)
• UAS (unavailable seconds)
LEDs
PIM LEDs indicate port status with the following LED states:
• STATUS – Green on means that port is online with no alarms
or failures; amber blinking means that port is initializing; red on
means that port has detected an alarm.
• LINE LEDs 0 -3 – Green is link active, blinking is training, off is
link inactive.
Management Capabilities
• Telnet/Console/Juniper Networks J-Web Software: Remote and
local configuration, monitoring, and troubleshooting
Standards and Compliance
Safety
• CAN/CSA-C22.2 No. 60950-1 Information Technology
Equipment - Safety
• UL 60950-1 Information Technology Equipment - Safety
• EN 60950-1 Information Technology Equipment - Safety
• IEC 60950-1 Information Technology Equipment - Safety
EMC (Emissions)
• FCC Part 15 Class A (USA)
• EN 55022 Class A (Europe)
• AS 3548 Class A (Australia)
• VCCI Class A (Japan)
• BSMI Class A (Taiwan)
Immunity
• EN 55024
• EN-61000-4-2 ESD
• EN-61000-4-3 Radiated Immunity
• EN-61000-4-4 EFT
• EN-61000-4-5 Surge
• EN-61000-4-6 Low Frequency Common Immunity
• EN-61000-4-11 Voltage Dips and Sags
