Features Gallery Product Description Request A Quote

Features

Specifications

Output Power: >500W

Output Type: Single

Output Frequency: 45-65

Output Current: -48

Input Voltage: 220V

Size: 2000*600*600MM

Port: Shenzhen

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: ZTE ZXDU68

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

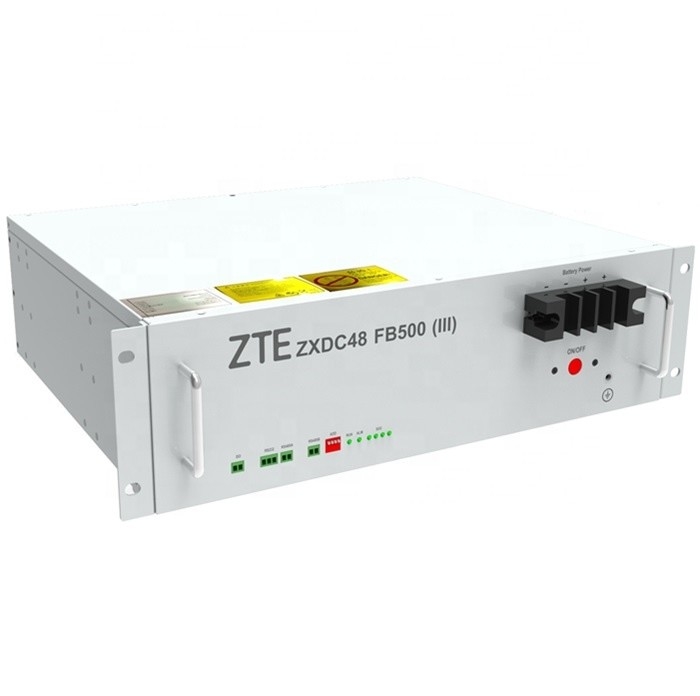

ZTE ZXDC48 FB500 (III) series lithium-ion battery

Product Description

ZTE ZXDC48 FB500 (III) series lithium-ion battery

Battery - ZTE Enterprise

3U height, support standard 19 inches rack or cabinet installation.
High energy density. Comparing with the same capacity lead-acid battery, FB500 lithium-ion battery can save more than 60% weight and 10% volume.
Fast charge ability, the maximum charge current is up to 1.0C, and without floating charge, saving 80% charge time than traditional lead-acid battery.
Support large discharge current up to 1.0C.
Integrating with BMS(Battery Management System), The charging and discharging control mode is compatible with traditional Lead-acid battery
Front-wire design, the connected wired is simple, and easy for installation and maintenance.
Supports multiple strings parallel connection, and the quantity of battery connected is up to 16 banks

ZXDC48 FB500 series Lithium-ion battery technical value

Parameters	Description
Dimension	483410132(3U) (WDH mm)
Weight	<30kg
Rated Capacity	50Ah (C3,25℃)
Energy Storage	2400Wh
Charge Voltage Range	-53.5V ~ -56.4 V
Discharge Voltage Range	-40V ~ -53.2 V
IP Level	IP20
Design Life	10 years

Warranty

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Our Services

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
